japanese practice shogo aratani architect & associates has shared with us images of ‘trapezoid’, a multi-storey ceramic atelier and dwelling for a young family of three in hyogo, japan. situated on a sloping plot, the design works around a set of strict local building regulations to create a trapezoidal floor plan that incorporates elements of the outdoors into the interior.

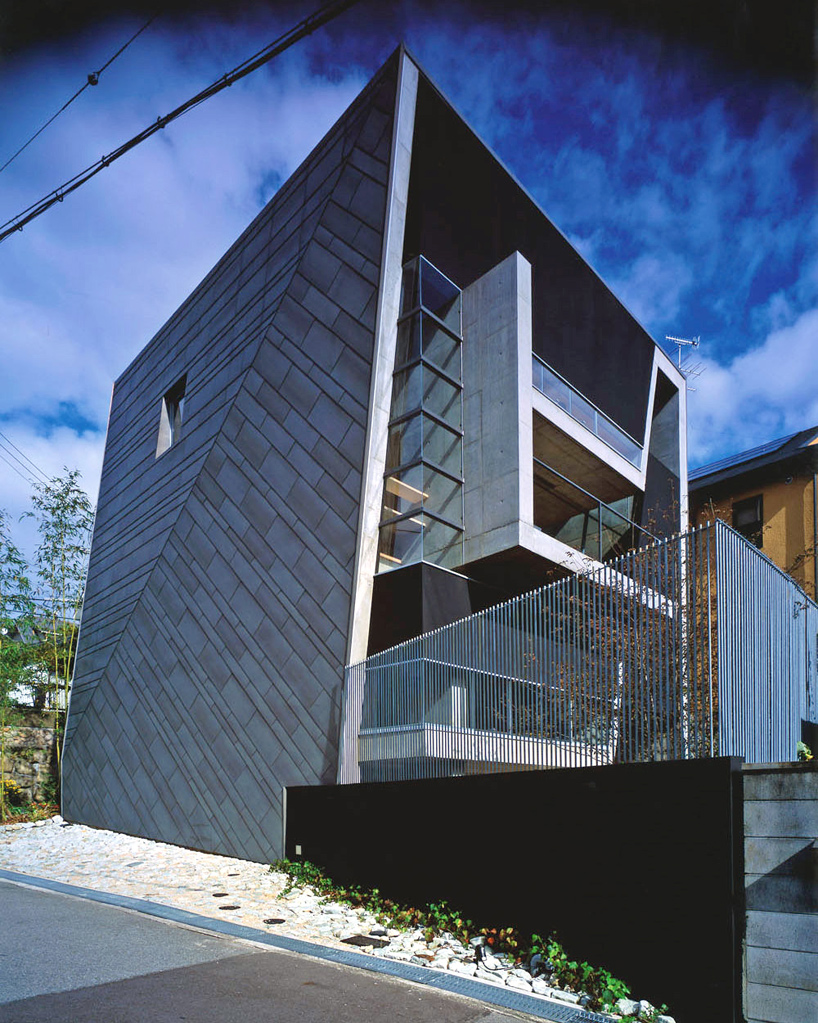

shogo aratani architect & associates: trapezoid street elevation image © kaori ichikawa







requiring a maximum built plot ratio of 40%, a wall setback of 2m from the road and 1m from the adjacent plot, the footprint of the residence was whittled down to a plan measuring 8 by 9m. as the volume rises, the trapezoid gradually shifts inwards to become a square, creating an angular ridge that forms the west-facing facade. the titanium-zinc alloy cladding of the exterior exaggerates this feature by changing the direction of its panels, resulting in a visually-dynamic elevation.

shogo aratani architect & associates: trapezoid interior view of entrance gallery image © kaori ichikawa





simple and pragmatic, the overall layout of the interior was determined by the requirements of the programs: the ground floor and basement levels were treated as a public zone with an open-space atelier that could serve as a light-filled gallery. the height differences across the site enabled the layered configuration to distinctly separate the atelier from the residential zone on the second and third floors. a sense of continuity and fluidity is established by a series of void spaces that vertically pierce through the house, allowing indirect natural daylight to filter down each level.

shogo aratani architect & associates: trapezoid atelier on basement level image © kaori ichikawa

shogo aratani architect & associates: trapezoid vertical void space through floors image © kaori ichikawa

shogo aratani architect & associates: trapezoid views of stairs images © kaori ichikawa

shogo aratani architect & associates: trapezoid display elements by stairs image © kaori ichikawa



shogo aratani architect & associates: trapezoid dining and living space image © kaori ichikawa



shogo aratani architect & associates: trapezoid view of living space from third floor image © kaori ichikawa



shogo aratani architect & associates: trapezoid schematic diagram

shogo aratani architect & associates: trapezoid (left) floor plan / level -1 (right) floor plan / level 0





shogo aratani architect & associates: trapezoid (left) floor plan / level +1 (right) floor plan / level +2





shogo aratani architect & associates: trapezoid sections





shogo aratani architect & associates: trapezoid sections





project info:



site area: 172.05 m2 building area: 68.00 m2 total floor area: 194.32 m2 structural system: reinforced concrete

consultant: TIS & PARTNERS general contractor: nishimura kenchiku kobo
