architecture firm SOM has unveiled ‘stereoform slab’, a concrete pavilion currently on view in chicago’s west loop. presented in partnership with the 2019 chicago architecture biennial, the structure is a to-scale prototype of a future building system made using advanced robotic fabrication techniques. ‘it is simultaneously an activation and an exhibition that illustrates a design method that reduces the carbon footprint of concrete construction,’ say the architects.

SOM's stereoform slab pavilion explores the potential of digital fabrication
all images © dave burk | SOM





the pavilion replicates and abstracts a single-story concrete bay found in high-rise construction to create a simple architectural expression. removed from its typical context, the structure exemplifies how digital fabrication can be leveraged in the building industry. the pavilion was designed by SOM’s interdisciplinary research team, and realized through industry partnerships with mchugh construction, real estate investment and development firm sterling bay, denmark-based odico construction robotics, and autodesk.

SOM's stereoform slab pavilion explores the potential of digital fabrication





the project envisions a more sustainable alternative to the ubiquitous urban concrete slab — the most common element in contemporary construction. SOM’s research reveals that 40-60% of a building’s carbon footprint results from the development of the concrete slab itself. with this sustainable fabrication technique of concrete formwork using advanced robotics, the amount of material used and waste generated is minimized, with an approach that uses 20% less concrete than a conventional system, and results in a 20% carbon reduction.

SOM's stereoform slab pavilion explores the potential of digital fabrication





‘this pavilion demonstrates the exciting potential for design, technology, and building collaborations to make a significant impact on the way we approach large-scale construction,’ explains scott duncan, SOM design partner. ‘this is particularly important as we consider the ongoing development of urban environments and therefore, the increasingly pressing need for sustainable solutions. the design of stereoform slab expresses a more intelligent allocation of material, evocative of forms in nature. when applied to the entirety of the built environment, this technology can pave the way to a more expressive, sustainable, and innovative future of architecture.’

SOM's stereoform slab pavilion explores the potential of digital fabrication

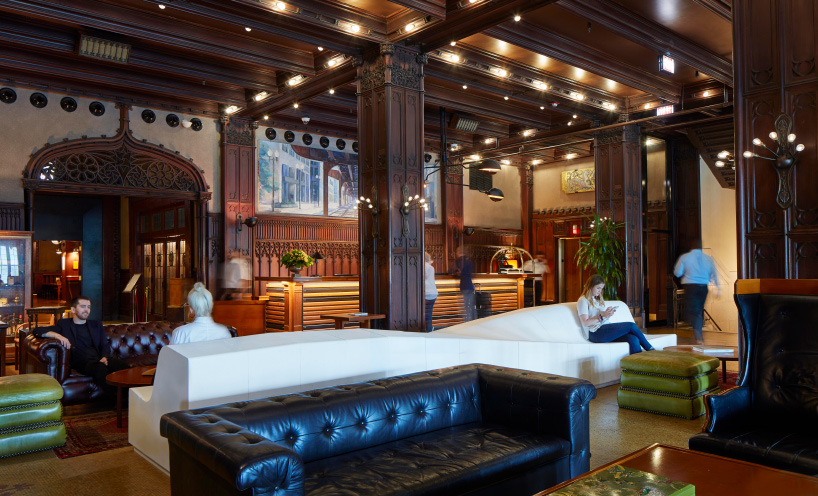

in addition, SOM has partnered with the chicago athletic association to install the ‘conversation bench’, a continuous surface that meanders through the hotel’s drawing room. this unified seat is created from one surface, one volume, and one movement of a robotic arm — a product of implicit form design and no-waste manufacture. the design provides a similar function as traditional furniture, but in a novel way that connects people to the space and to one another.

SOM's stereoform slab pavilion explores the potential of digital fabrication





‘stereoform slab and the conversation bench will create urban interventions in the city that are shaped by new methods of digital fabrication within the fields of construction and architectural design, and establish a temporary space for civic engagement,’ says SOM. ‘not only do these works illustrate possibilities for the future of construction, they also create inclusive civic spaces for visitors to re-imagine the ways in which we engage with each other and with the built and natural world.’

SOM's stereoform slab pavilion explores the potential of digital fabrication

SOM's stereoform slab pavilion explores the potential of digital fabrication

SOM's stereoform slab pavilion explores the potential of digital fabrication





project info:



name: stereoform slab
design: SOM
location: 1245 west fulton market, chicago, illinois
dates: september 19, 2019 – january 5, 2020
event: chicago architecture biennial 2019
photography: dave burk
