‘3D athletics track’ by subarquitectura in elda, alicante, spain all images courtesy subarquitectura photographer: david frutos ruiz







spanish practice subarquitectura has completed ‘3D athletics track’, a multifunctional course in elda, alicante, spain. taking the traditionally flat design to – literally – a whole new level, the 400 m track is manipulated to incorporate a changing room into the fabric of the project, resulting in a playful and hilly addition to the circuit.

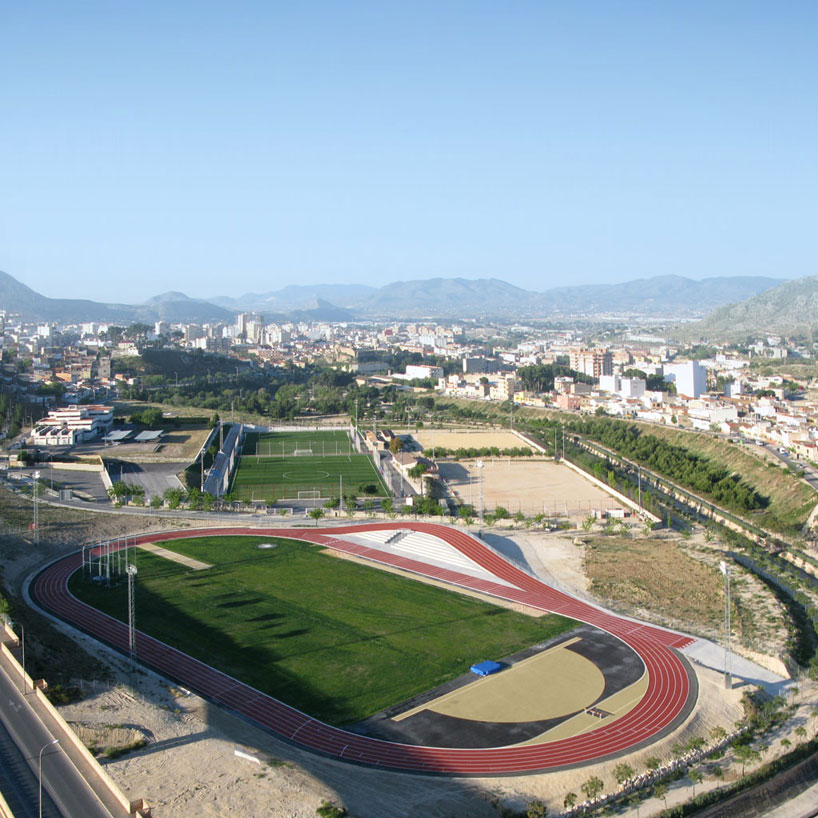

aerial view

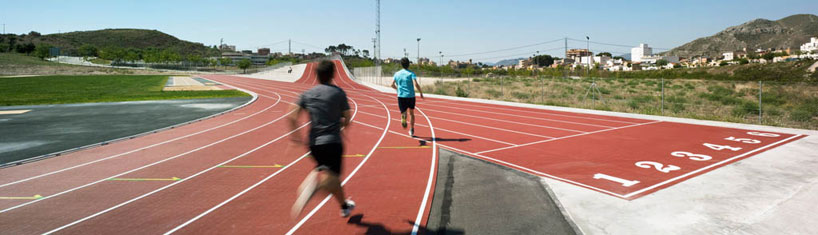

exploring the common style that has become a standard for running circuits around the world, the design adds an extended lane that takes off on a tangent from one of the long sides. this new arm is then raised vertically to create a a slight bluff that wraps around the spectators’ zone. the raised track also covers a small sheltered changing facility, which becomes an intuitively integrated element in the project.

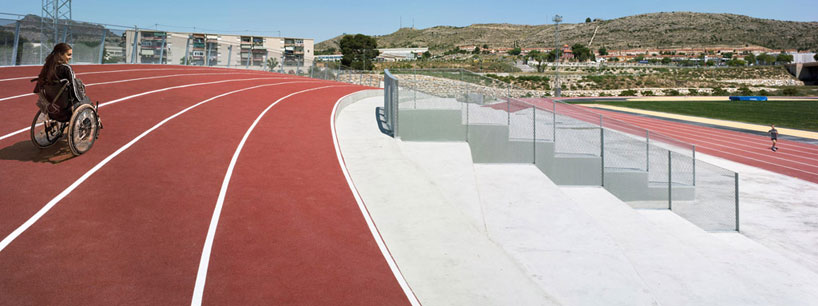

view towards the spectators zone

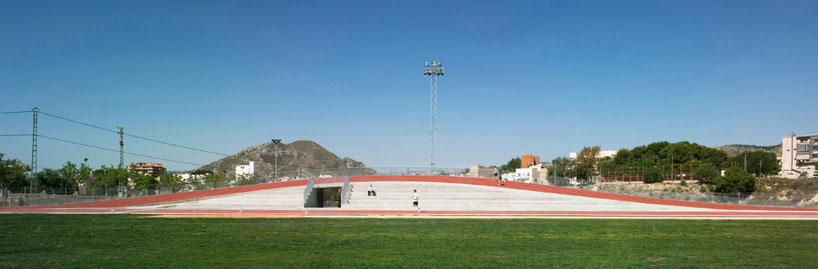

elevation from within the circuit

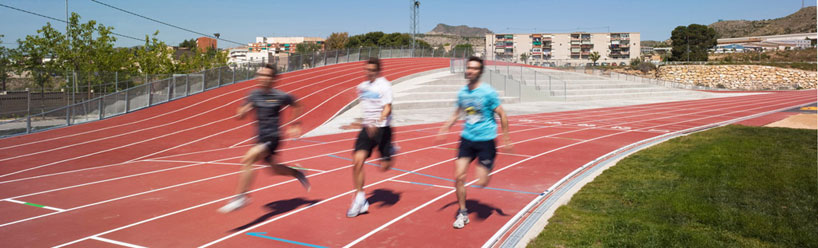

view of the raised track

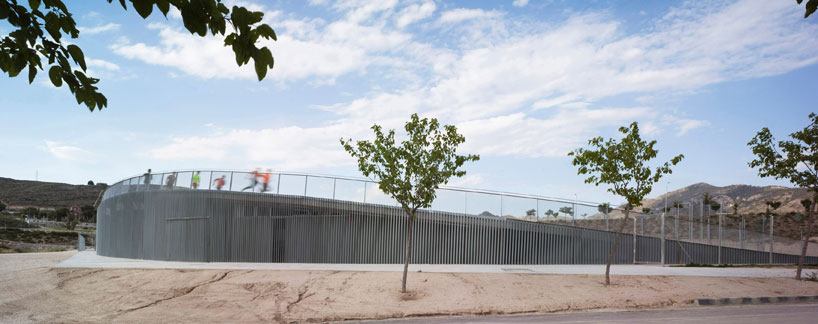

(left) inside the sheltered facility (right) raised track





spectators stand

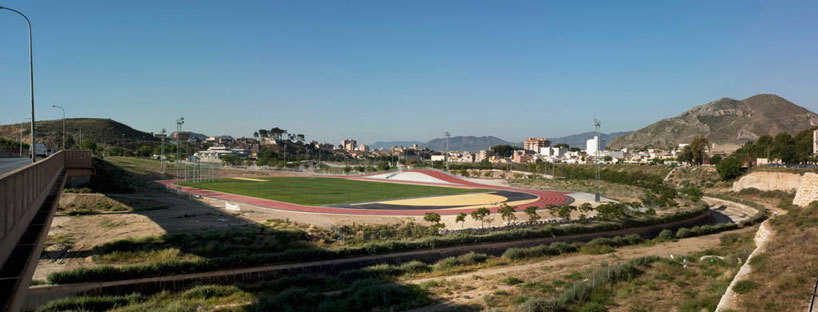

in context

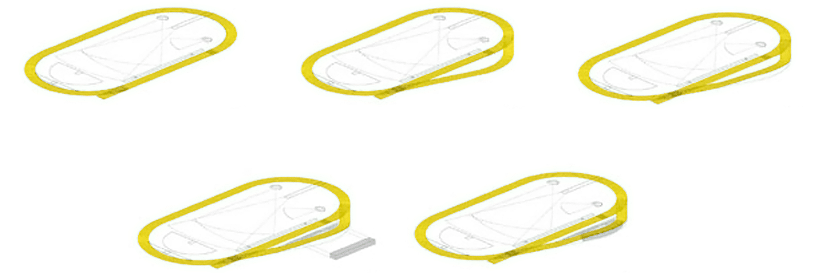

schematic diagram (top – left to right) standard track, extended track, three-dimensional (bottom – left to right) program, inserting of program into track

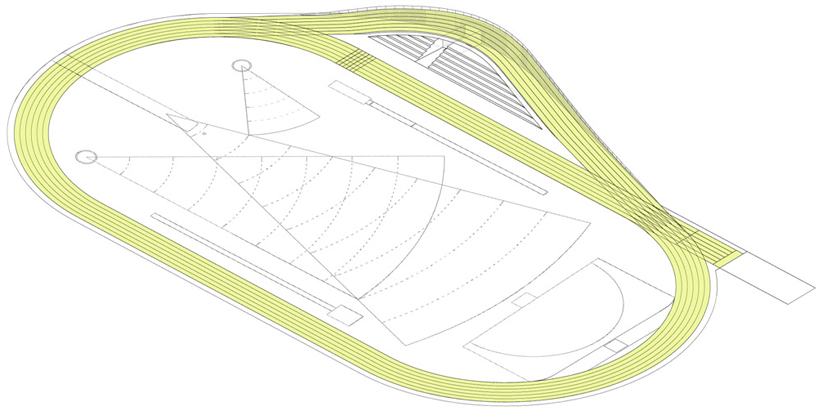

isometric





plan





elevation from inside the track





elevation from outside the track







elevations of raised track

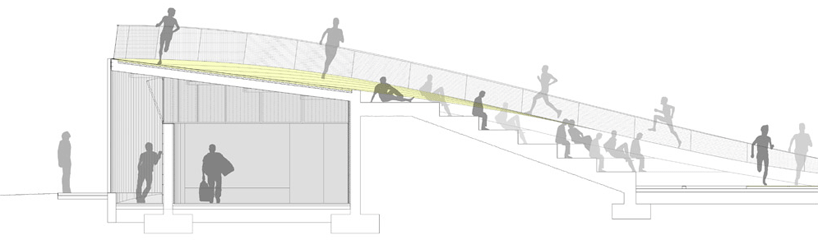

section through spectators’ stand







isometric of raised track







project info:

architects: andrés silanes, fernando valderrama, carlos bañón promotors: ayuntamiento de elda constructor: CYES
