terracotta tile screens clothe residential facade in india with a green curtain

terracotta tile screens clothe residential facade in india with a green curtain

A Threshold builds Terra Comb in india



Situated in a lively Bangalore neighborhood in India, Terra Comb is a service apartment designed by the local architectural firm A Threshold. The residential spacewith terracotta emphasizes both comfort and sustainability, catering primarily to students and professionals. Despite the urban constraints like crowded surroundings and limited space, the architectural layout cleverly integrates interconnected volumes and internal courtyards to maximize natural light indoors. Sections of the building’s facade are adorned with a perforated structure crafted from reclaimed Mangalore ridge tiles. Over time, this framework transforms into a green veil as climbing plants gradually grow, bringing a touch of nature all year round. The protective screen serves practical purposes such as shielding the interiors from the sun, as well as providing acoustic insulation, and offering a visual barrier.

terracotta tile screens clothe residential facade in india with a green curtain
all images by Anand Jaju, Studio Recall, Akhil, A Threshold





a model for sustainable buildings in the urban fabric

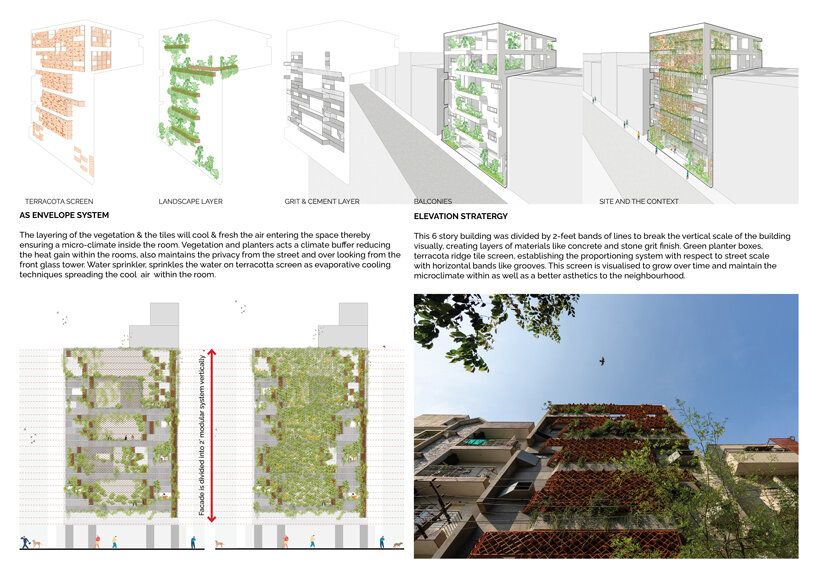

Sourced from a nearby factory, the tiles are cut into 45-degree profiles and assembled within a framework of mild steel plates at regular intervals, forming a buffer around the structure. Inspired by traditional methods of cooling,  Terra Comb by A Threshold incorporates a screen that operates on the principle of evaporative cooling. Similar to the cooling effect of water jugs in summer, this screen is integrated with a drip irrigation system. This system efficiently waters planter boxes while gently sprinkling water on terracotta tiles, effectively maintaining a refreshing indoor temperature. The lush vegetation grown along the façade fosters a biodiverse environment, attracting wildlife and setting an example for sustainable urban living.

terracotta tile screens clothe residential facade in india with a green curtain
the primary residents are students and professionals

terracotta tile screens clothe residential facade in india with a green curtain
the building envelope is constructed of reclaimed Mangalore ridge tiles

terracotta tile screens clothe residential facade in india with a green curtain
the reclaimed ridge tiles are sourced from a nearby factory

terra-comb-india-designboom-1800

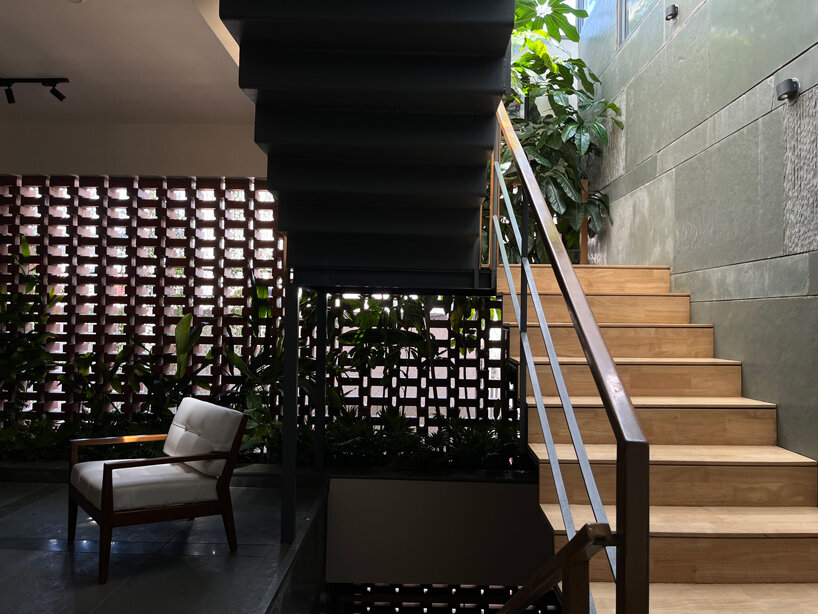

the interconnected volumes allow light to pierce the building

terracotta tile screens clothe residential facade in india with a green curtain

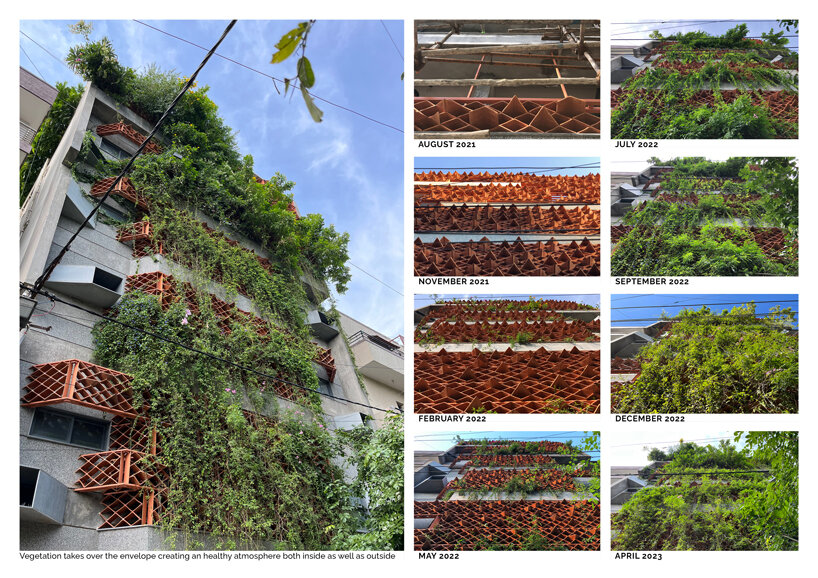

the vegetation growing along the façade creates a biodiverse environment, attracting birds and insects

terra-comb-india-designboom-18003

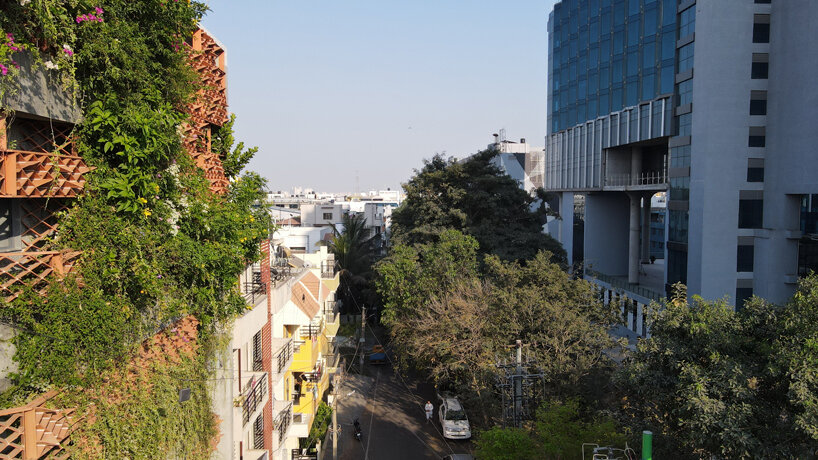

a sustainable model for urban living

1/17
1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1


project info:



name: Terra Comb

architects: A Threshold
design team: Avinash Ankalge, Harshith Nayak, Naresh Sivakoti, Karthik Krishna

location: Jaya Prakash Nagar, Bangalore, Karnataka, India

client: Prasad V.

completion year: 2022


site area: 265 sqm
gross built area: 1096 sqm

structural consultants: C. Ramkumar – Rays Consulting Engineers


civil contractors and builder: Prasad V.


landscape: Divakar and A Threshold

photography: Anand Jaju, Studio Recall, Akhil, A Threshold
