one plot, three houses



designed by architects mariela marchisio, cristián nanzer and germán margherit, ‘triptico’ is a residential building on the outskirts of córdoba, argentina. the project explores densification and encompasses three dwellings on one plot, just like a triptych or ‘triptico’.

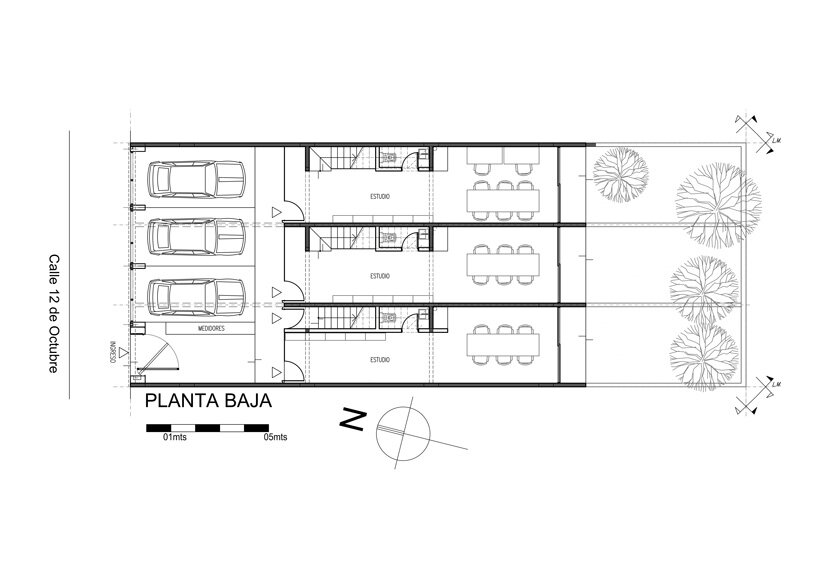

the site is located in the ducasse neighborhood, a traditionally commercial area that’s currently in the midst of urban transformation. the plot measures 10 meters wide and 25.7 meters deep. rather than stack the separate residences, the architects decided to shape long, narrow floor plans, with a shared garage at the front and private balconies and terraces at the rear.

three vertical houses compose concrete 'triptico' building in córdoba, argentina

images by gonzalo viramonte | @gonzaloviramonte





a building designed in section

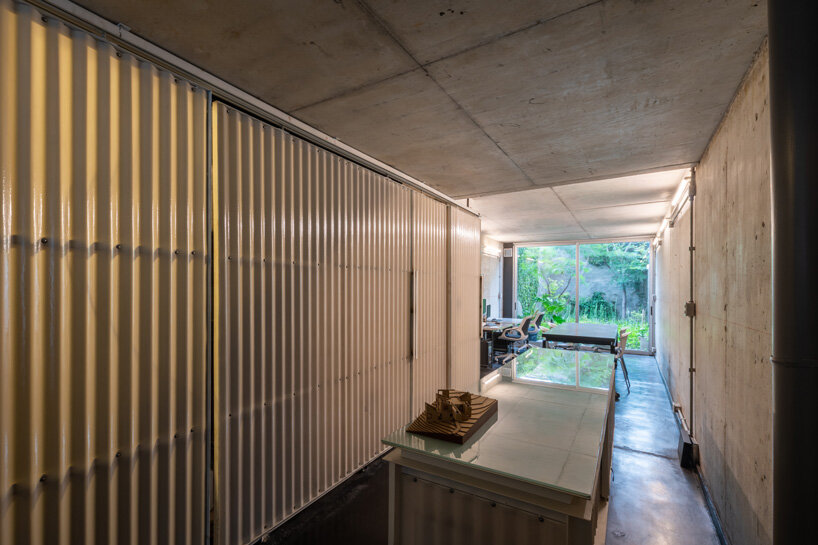

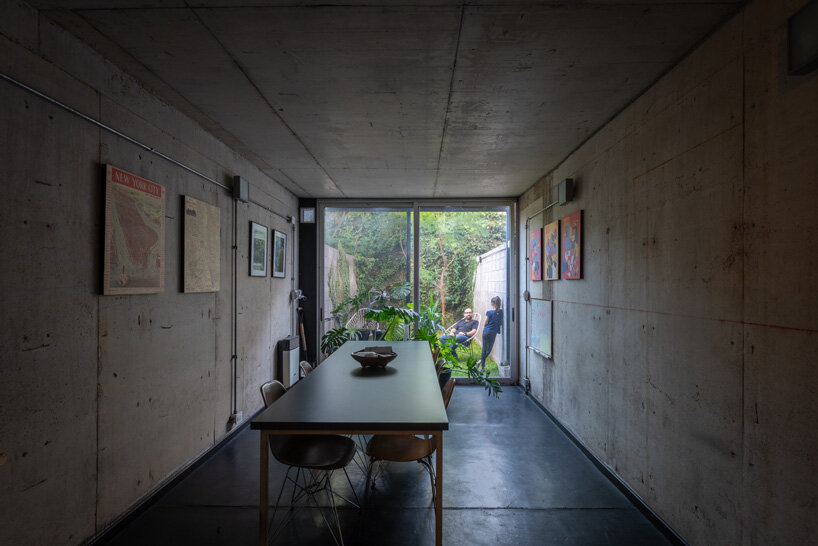

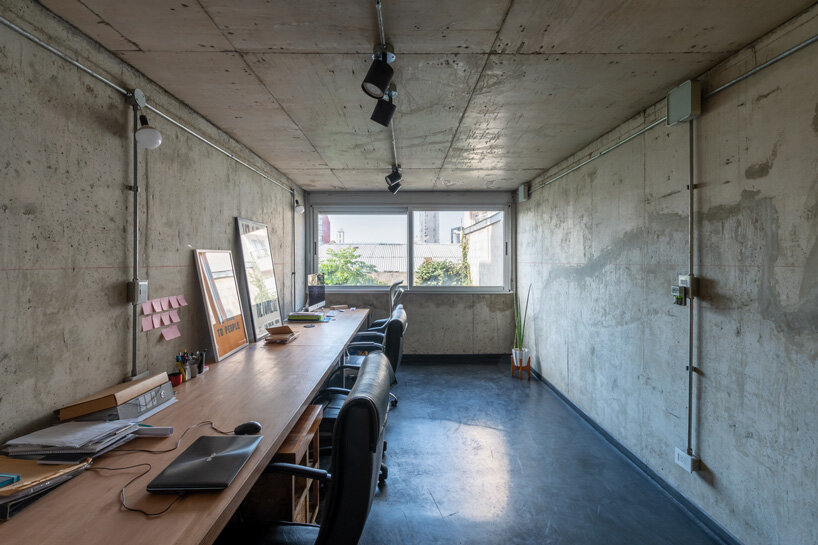

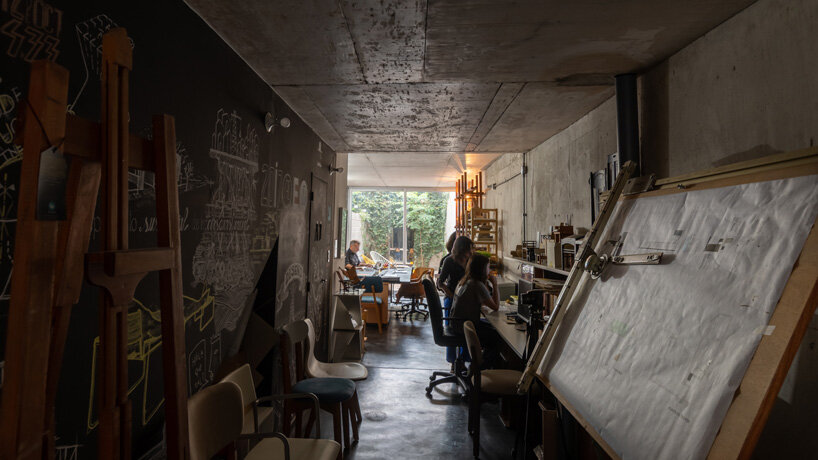

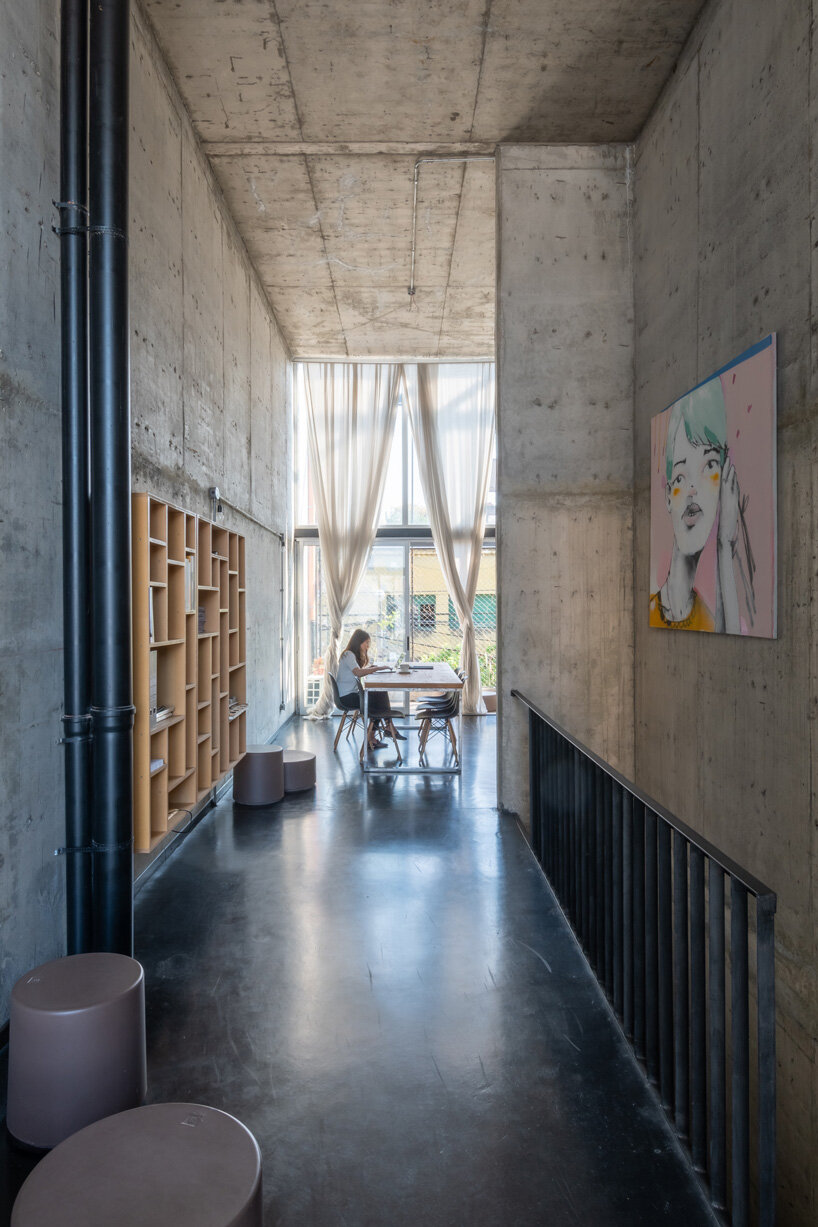

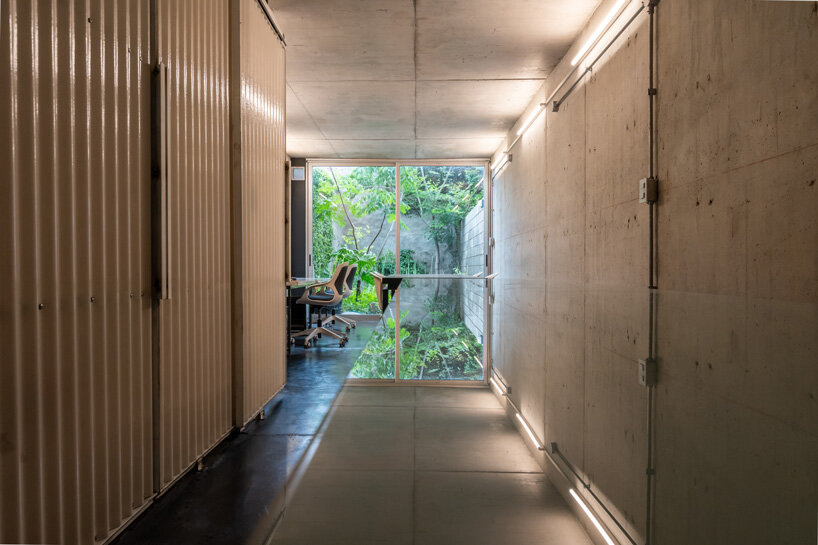

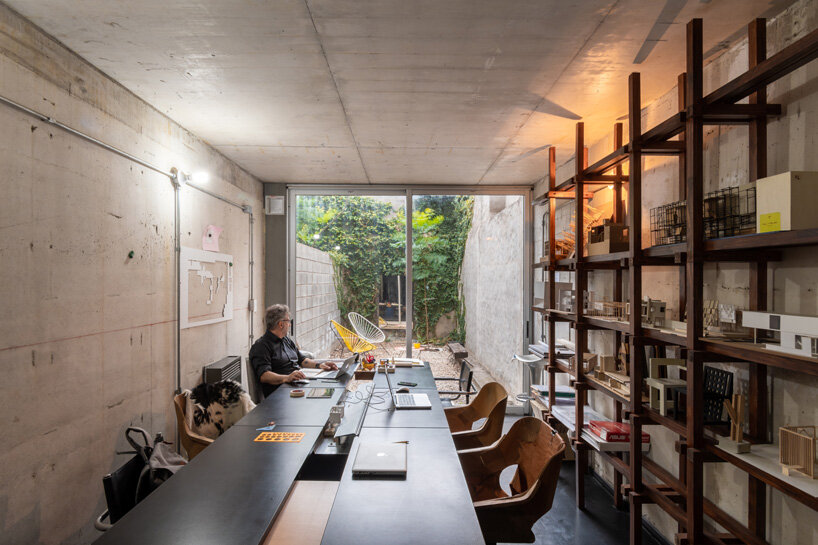

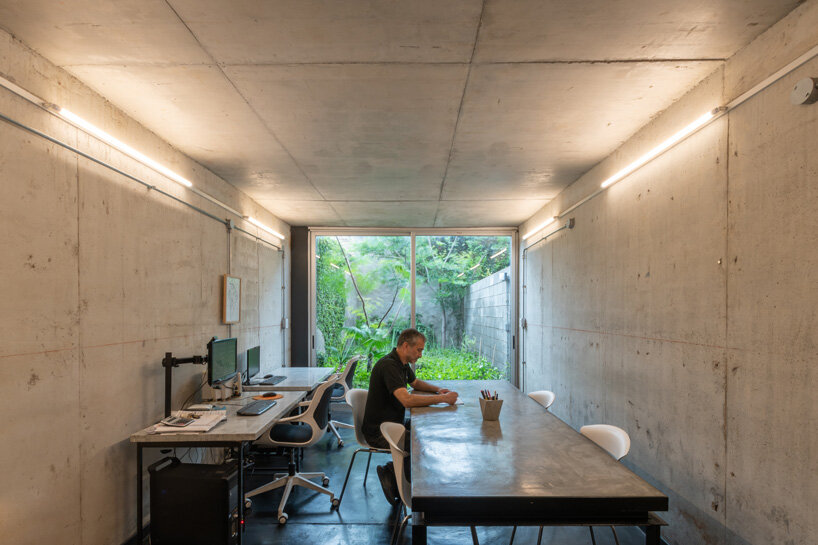

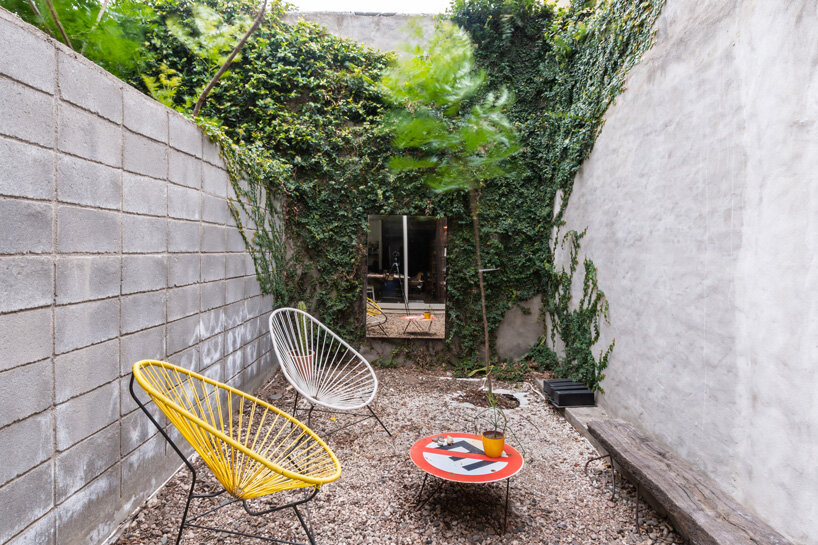

each residence occupies three storys and measures just 3.13 meters wide, a size which is compensated by the 18 meter length and the absence of internal divisions. the architects designed the building in section and adopted an unusual layout, putting studios and workspaces on the first floor, which open out to small courtyards.

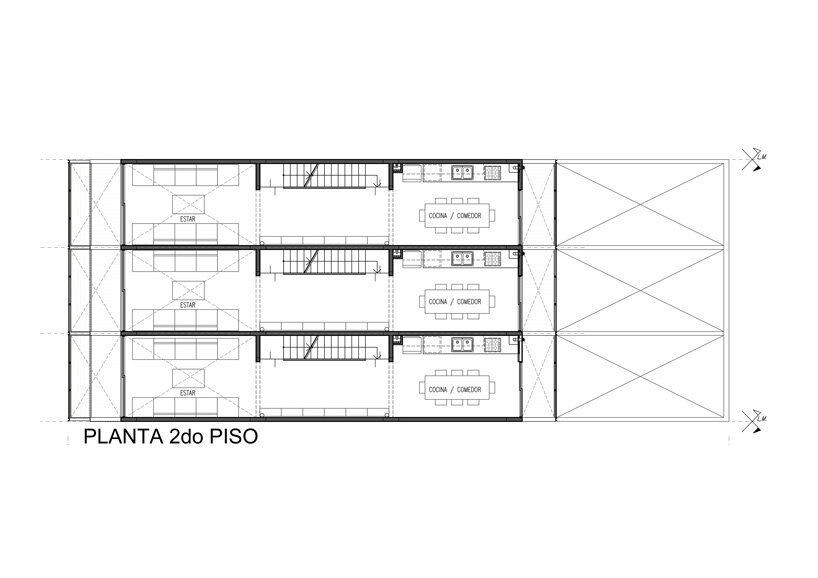

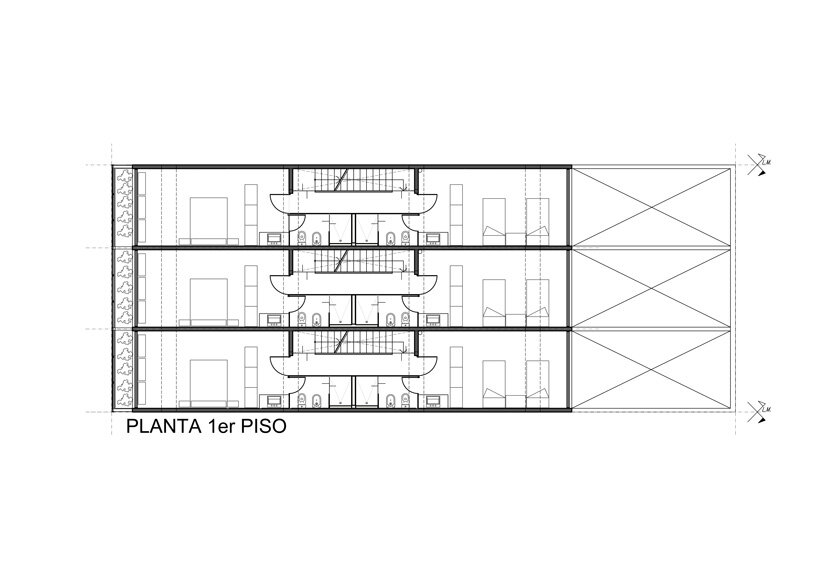

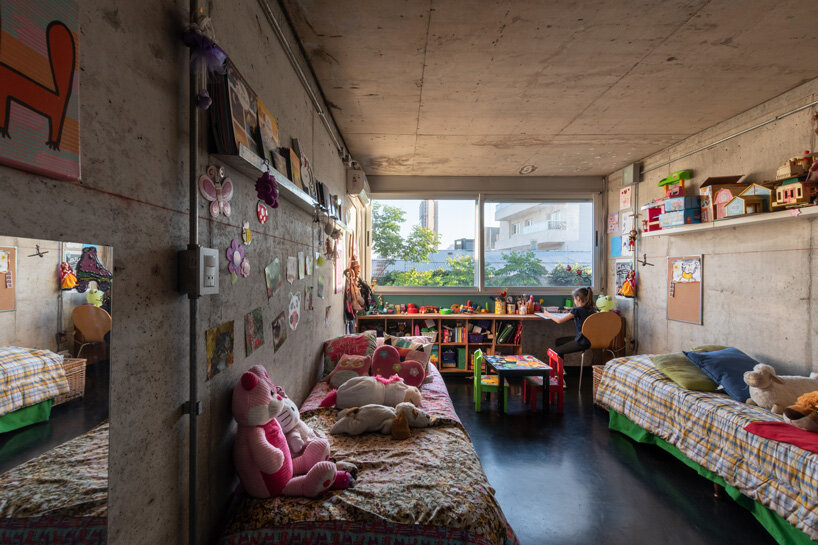

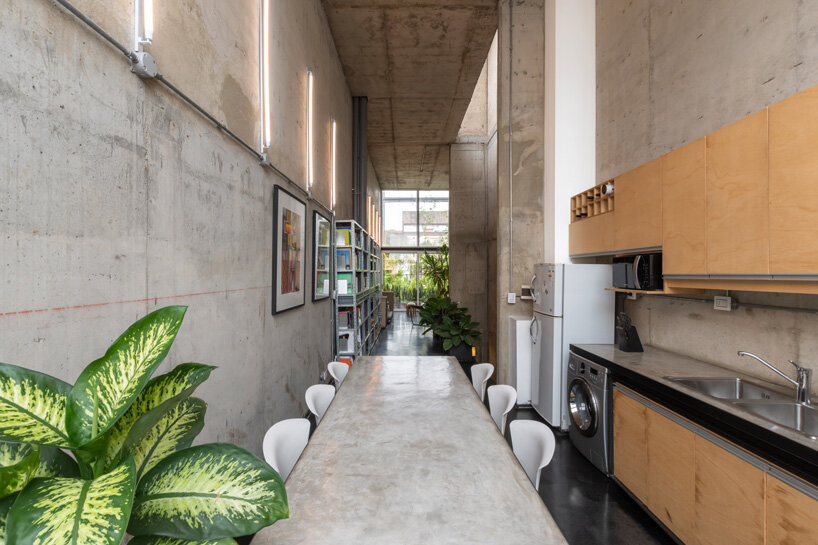

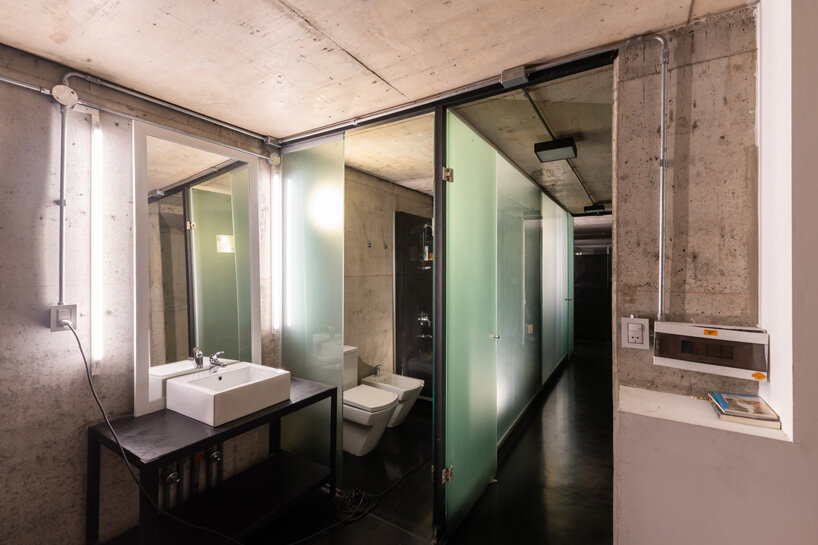

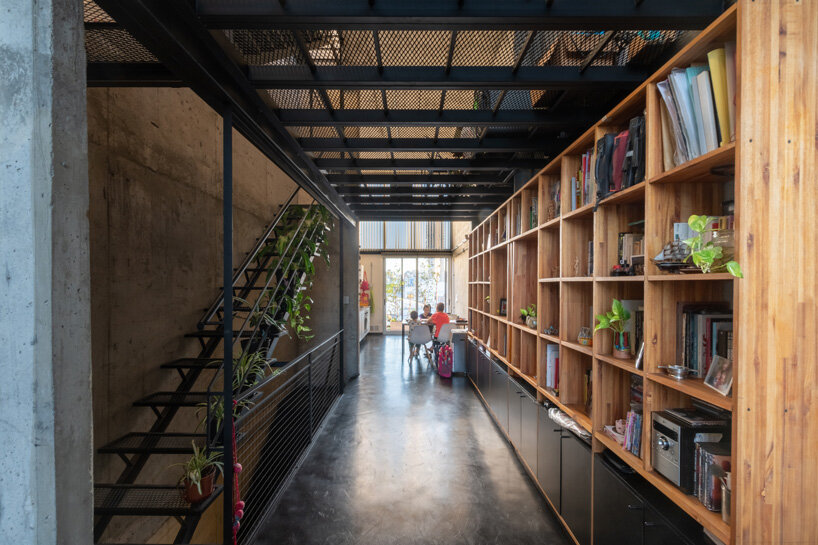

the second floor of each dwelling provides enough space for two ensuite bedrooms, although it can also be used as another workplace. the third level boasts lofty double-height ceilings and comprises the kitchen, living and dining areas. there’s also balconies and access to a shared rooftop terrace with views of the city center to the west.

three vertical houses compose concrete 'triptico' building in córdoba, argentina

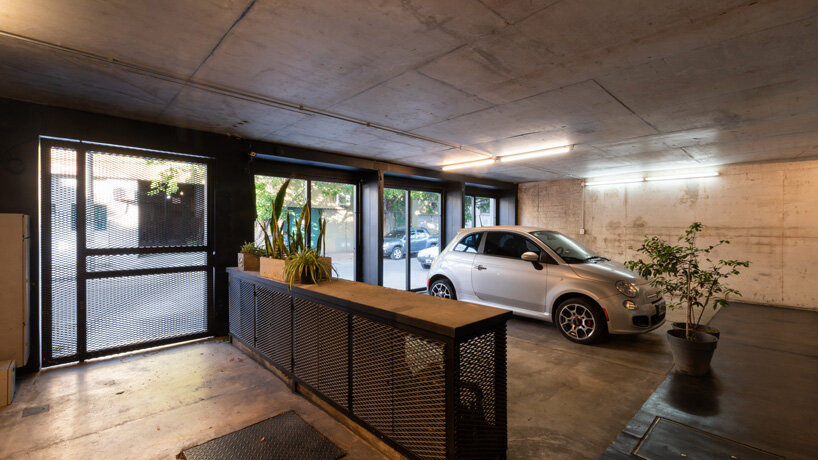

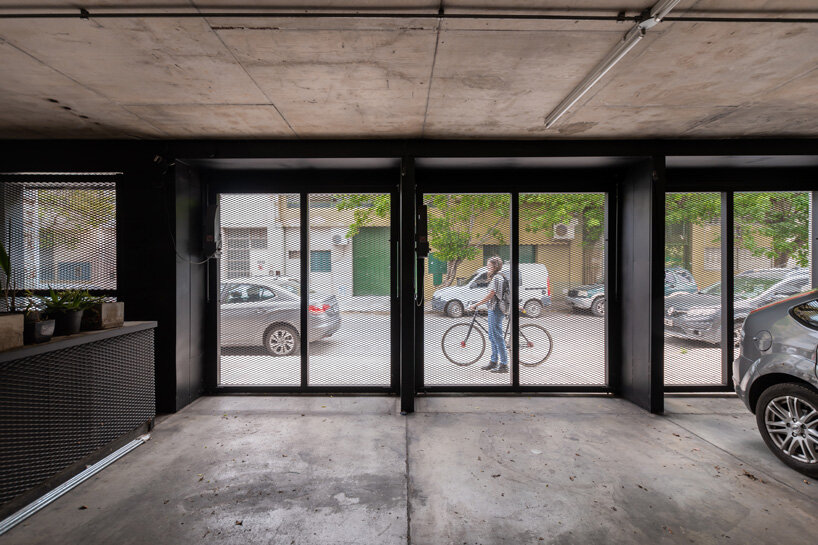

there’s a shared garage at first floor level





the reinforced concrete structure determines the dimensions of the architecture as well as its character. four longitudinal concrete walls define the three vertical spaces of each unit. on the façade, an inverted beam with a span of 10 meters allows for the open garage space, which can also be used for social events when the cars are taken away.

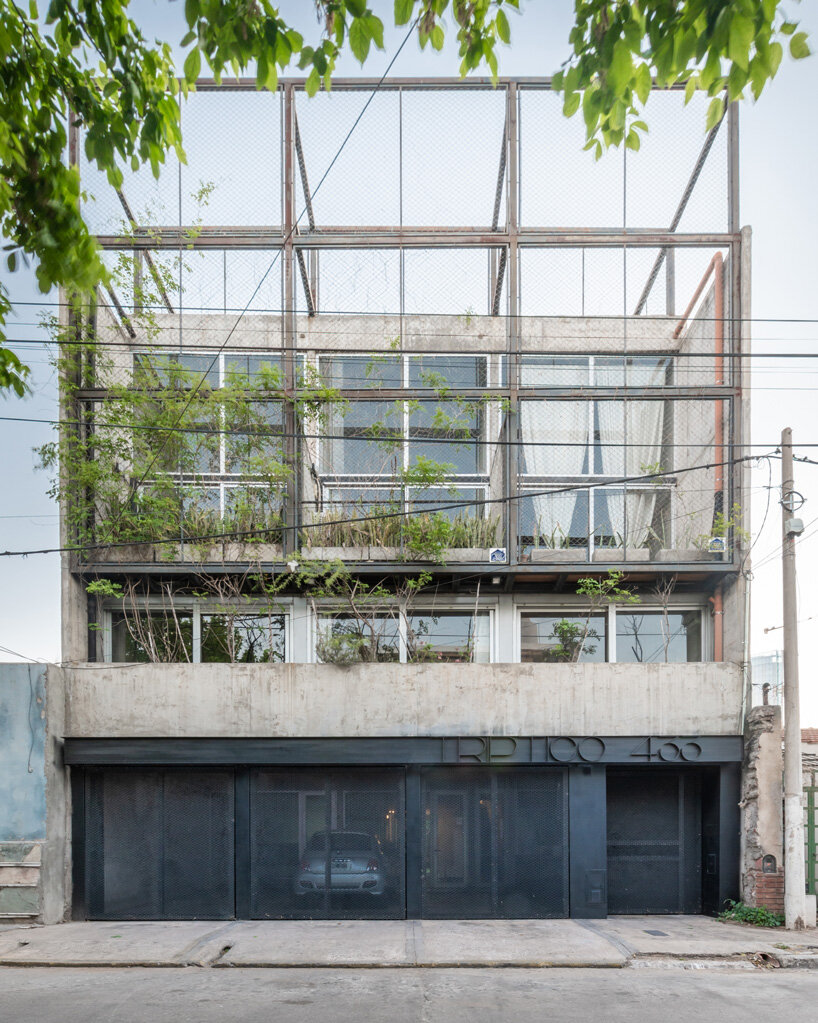

the north façade is materialized with a metal structure enclosed with galvanized woven wire mesh, which is covered with deciduous vines, mainly wisteria, which grow out of a continuous reinforced concrete box. overall, the architects describe triptico as a typological essay on densification in a degraded neighborhood area, but with a strategic location between the city and the nearby park of suquía river.

three vertical houses compose concrete 'triptico' building in córdoba, argentina

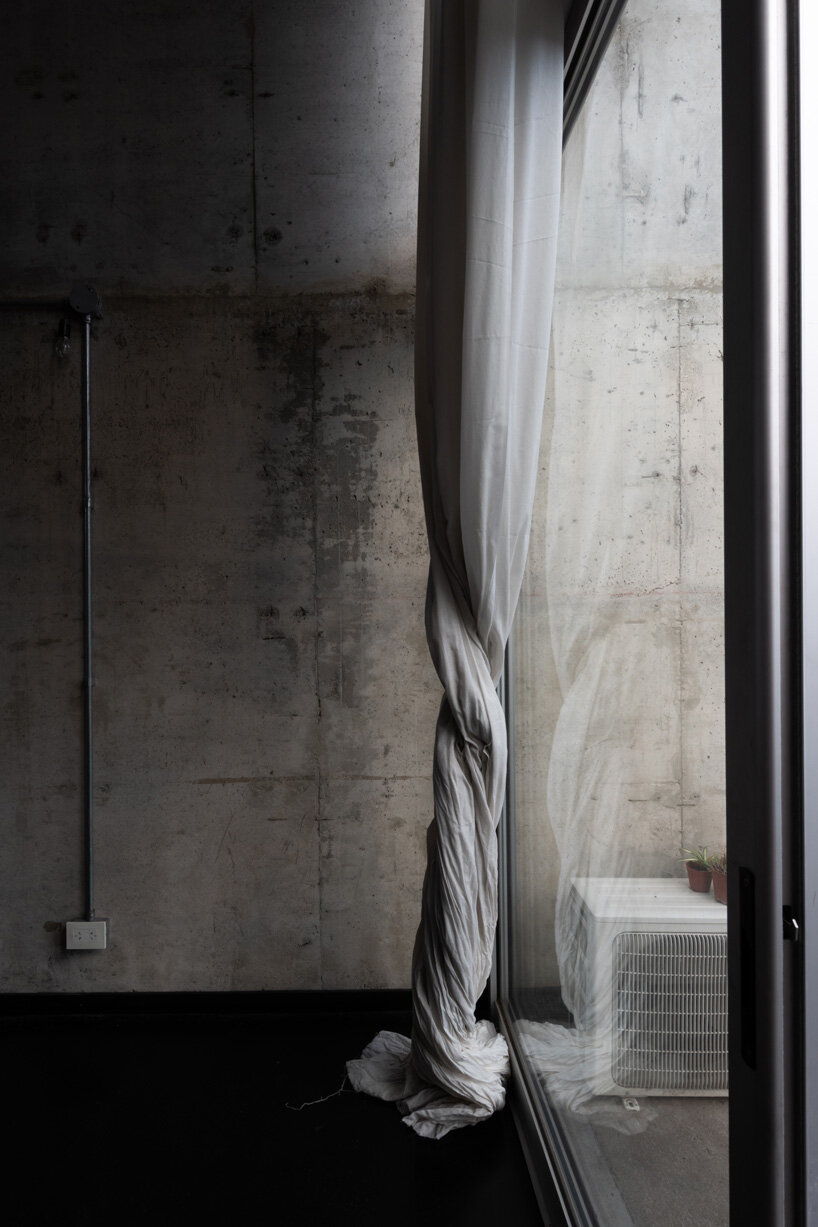

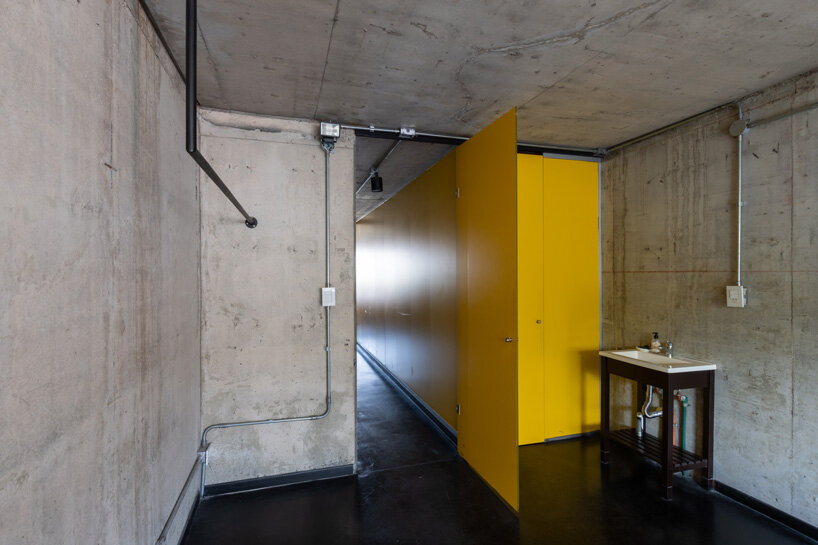

the exposed concrete structure gives the building its character

three vertical houses compose concrete 'triptico' building in córdoba, argentina

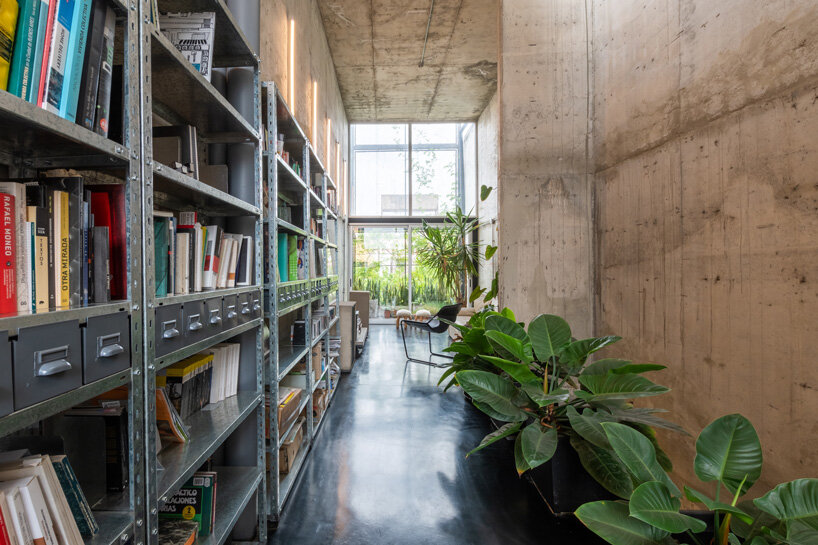

each house/studio measures just 3.13 meters wide

three vertical houses compose concrete 'triptico' building in córdoba, argentina

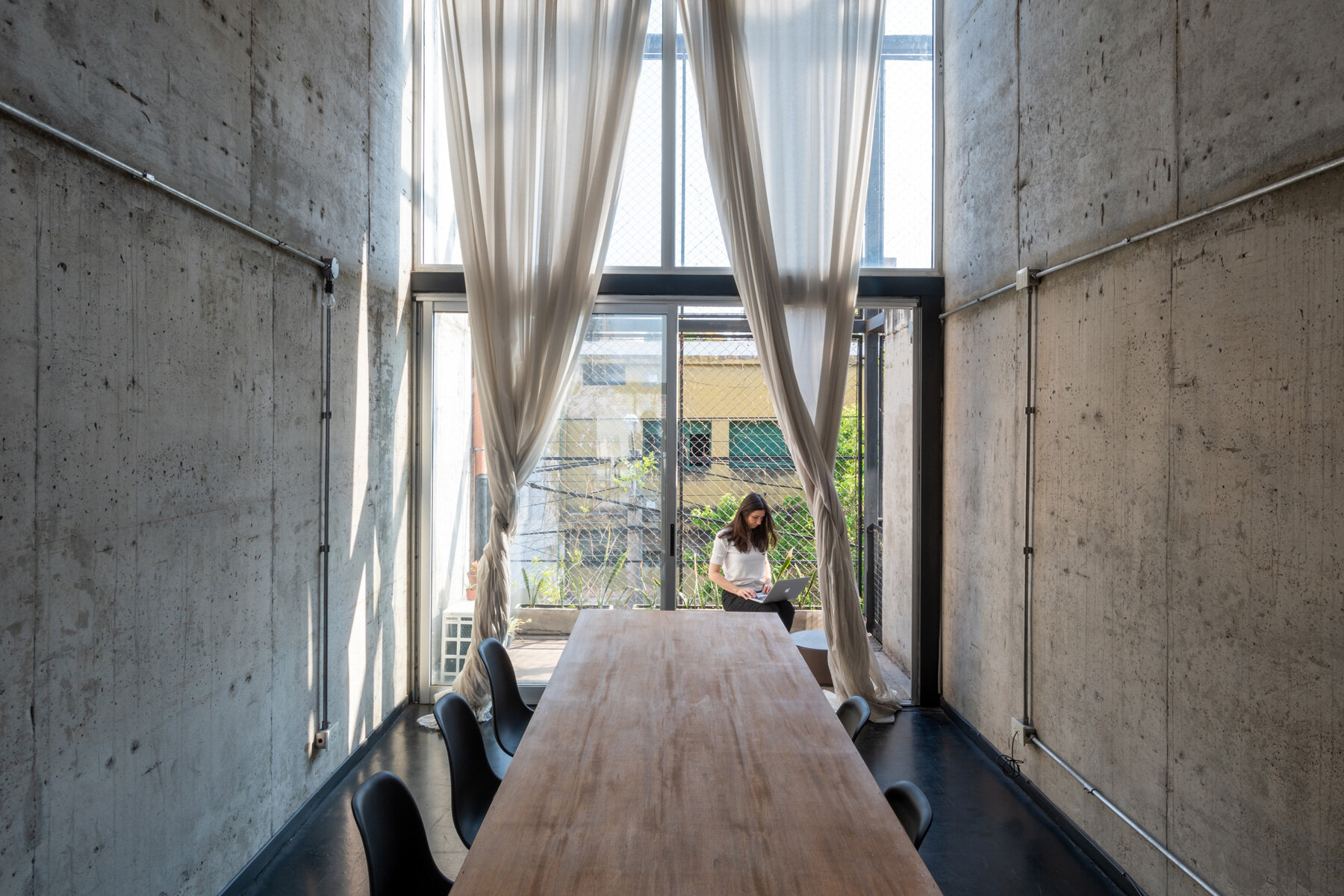

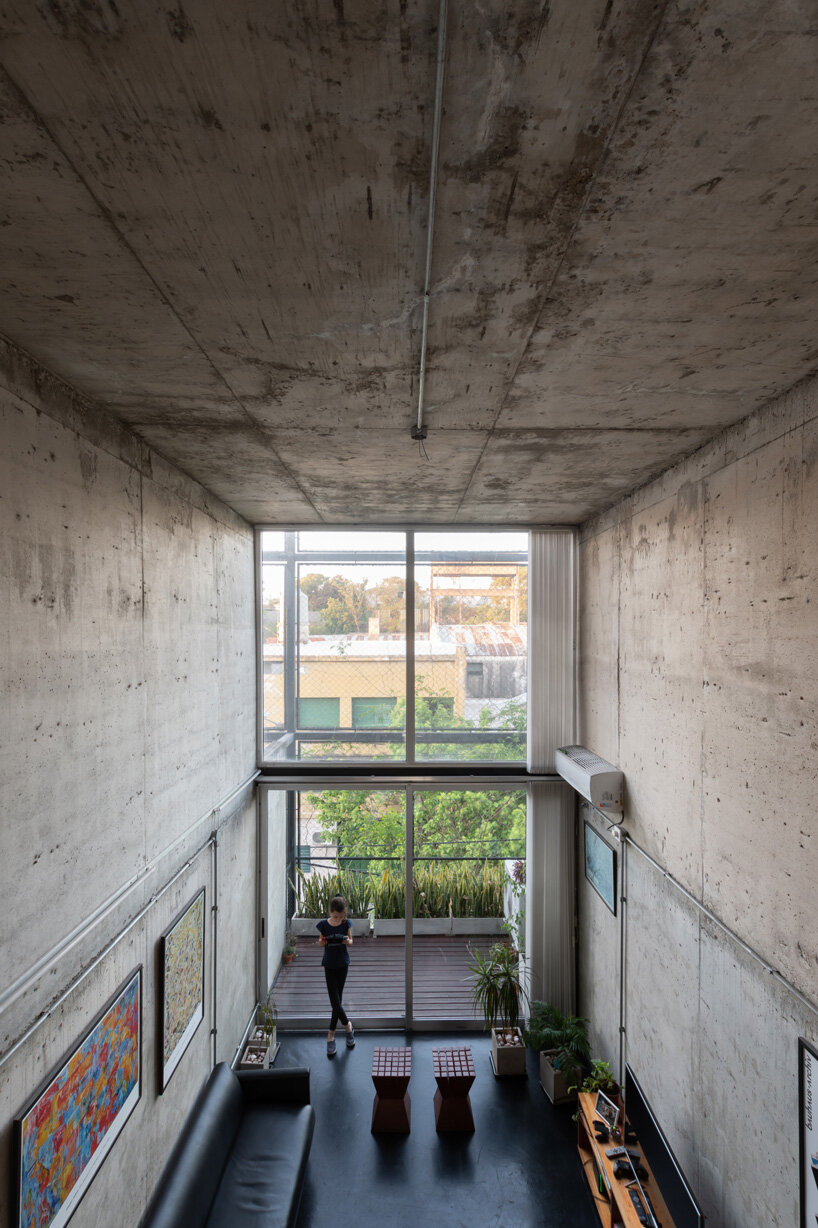

the third floor is home to airy double-height spaces

three vertical houses compose concrete 'triptico' building in córdoba, argentina
details

three vertical houses compose concrete 'triptico' building in córdoba, argentina

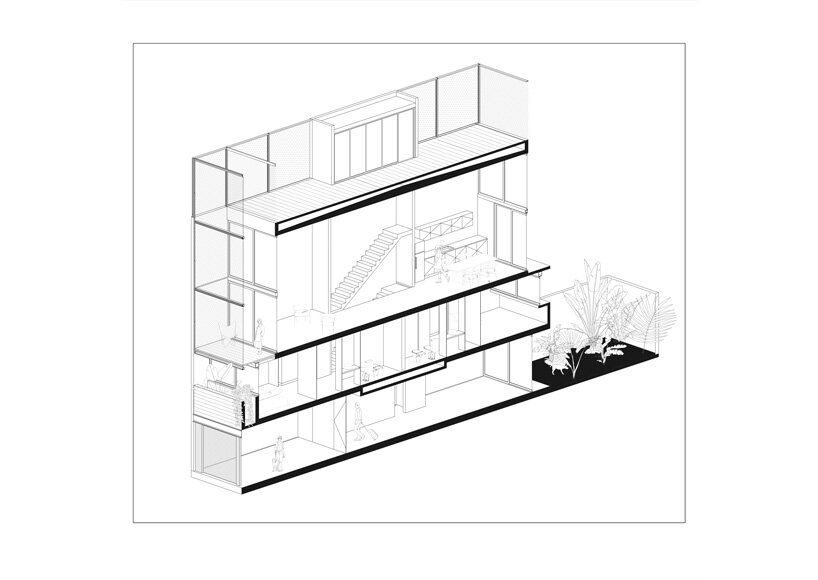

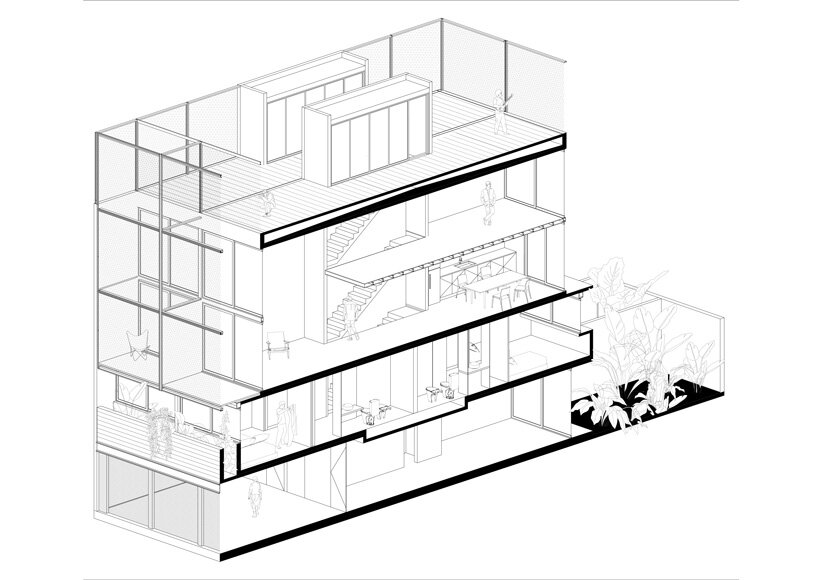

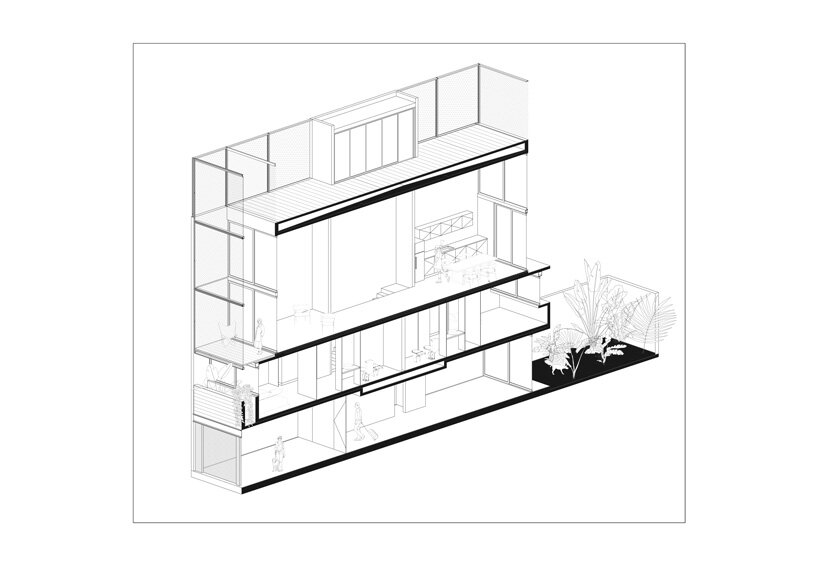

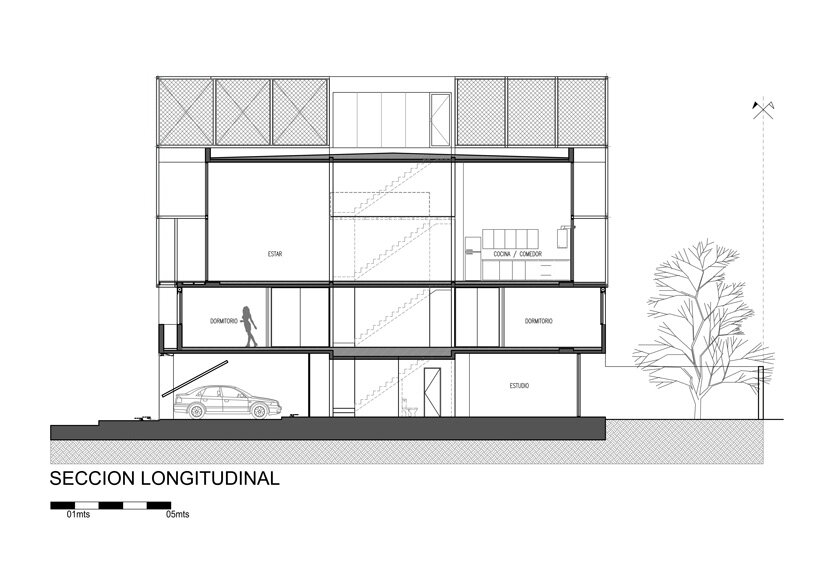

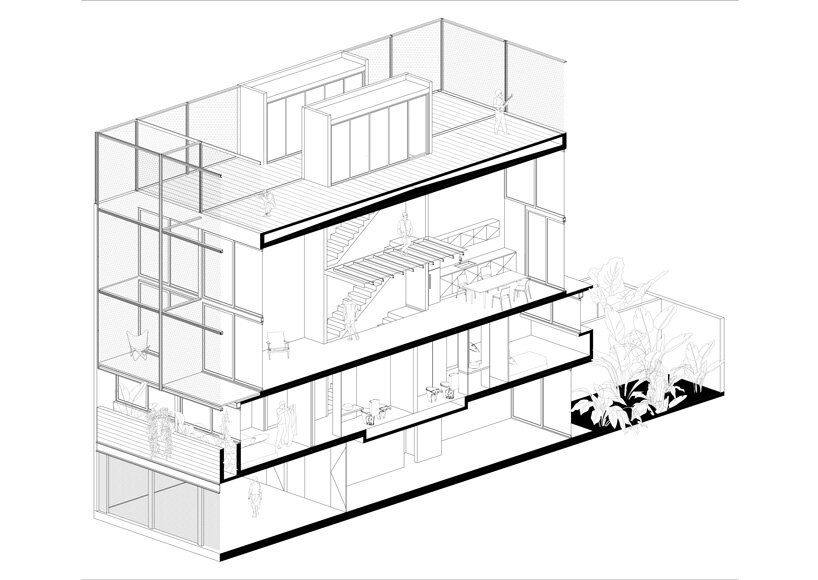

triptico was designed in section

triptico-argentina-designboom-07X

three vertical houses compose concrete 'triptico' building in córdoba, argentina
bird’s eye view of the outdoor spaces at the rear of the plot

three vertical houses compose concrete 'triptico' building in córdoba, argentina
triptico encompasses three dwellings on one plot, just like a triptych





1/25
three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina

three vertical houses compose concrete ‘triptico’ building in córdoba, argentina


project info:



name: triptico

location: córdoba, argentina

architecture: mariela marchisio, cristián nanzer, germán margherit
collaborator: marcos barboza
structural calculations: edgard morán
contractor: adrián molina / s. heredia
aluminium carpentry: aluvicor
concrete: hormi – block s. a.
blacksmiths: fabián aimar e hijos / luis herrera & diego herrera
floor area: 514 sqm

year: 2014
photography: gonzalo viramonte | @gonzaloviramonte
