metal panels bent to form an intricate lattice ceiling



studio link-arc in collaboration with kane A|UD architecture designed ‘banu restaurant‘ in zhengzhou, china, including its interior and a façade replacement. the client’s request was to create a recognizable landmark along the main axis road and be welcoming to the community. a panelized ceiling and wall system that formed a continuous undulating enclosure, give a visual identity to the space.

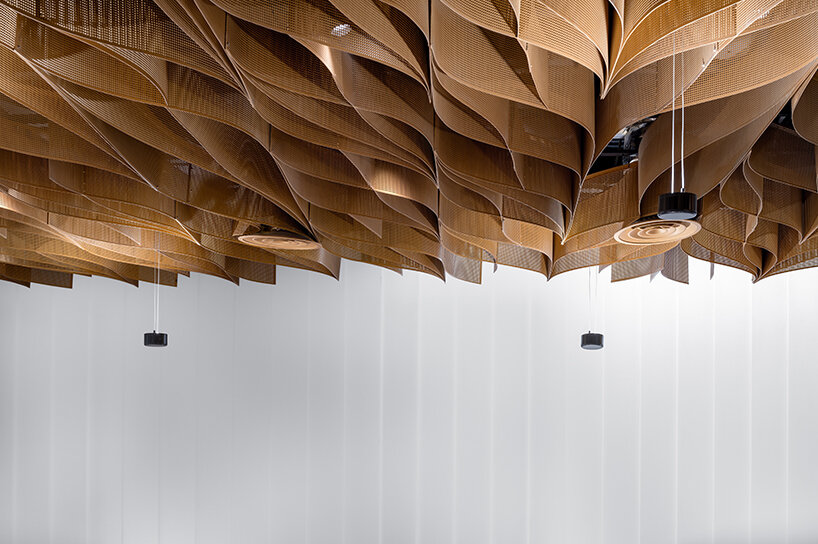

the ceiling transforms its appearance and transparency due to its various density, height, and size, in order to give depth to the roof plane. the geometry of the ceiling was created from perforated metal panels bent to form an intricate yet rationalized pattern.continuous undulating lattice ceiling dominates banu restaurant in zhengzhou, china image © kane A|UD architecture



a fluid and flexible interior landscape

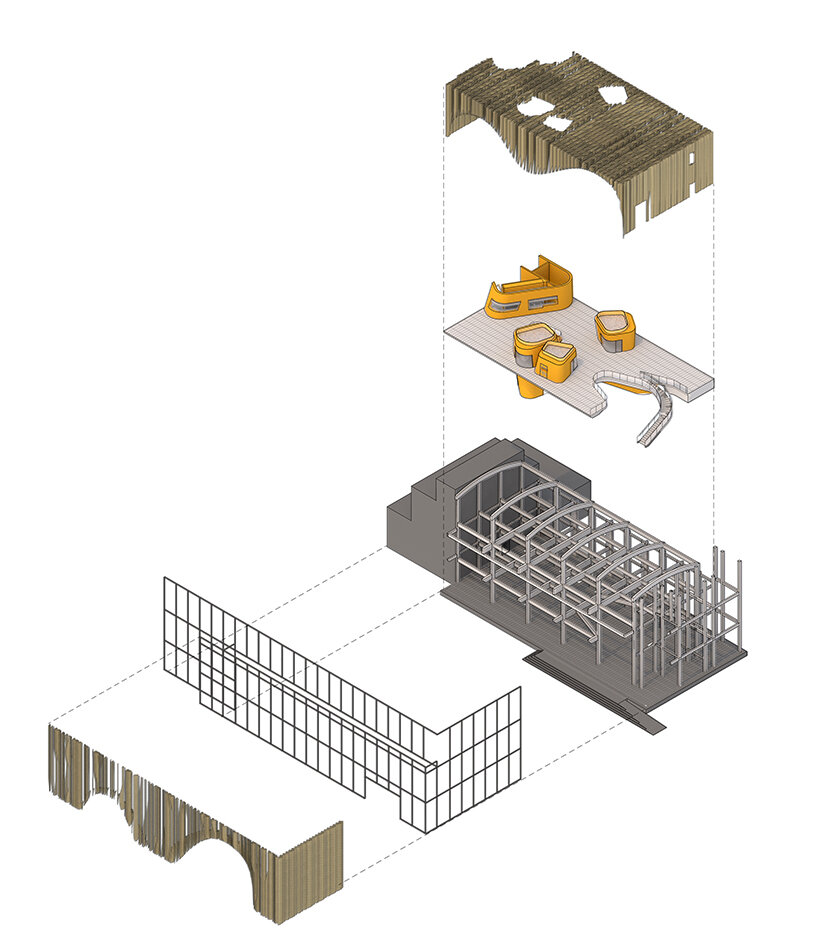

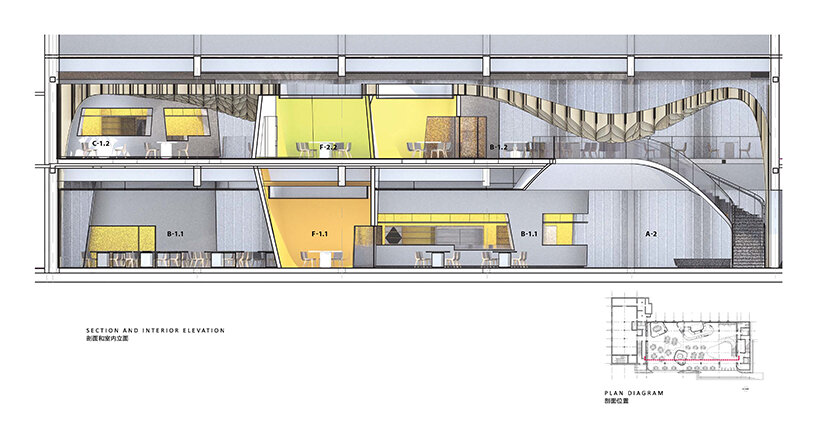

 studio link-arc in collaboration with kane A|UD architecture generated an open and flexible interior landscape with a variety of spaces. the architects sought to break down the large-scale, and orthogonal structural grid of the existing building and reframe the space into a more fluid organization system. first, they formed a series of sculptural cone-shaped private dining rooms and open kitchens that both enclosed the program while differentiating the dining spaces around them.

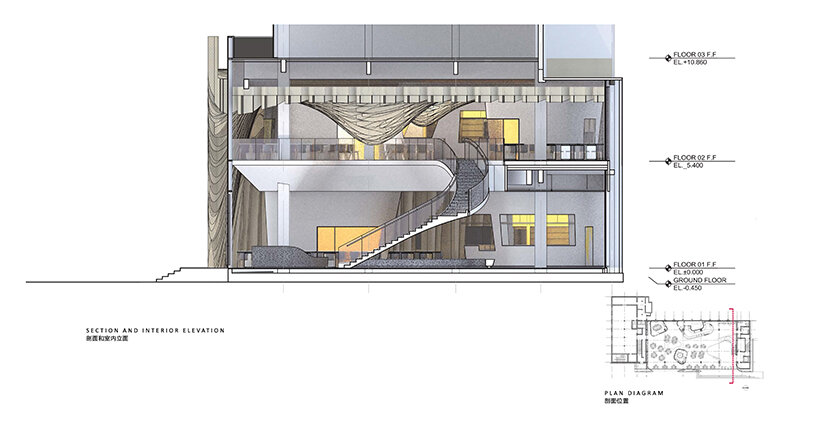

then, they inserted two vertical conical voids at the lobby and main seating area to remove the existing floor plate and vertically tie the two dining levels together. the third strategy included the design of an organic lattice ceiling that varied in height based on the program.

continuous undulating lattice ceiling dominates banu restaurant in zhengzhou, chinaall images courtesy of qingshan wu, unless stated otherwise





the ideas of the interior were extended to the exterior facade



the façade is pulled up at the entry and connects along with the ceiling giving continuity between the exterior and interior envelopes. through the unity of interior and exterior, the effect is a constantly changing dynamic to the street inviting passers-by to join in the activities of the restaurant.



for the exterior façade, the architects extended the character of the interior ceiling by creating a sunscreen to protect the southern façade and give changing transparency and visual texture to the building. the façade panel has four types and was clipped to a supporting structure and supported off the glass curtainwall.



continuous undulating lattice ceiling dominates banu restaurant in zhengzhou, china
the banu name is derived from the stories of the rivermen who historically assisted boats to navigate treacherous rivers of china and who were known to eat hotpot foods to restore their strength

continuous undulating lattice ceiling dominates banu restaurant in zhengzhou, china
the design sought to honor this history but creating a space formed from a natural yet turbulent flow and marked by the sinuous lines of the rope pull lattices

studio-link-arc-banu-restaurant-organic-lattice-ceiling-china-designboom-1800

image © kane A|UD architecture

continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china

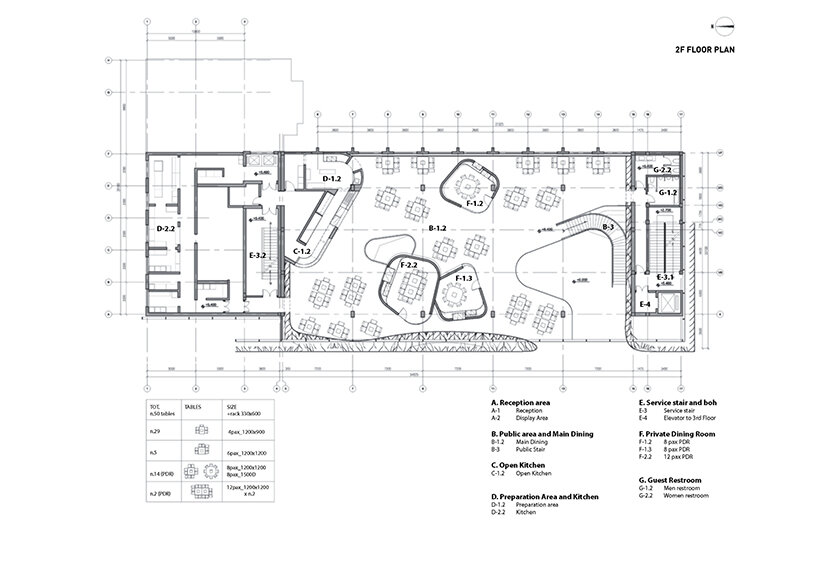

private dining rooms

continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china
the ceiling was composed of nine standard modules repeated with over 700 panels

continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china
the existing floor plate was removed

continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china

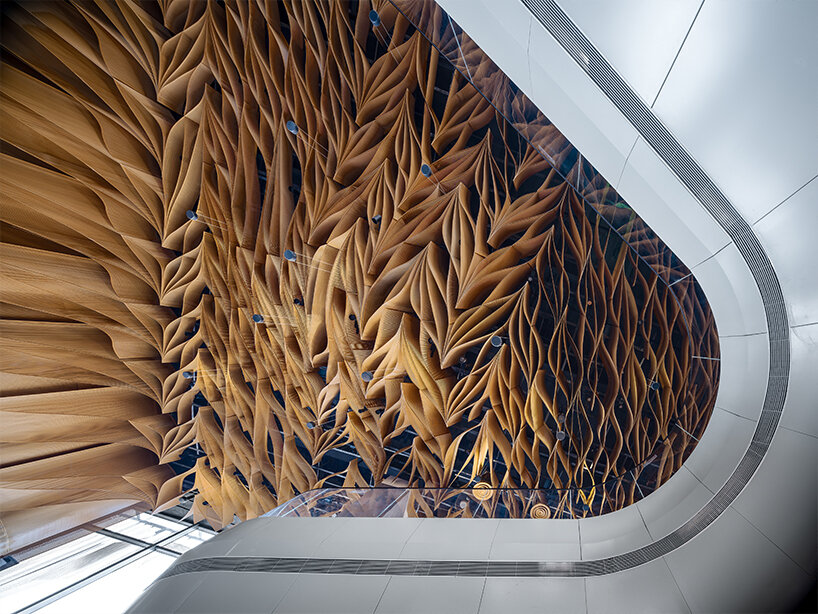

vertical conical void punctures the lobby

1/8
continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china

bending the metal panels
bending the metal panels
private dining area
private dining area
continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china

continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china

continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china

continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china

continuous undulating lattice ceiling hovers above banu restaurant in zhengzhou, china


project info:



name: banu restaurant

architects: studio link-arc in collaboration with kane A|UD architecture

design team: sanhoi lam(kane aud), vivianna wang, mariarosa doardo

chief architect: yichen lu, ted kane(kane aud)
lighting design: chen chen

location: zhengzhou, china

area: 2100 sqm
client: banu hotpot restaurant co., ltd
