Z4Z4's casa tobogan in madrid offers contrasting living environments

Z4Z4’s casa tobogan in madrid offers contrasting living environments
all images by imagen subliminal (miguel de guzmán / rocío romero)







in madrid, architecture studio Z4Z4 has completed a multifaceted residential property that juxtaposes different living styles and environments. named ‘casa tobogan’, the dwelling has been designed for a client who wanted a home that reflected their trips around the world, and offered a range of external living spaces. in response, the design team created two almost separate residences — a subterranean domain that spills out onto an outdoor terrace, and an elevated structure that contains plentiful sleeping accommodation. these two levels are connected via a spiral staircase that bridges an intermediate void used to channel light into the areas below.





take a tour of casa tobogan in madrid, spain
video by imagen subliminal

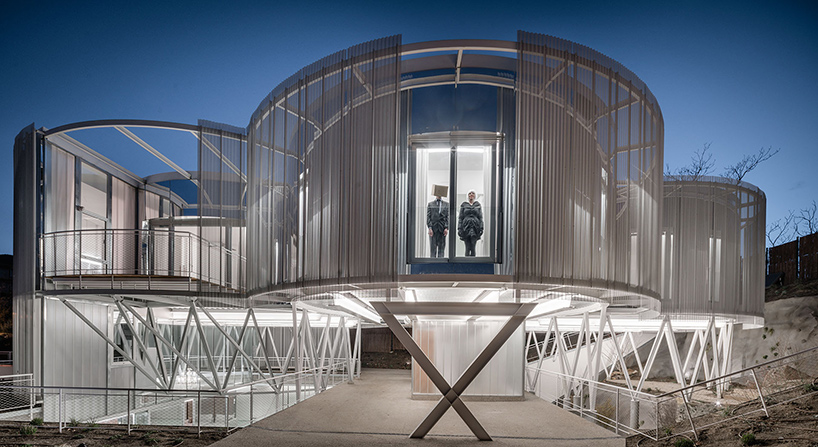

the two environments offer a stark contrast in terms of materiality, shape and weight. the sunken level — with its natural vegetation and long concrete walls — feels embedded within the terrain, with a central courtyard conceived as a scaled-up greenhouse. the superstructure appears almost cloud-like in form, suspended in mid-air. corrugated iron curtains wrap around the three cylinders that make up the elevated building, while inside are nine rooms with a total of five bathrooms. carefully positioned apertures and terraces overlook the remainder of the property, while airy curtains and bright white walls continue the sense of lightness.

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
the multifaceted property juxtaposes different living styles

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
two living levels are connected via a spiral staircase that bridges an intermediate void

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
the storey at ground level is used for car parking and channeling daylight

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
the subterranean domain spills out onto an outdoor terrace

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
a central courtyard is conceived as a scaled-up greenhouse

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
with its natural vegetation and long concrete walls, the lower level feels embedded within the terrain

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
the two environments offer a stark contrast in terms of materiality

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
the elevated superstructure contains the home’s sleeping accommodation

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
a sheltered area of vegetation

Z4Z4-AAA-casa-tobogan-TB-house-madrid-spain-designboom-02
at night, the dwelling glows from within





project info:



name: casa tobogan
location: madrid, spain
design: may, 2007 – december, 2013
construction: april, 2014 – december, 2015



architects: Z4Z4 AAA
project author: rafael beneytez duran with Z4Z4
architects: rafael beneytez, víctor cano, ophelia mantz
project team: rafael beneytez, víctor cano, ophelia mantz, borja iglesias, elena oña
structural engineering: juan carlos arroyo, ignacio garcía (calter) + rafael beneytez, víctor cano (Z4Z4)
modular system: guillermo martínez, luis martín (eurobox) + rafael beneytez, víctor cano (Z4Z4)
landscaping: martín toimil (land30)
lighting: ilumisa + rafael beneytez, víctor cano (Z4Z4)
facilities: carolo garrote (proyecta!)
photography and video: imagen subliminal (miguel de guzmán / rocío romero)
bioclimatics: ophelia mantz, elena oña
client: private
construction company: mario navarro, santiago ibañez (ars tectónica)
technical architect: alfonso del castillo
area: 512 sqm / 5,511 sqf
