jan 11, 2014

andy zhou flexes winged plus pendant with OLED panels

andy zhou flexes winged plus pendant with OLED panels
all images courtesy of andy zhou







the ‘plus pendant’ by australian designer andy zhou is a ceiling mounted OLED luminaire that can be controlled via a bluetooth paired app on a smartphone or tablet device. wanting to showcase the future capabilities of organic LEDs, such as a thin, surface-based light and flexibility, the panels are mounted on a movable frame that goes up or down. the conical structure is transformed into different positions, to either an area/directional light or spotlight. the arms respond with the help of an internal motor, magnets and tensile cables drive the annulus up the steel column, giving the illusion of an invisible mechanism shifting the state of the ‘plus pendant’.






‘plus pendant – an OLED luminaire’
video courtesy of andy zhou





the luminaire consists of 36 LG chem OLEDs and by laying them on a cross-shaped chassis, the light can be evenly spread to create a soothing, low glare high CRI effect, with maximum illumination reaching 2636 lumens. the textile cover is manufactured using a 3D knitting process using a CNC machine. the work was supported by CSIRO, australia’s national research agency in flexible electronics.





andy zhou flexes winged plus pendant with OLED panels
plus pendant in the directional light position





andy zhou flexes winged plus pendant with OLED panels
plus pendant in the area light position





andy zhou flexes winged plus pendant with OLED panels
36 OLEDs were used in the design





andy zhou flexes winged plus pendant with OLED panels
the light reaches a total of 2636 lumen brightness





andy zhou flexes winged plus pendant with OLED panels
the app is controlled via bluetooth technology





andy zhou flexes winged plus pendant with OLED panels
3D knit fabric cover





andy zhou flexes winged plus pendant with OLED panels
CNC milled ironbark circuit housing





andy zhou flexes winged plus pendant with OLED panels
the white polyester allows for great light transparency





andy zhou flexes winged plus pendant with OLED panels
the panels flexed in an area light and spotlight position





andy zhou flexes winged plus pendant with OLED panels

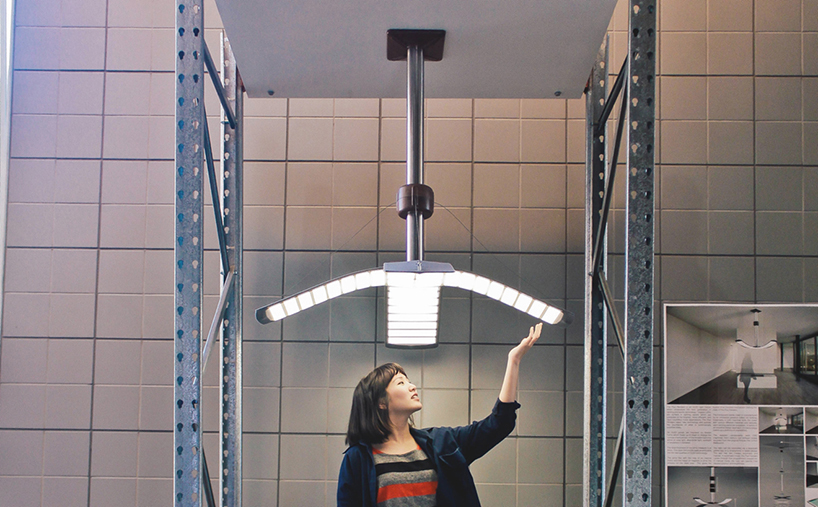

installed at monash university
