Dov Ganchrow 3D prints multicolored trucks using FDM



Dov Ganchrow prints multicolored trucks on a single-extrusion-head FDM (Filament Deposition Modeling) 3D printer using filaments composed of assorted color segments in his Purgey project. Through Purgey, the artist explores the intersection of technology and color. A notable feature of this FDM printing process is the creation of a purge block. As the printer switches between colors, it must clean the extruder by depositing excess plastic next to the printed object. This results in a secondary body, a randomly colored cube, forming beside the desired multi-colored object. In the case of the Purgey trucks, this purge block becomes a significant element. The trucks are printed standing on their heads, and upon completion, the purge block is moved onto the truck as its cargo, ready to be driven away.

dov ganchrow turns FDM purge blocks into cargo for multicolored 3D printed trucks
all images by Dan Perez, courtesy of Dov Ganchrow





Purgey Trucks’ design highlights the printing process



The reverse design process of the project by Dov Ganchrow starts by unraveling a virtual object to define the sequential color composition of the filament. The filament is then physically created by cutting and fusing different colored segments, which are heated and deposited to produce the final multi-colored object. The truck by the product designer adheres to a ‘no supports’ directive, leading to the creation of angled forms. One of the trucks carries a spool of fused filament, representing a stage before being printed along with its purge block, highlighting the process and the materialization of the object. Purgey Trucks was commissioned by the Holon Design Museum for the exhibit Colors. Dov Ganchrow, a professor at the Bezalel Academy of Arts and Design in Jerusalem, often creates works driven by curiosity and the potential of digital-physical shifts. The Purgey Trucks project, curated by Liora Rosin and Yuval Saar, embodies this approach, showcasing the intricate relationship between technology and color.

dov ganchrow turns FDM purge blocks into cargo for multicolored 3D printed trucks
Dov Ganchrow prints multi-color objects on a single-extrusion-head FDM 3D printer

dov ganchrow turns FDM purge blocks into cargo for multicolored 3D printed trucks
filaments composed of assorted color segments create Purgey Trucks project

dov ganchrow turns FDM purge blocks into cargo for multicolored 3D printed trucks
through Purgey Trucks, the artist explores the intersection of technology and color

dov ganchrow turns FDM purge blocks into cargo for multicolored 3D printed trucks

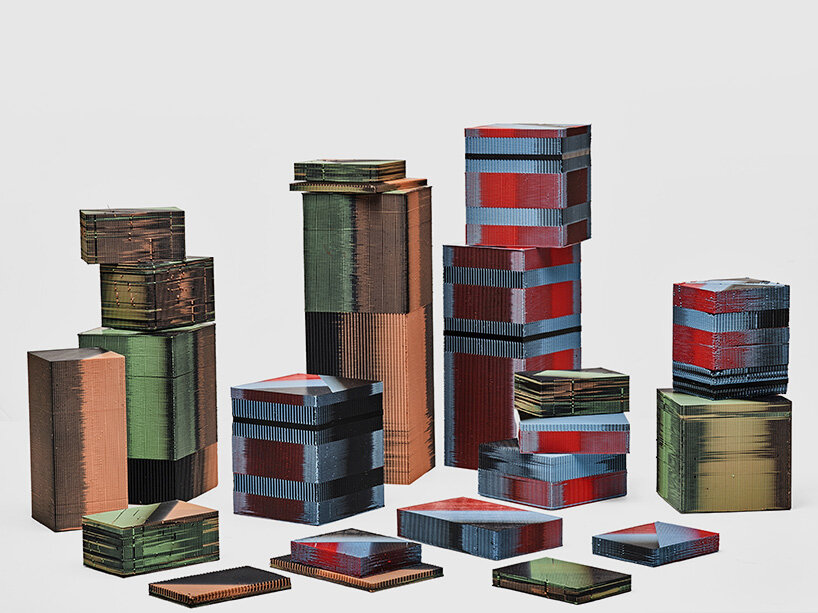

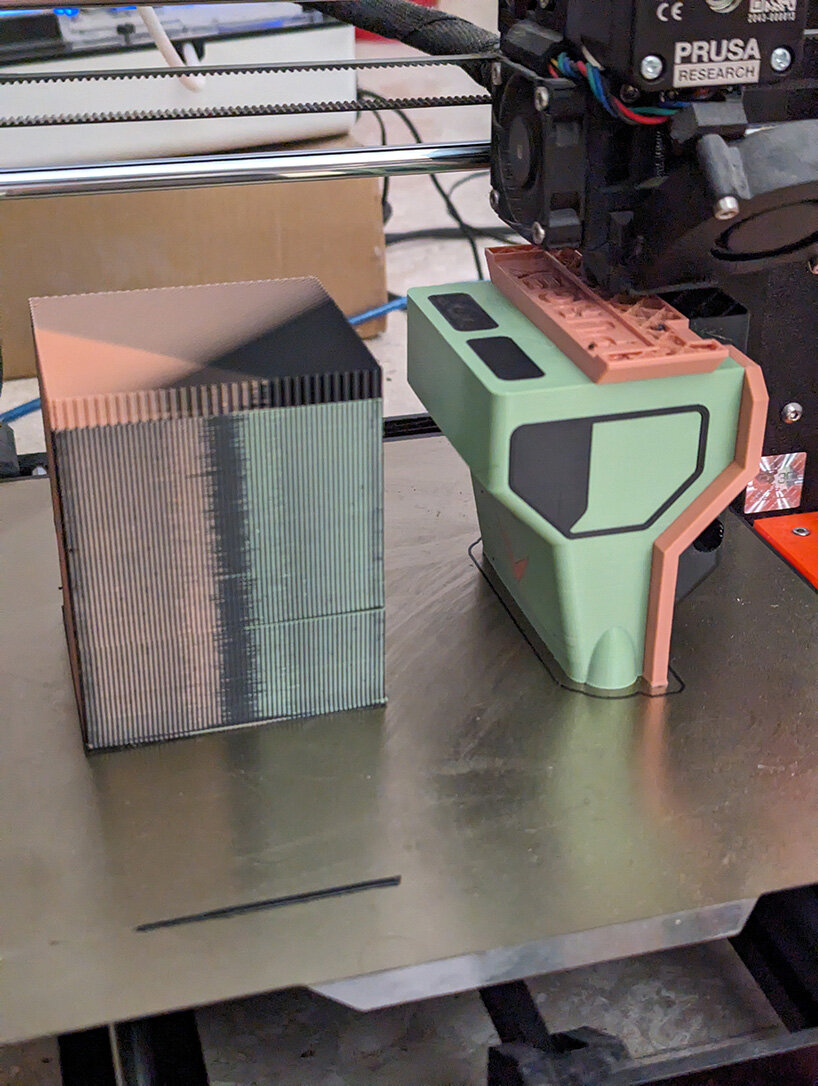

a notable feature of this FDM printing process is the creation of a purge block

purge-blocks-cargo-multi-color-3d-printed-trucks-dov-ganchrow-07-22-2024-designboom-1800-02

as the printer switches between colors, it cleans the extruder by depositing excess plastic

dov ganchrow turns FDM purge blocks into cargo for multicolored 3D printed trucks

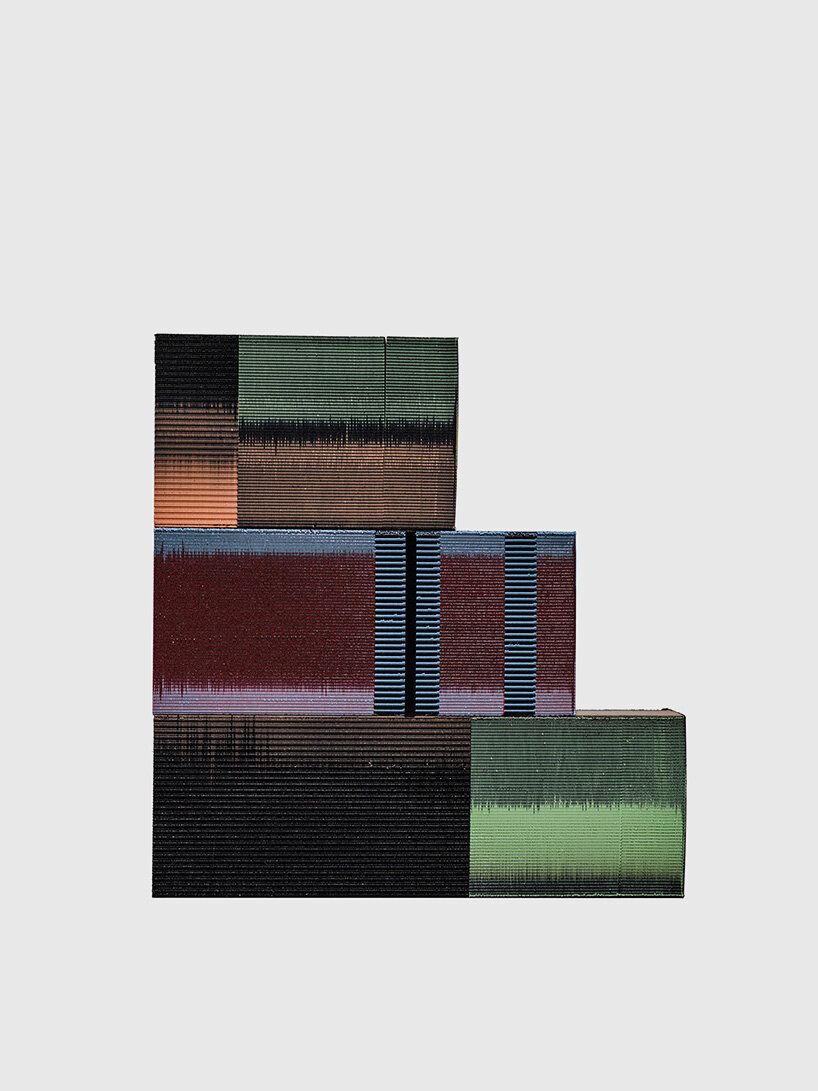

a secondary body, a randomly colored cube, forms beside the desired multi-colored object

dov ganchrow turns FDM purge blocks into cargo for multicolored 3D printed trucks

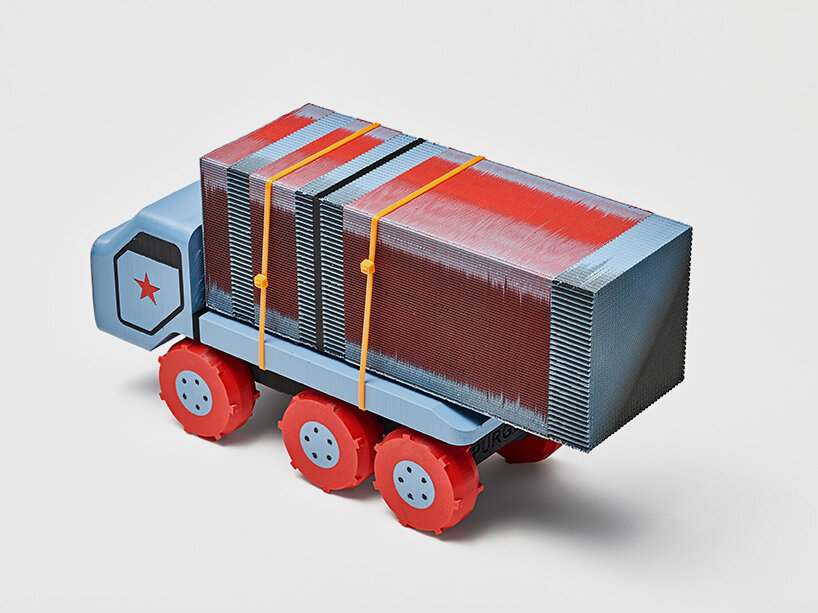

in the case of the Purgey trucks, this purge block becomes a significant element

purge-blocks-cargo-multi-color-3d-printed-trucks-dov-ganchrow-07-22-2024-designboom-1800-04

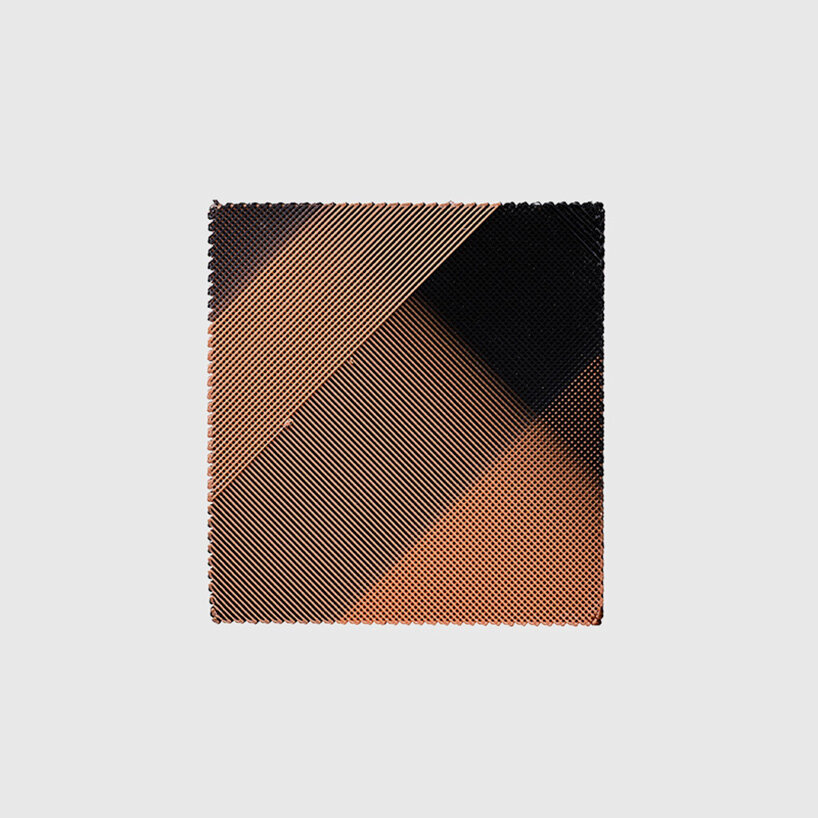

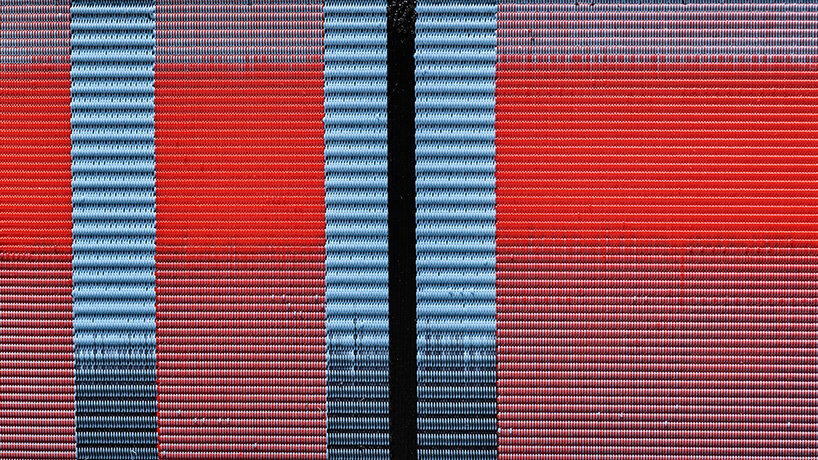

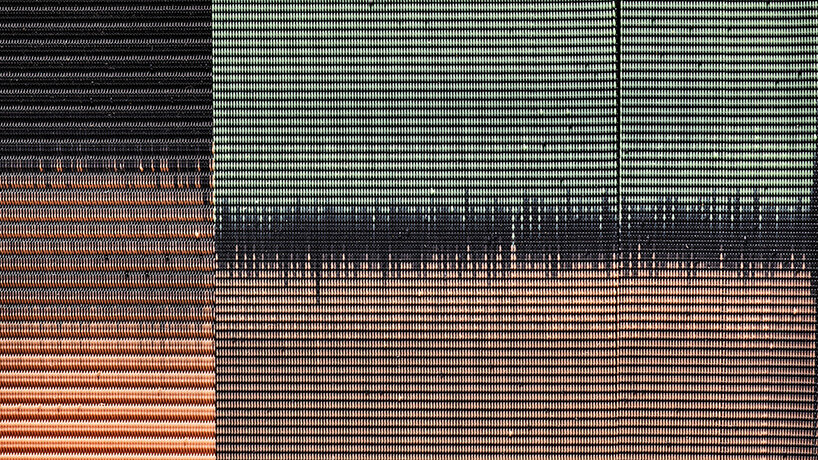

playful gradients color the purged body

dov ganchrow turns FDM purge blocks into cargo for multicolored 3D printed trucks

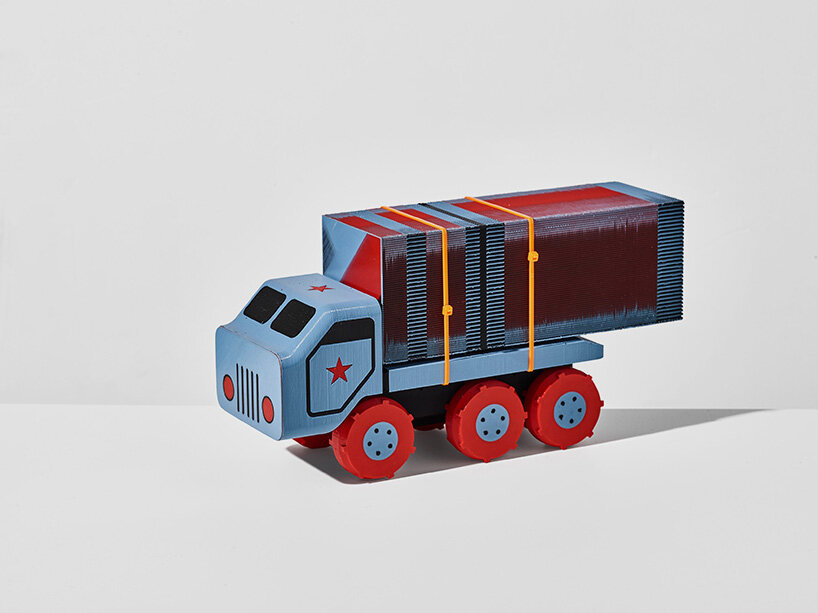

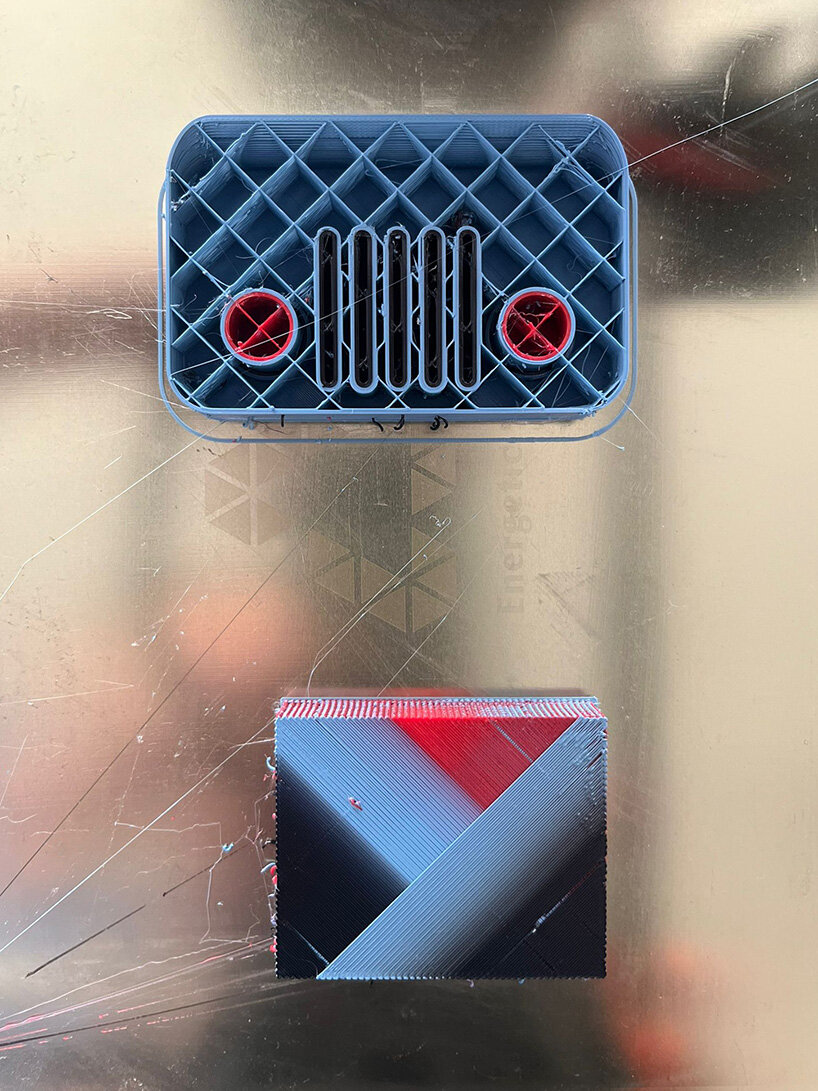

the trucks are printed standing on their heads

purge-blocks-cargo-multi-color-3d-printed-trucks-dov-ganchrow-07-22-2024-designboom-1800-03

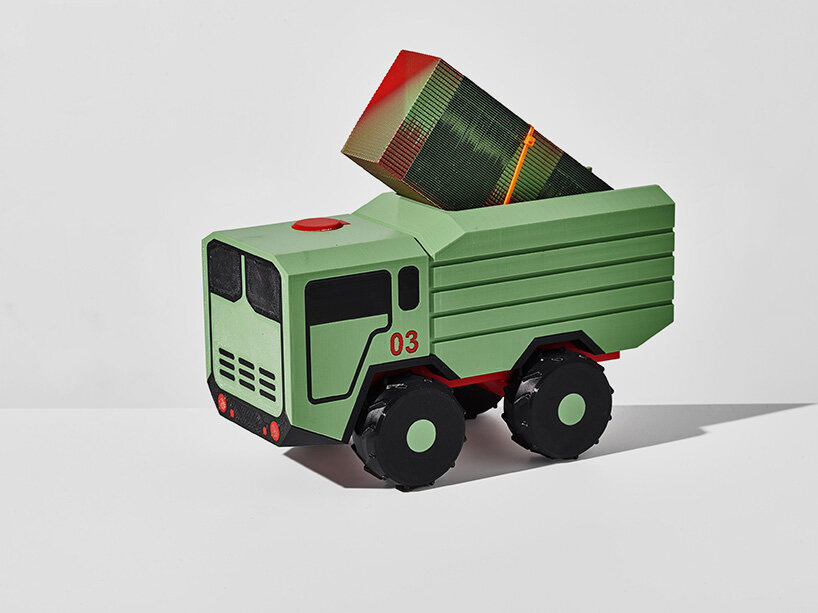

upon completion, the purge block is moved onto the truck as its payload



1/4
Dov Ganchrow unravels a virtual object to define the sequential color composition of the filament
Dov Ganchrow unravels a virtual object to define the sequential color composition of the filament
the truck adheres to a ‘no supports’ directive
the truck adheres to a ‘no supports’ directive

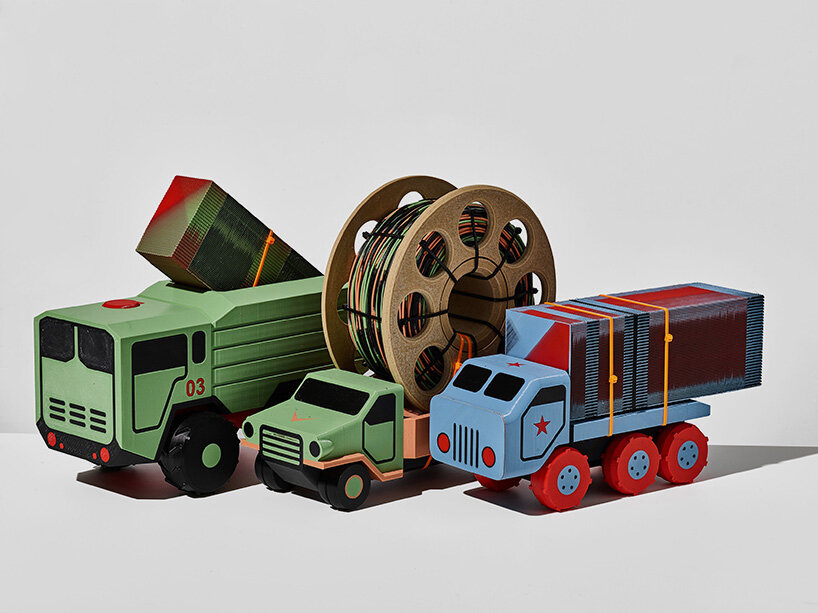

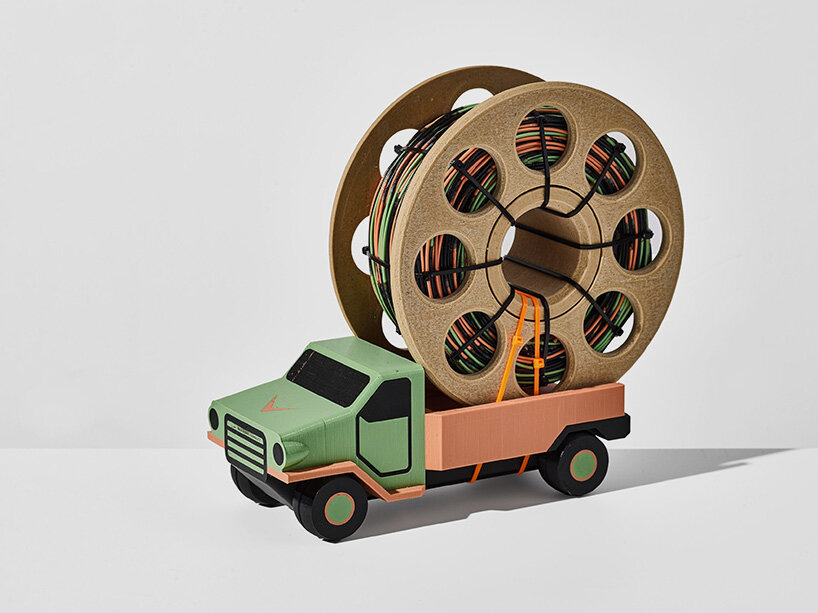

one of the trucks carries a spool of fused filament
one of the trucks carries a spool of fused filament
 Purgey Trucks was commissioned by the Holon Design Museum for the exhibit Colors
Purgey Trucks was commissioned by the Holon Design Museum for the exhibit Colors

project info:



name: Purgey
designer: Dov Ganchrow | @dovganchrow
supported by: Eyal Shushan, Shalev Neuman, Dror Yogev, 3D Shop
program: Colors, Holon Design Museum

photographer: Dan Perez
