CUHK implements traditional techniques in tricycle design

Folding Custom Bike revitalizes the traditional art of folding galvanized metal, incorporating it into the design of two utilitarian tricycles by the School of Architecture of the Chinese University of Hong Kong (CUHK). Led by Professor Hiroyuki Shinohara, the project uses traditional folding techniques to create functional and aesthetic elements on the tricycles. One of the vehicles serves as a welcome booth and information stand, featuring cover lids that open to create shaded areas with horizontal canopies and a tabletop. The other one functions as a display board, with panel frames that unfold horizontally to extend the bulletin boards to 4.5 meters in length.

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 1 — all images courtesy of CUHK

Folding custom bike highlights vending vehicles’ significance

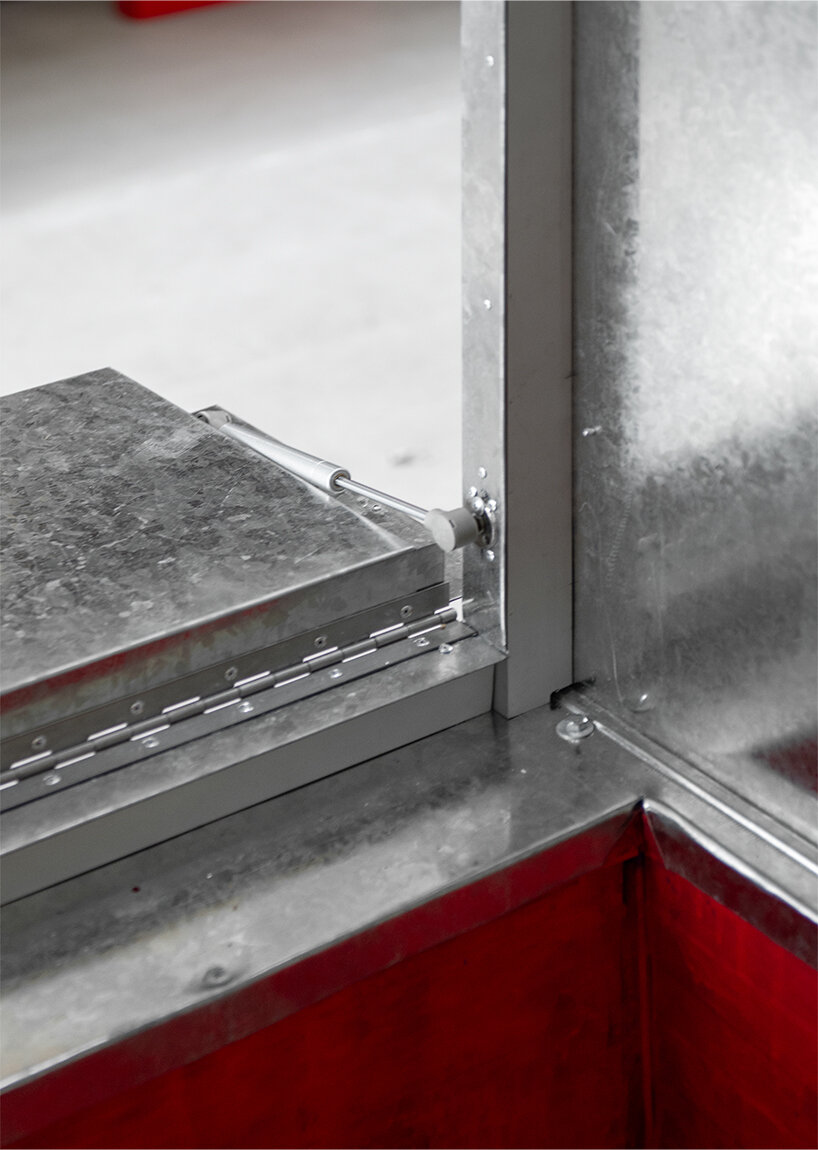

Constructed by the CUHK School of Architecture team from 0.6-millimeter-thick galvanized steel sheets, the tricycles feature box-shaped components that are easily attached to cargo beds, with a height of 655 millimeters. The first component measures 1150 x 775 x 1300 mm, and the second measures 1150 x 605 x 1300 millimeters, with the design focusing on easy transportation and deployment while maintaining a human-scale proportion. The project by the Chinese university underscores the historical significance of customized bicycles and tricycles in Chinese urban spaces. These vehicles, once popular for street vending, are disappearing due to modern regulations. By utilizing traditional folding techniques, the team aims to preserve this form of craftsmanship, known as White Steel for its pale and shiny appearance. This craft was historically used to make everyday objects like mailboxes, furniture, and building fixtures. The Folding Custom Bike tricycles are transformed into temporary installations for the ‘Space+’ community event in Mong Kok, Hong Kong.

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 2 — Folding Custom Bike revitalizes the traditional art of folding galvanized metal

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 3 — led by Professor Hiroyuki Shinohara, the project uses traditional folding techniques

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 4 — metal forms the functional and aesthetic elements on the tricycles

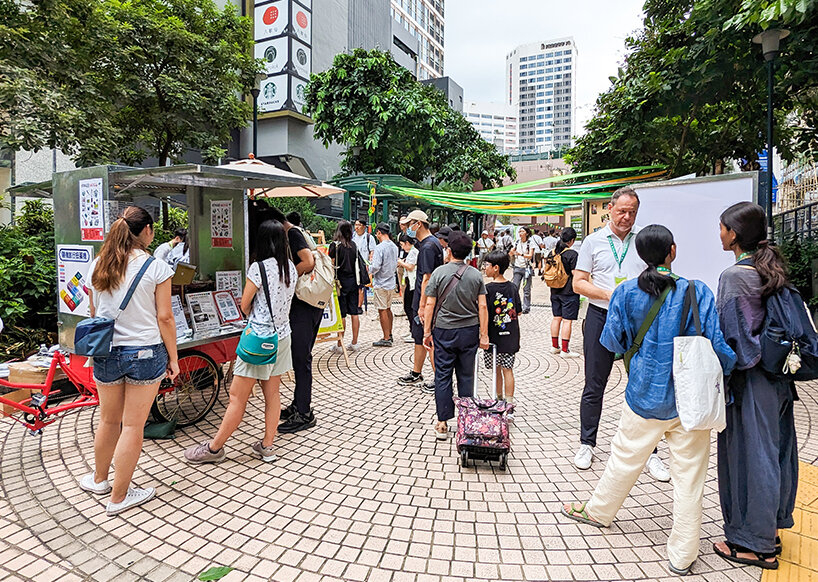

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 5 — one of them serves as a welcome booth and information stand

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 6 — cover lids open to create shaded areas with horizontal canopies and a tabletop

cuhk-traditional-chinese-metal-folding-galvanized-utilitarian-tricycles-designboom-1800-02 — these vehicles, once popular for street vending, are disappearing due to modern regulations

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 7 — panel frames that unfold horizontally to extend the bulletin boards to 4.5 meters in length

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 8 — constructed by the CUHK team fromgalvanized steel sheets, the tricycles feature box-shaped components

galvanized utilitarian tricycles by CUHK bring traditional chinese metal folding to life - 9 — the first component measures 1150 x 775 x 1300 mm

cuhk-traditional-chinese-metal-folding-galvanized-utilitarian-tricycles-designboom-1800-01 — by utilizing traditional folding techniques, the team aims to preserve this form of craftsmanship

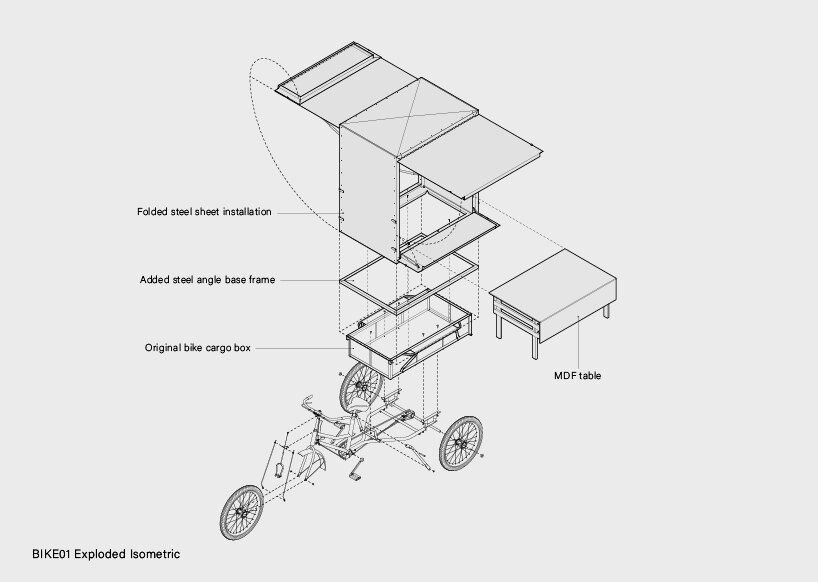

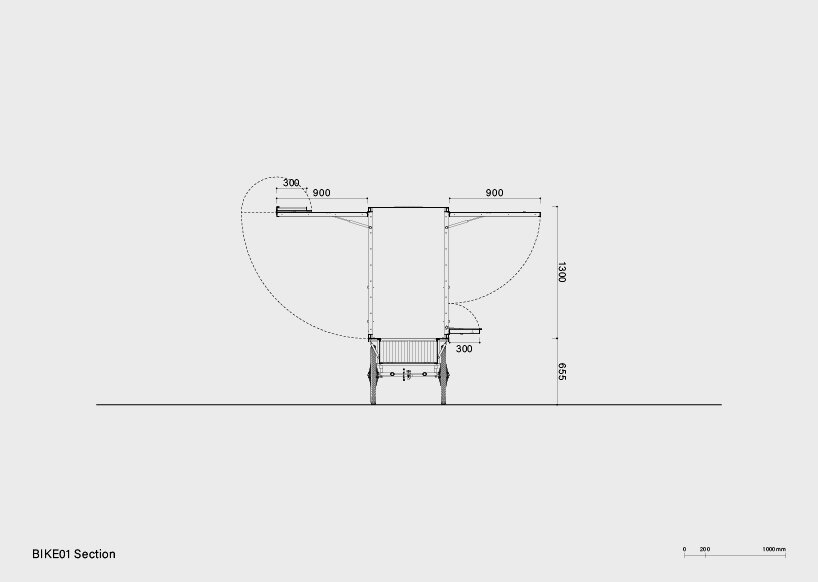

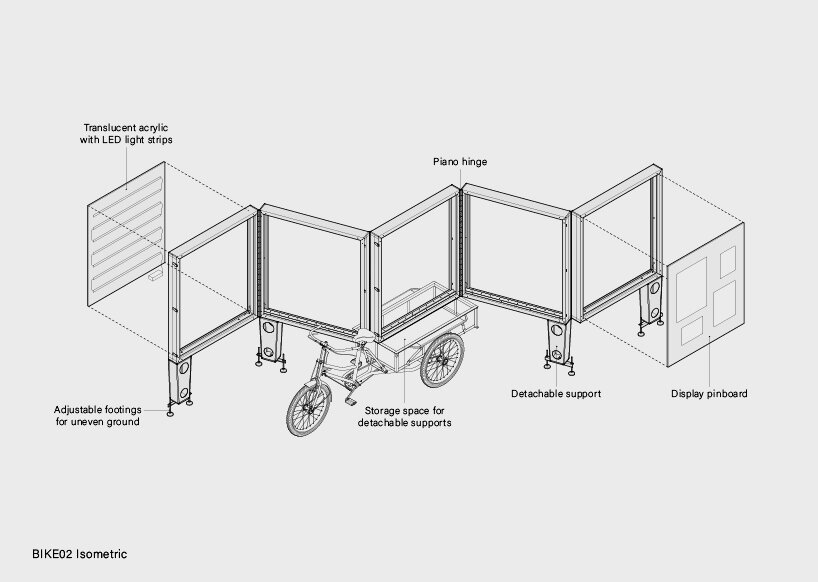

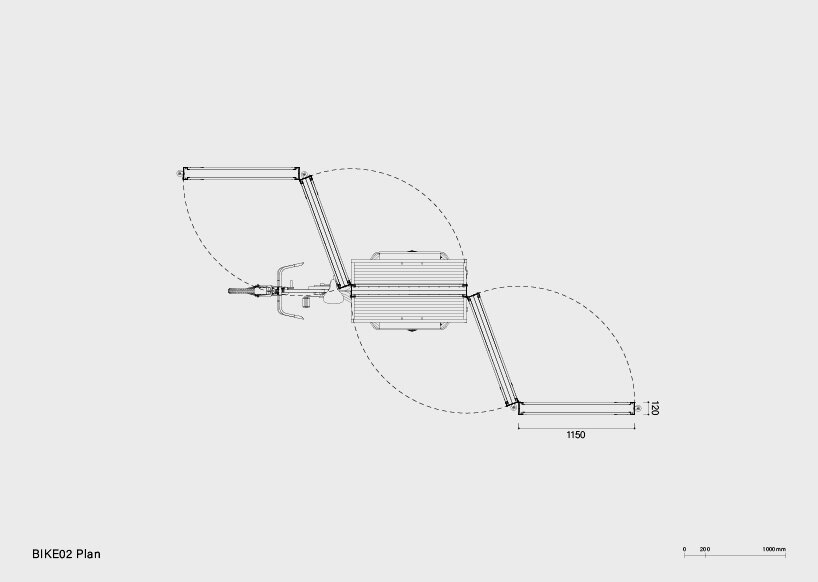

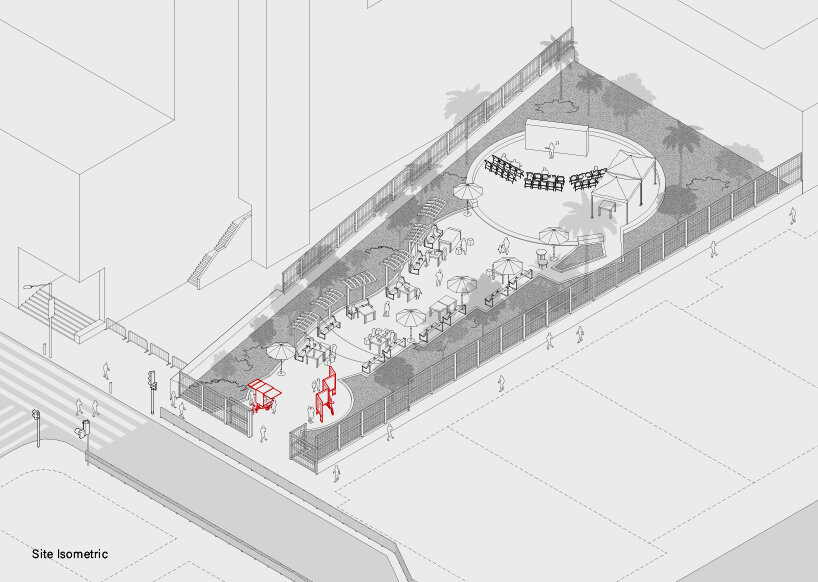

White Steel technique is known for its pale and shiny appearance the project highlights the historical significance of customized bicycles and tricycles in Chinese urban spaces bike01 section bike02 plan bike02 isometric bike01 exploded isometric site isometric

project info:

name: Folding Custom Bike
designer: The Chinese University of Hong Kong School of Architecture Design & Research | @cuhkarchitecture
lead professor: Hiroyuki Shinohara | @arch_hiro
design team: Craft Design Research Lab – Hiroyuki Shinohara, Ian Chen, Tony Lau
urban design: Melody Yiu, Hendrik Tieben, Charlie Chan
craftwork: Master Michael Yu and Melty Chan at Kindergarten Insane Studio
