The Digital Timber Construction Lab (DTC) and Augsburg University of Applied Sciences have recently unveiled a pioneering research demonstrator: a timber grid shell that forgoes the need for steel nodes or special connectors. This innovative structure supports catenary cross-section shells and free-form shapes that were previously unattainable. The project, supported by StadtSparkasse Augsburg, was developed for the Stadtgewaechs summer event at Moritzplatz, Augsburg, promoting sustainability in the city center.



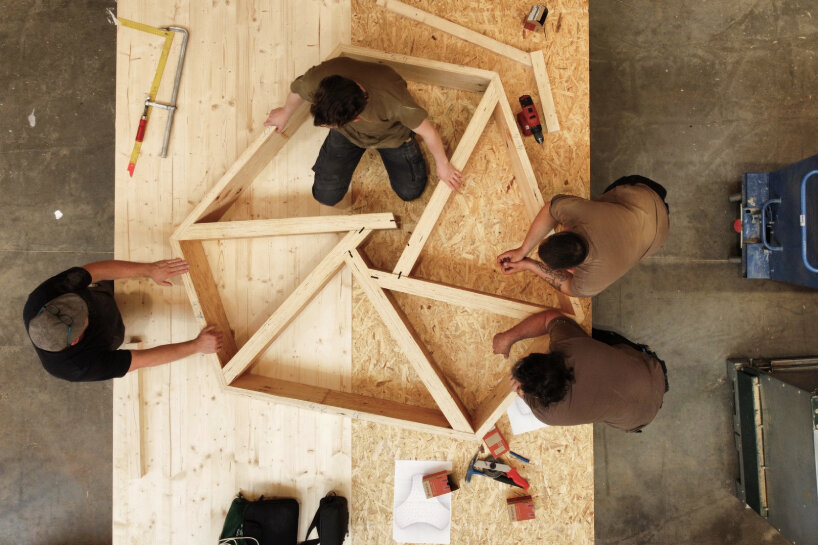

The ReciproFrame Timber Gridshell is an advanced construction system designed for rapid, cost-effective, and material-efficient assembly and disassembly of reusable structures. This hybrid system combines trivalent and reciprocal frame construction methods, leveraging digital technologies to transform short solid timber elements into efficient framed timber systems. These systems facilitate quick assembly and disassembly, enhancing both economic and material efficiency.



The project builds on previous research (see more here), developing the ‘ReciproFrame’ topology—a reciprocally reinforced trivalent polyhedral frame. Utilizing a CSV file for precise, rapid construction with multi-axis robotic arms, the design resulted in a 7.5-meter small-scale demonstrator. This method achieved structurally efficient catenary cross-sections without steel nodes, a notable improvement over traditional geodesic domes.

timber gridshell assembles free-form shapes combining trivalent and reciprocal frame
Reciprocal Shell 2023 | all images by Amin Adelzadeh, and Hamed Karimian. A





reciproframe Timber shell enables quick, cost-effective assembly

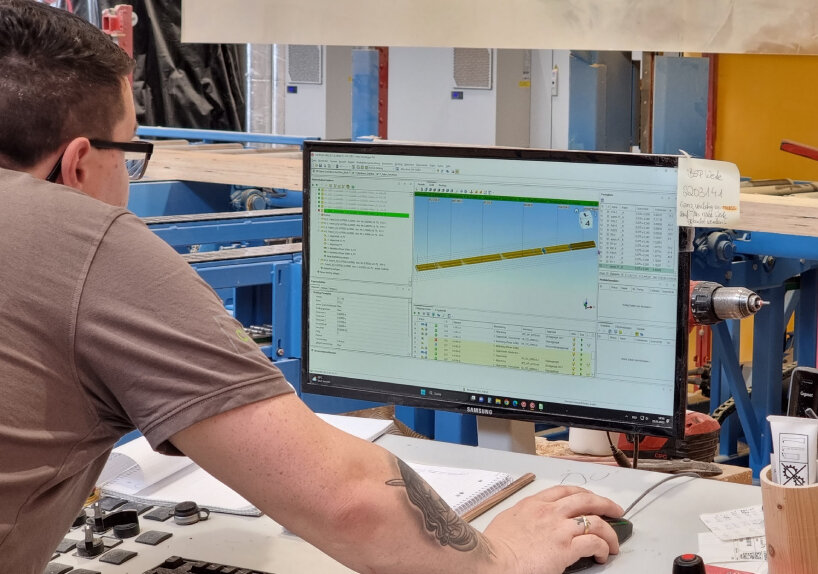

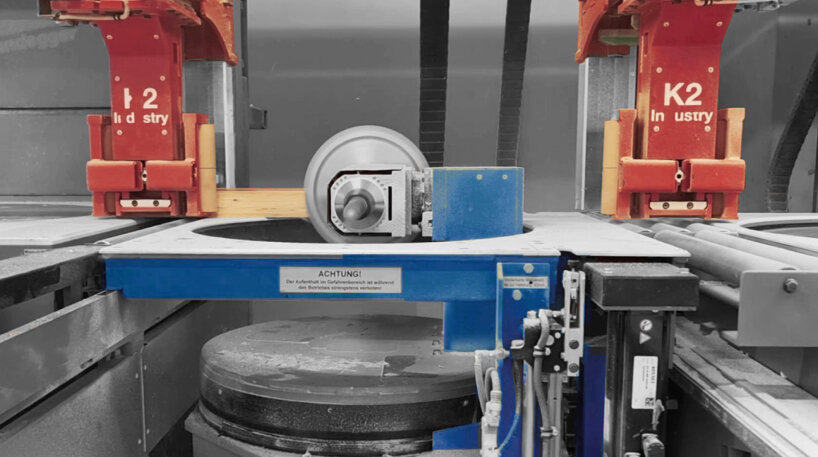

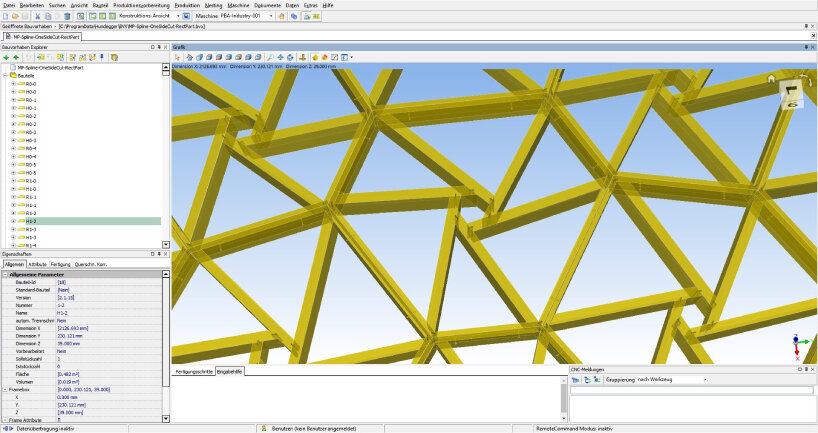

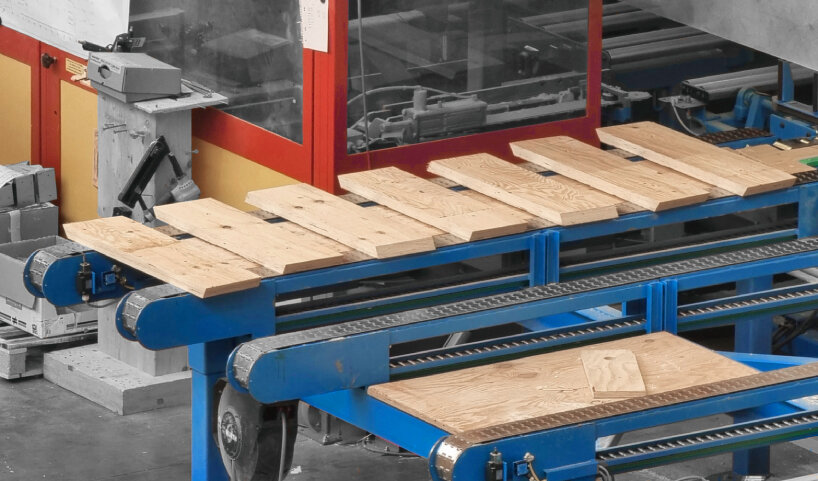

For larger structures, the research introduced a 24-hour industrial fabrication workflow. This process, powered by a custom data interface plugin generating XML-based CAM data, is designed for direct use by Hundegger K2 machines. This addresses interoperability challenges between data programming and industrial joinery operations.



A significant milestone of this project was the construction of a medium-scale demonstrator with a 15-meter span, utilizing 768 Laminated Veneer Lumber (LVL) beams. This system is fully reusable, adhesive-free, lighter, and highly material-efficient compared to cross-laminated timber (CLT) plates, while maintaining similar structural performance. The structure’s span was scaled from 7.5 to 15 meters, and the shell’s area expanded from 20 to 127 square meters, with construction completed in five days.



The XML-based CAM data interface enhances joinery machines’ capabilities, allowing for the processing of larger, denser timber beams, facilitating the construction of larger reusable structures. The project was constructed in the historical core of Augsburg, Germany, serving as a public space for a month before being disassembled, relocated, and stored for future reassembly for permanent use.



Scientific Reference: Adelzadeh. A., Karimian-Aliabadi. H., and Robeller. C., (2024). ReciproFrame Timber Gridshell: From CAM Data Interface Modeling to Operating Industrial Joinery Machine for Scaling up Reusable Timber Structures, In Proceedings of the 29th International Conference of the Association for Computer-Aided Architectural Design Research in Asia (CAADRIA) 2024, Singapore University of Technology and Design (SUTD), Singapore. Volume 3, 329-338.
