cantilever

cantilever by liam mcfadyen from new zealand

designer's own words:

definition: cantilever - a projecting structure that is attached or supported at only one end. scenario: cantilever opens doors to rooms that suit this metaphor i.e board rooms & meeting rooms. materials: brass with a chrome finish.

cantilever – standard view

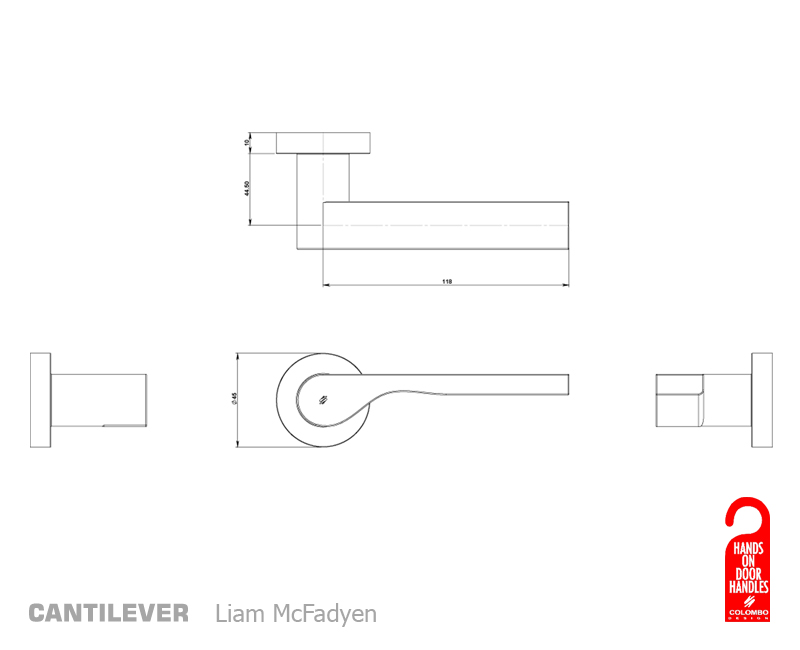

website__concept_3__page_2.jpg cantilever – technical drawing

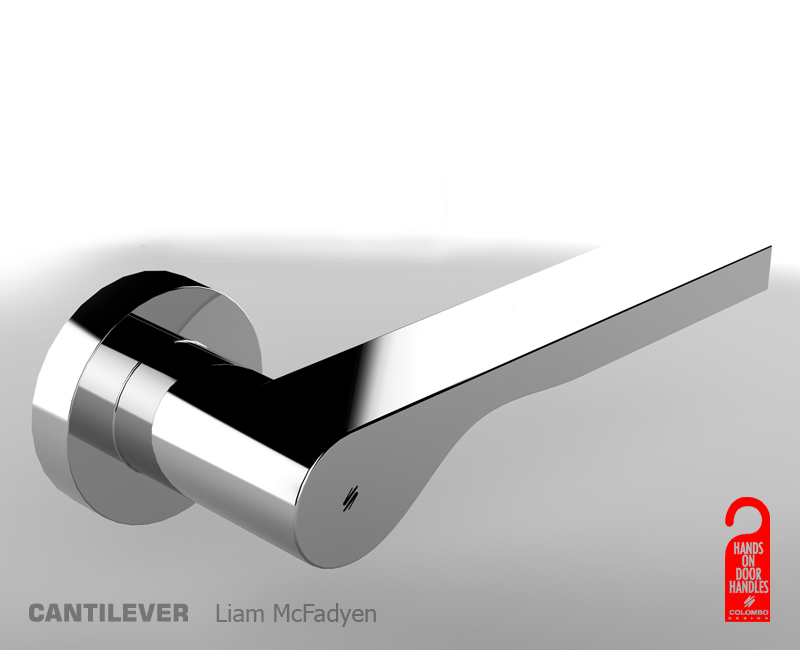

website__concept_3__page_3.jpg cantilever – perspective view
