misi

designer's own words:

the mounting plate is covered by a simple round rosette with sharp edges. the lever consists of a cylindrical component that mounts on the latching mechanism and a thin plate attached on it. the door handle has a sleek linear appearance; it doesn’t make any particular statement but it only satisfies its function. the cylindrical component and the round end of the plate attached on it, makes the design soft and not very edgy. it could be the new classic choice!
the thickness of the rosette is designed to be 10mm but if the mounting plate is thinner then the rose plate could be manufactured 7mm thick.

front view

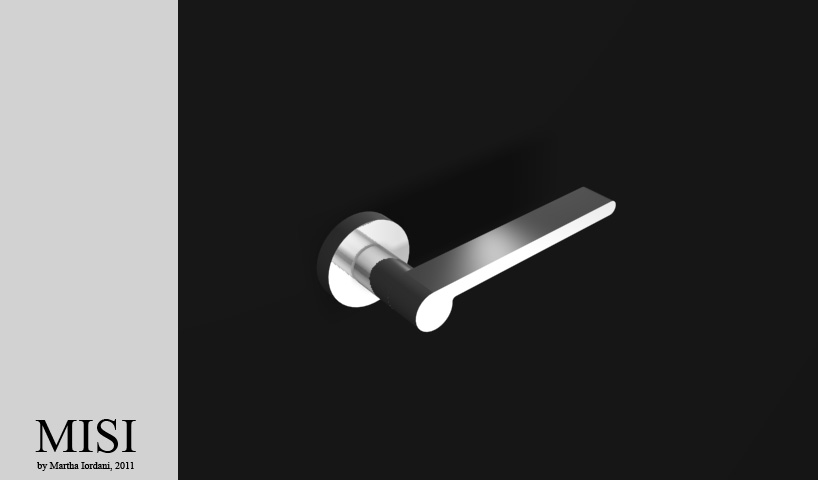

left side view

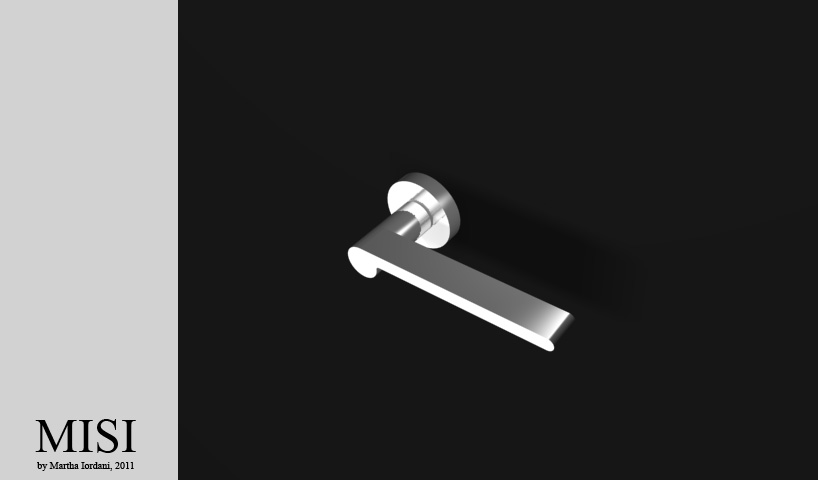

right side view

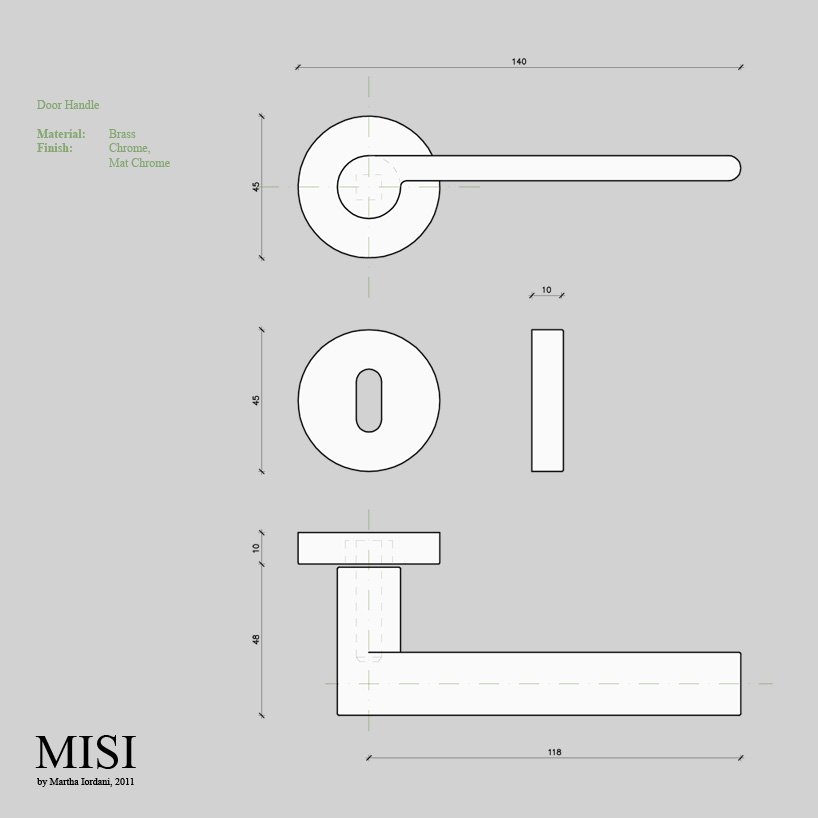

plan and elevation

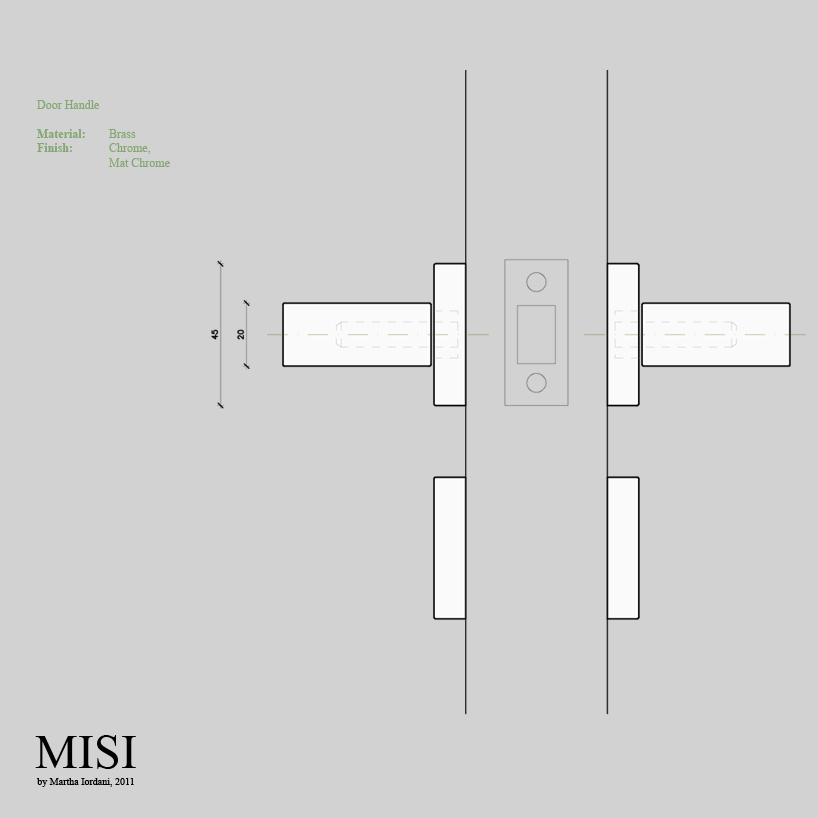

left side elevation
