Retaining walls are essential structural elements used to stabilize soil and prevent collapse in both residential and commercial projects. Whether built from concrete, stone, timber, or reinforced materials, these walls serve a dual purpose — offering critical support and enhancing aesthetic appeal. From gravity and reinforced block walls to anchored and sheet pile systems, each type suits specific conditions and load requirements. Key design considerations include load-bearing capacity, proper drainage, material choice, compliance with building regulations, and suitability to environmental conditions. With careful planning and the right engineering, retaining walls can create usable spaces and long-term stability on even the most challenging terrain.

Rule number one, never underestimate the importance of a retaining wall. As an essential structural element, retaining walls are used in construction and landscaping to stabilize soil and prevent collapse, holding soil in place, regardless of weather and land levels, come rain, wind, or shine. Found in residential and commercial projects, retaining walls not only serve a functional purpose but given the multitude of construction techniques available, they can also enhance the final aesthetic finish of your project. What are retaining walls? So, by their very nature, retaining walls must be stable and stiff to hold back the heavy weight of the ground and surcharge above. They are designed to support soil as well as lodgings on the retained surface which means it can be retained at different levels on each side of the retaining wall. Where ground is sloped a retaining wall will prevent collapse and create new usable spaces on uneven levels. The engineering of retaining walls means they counteract the forces from the weight of the soil and surcharge, with their reinforcement or anchoring mechanisms. This is why adequate retaining wall construction is crucial for ensuring the stability and longevity of your project.

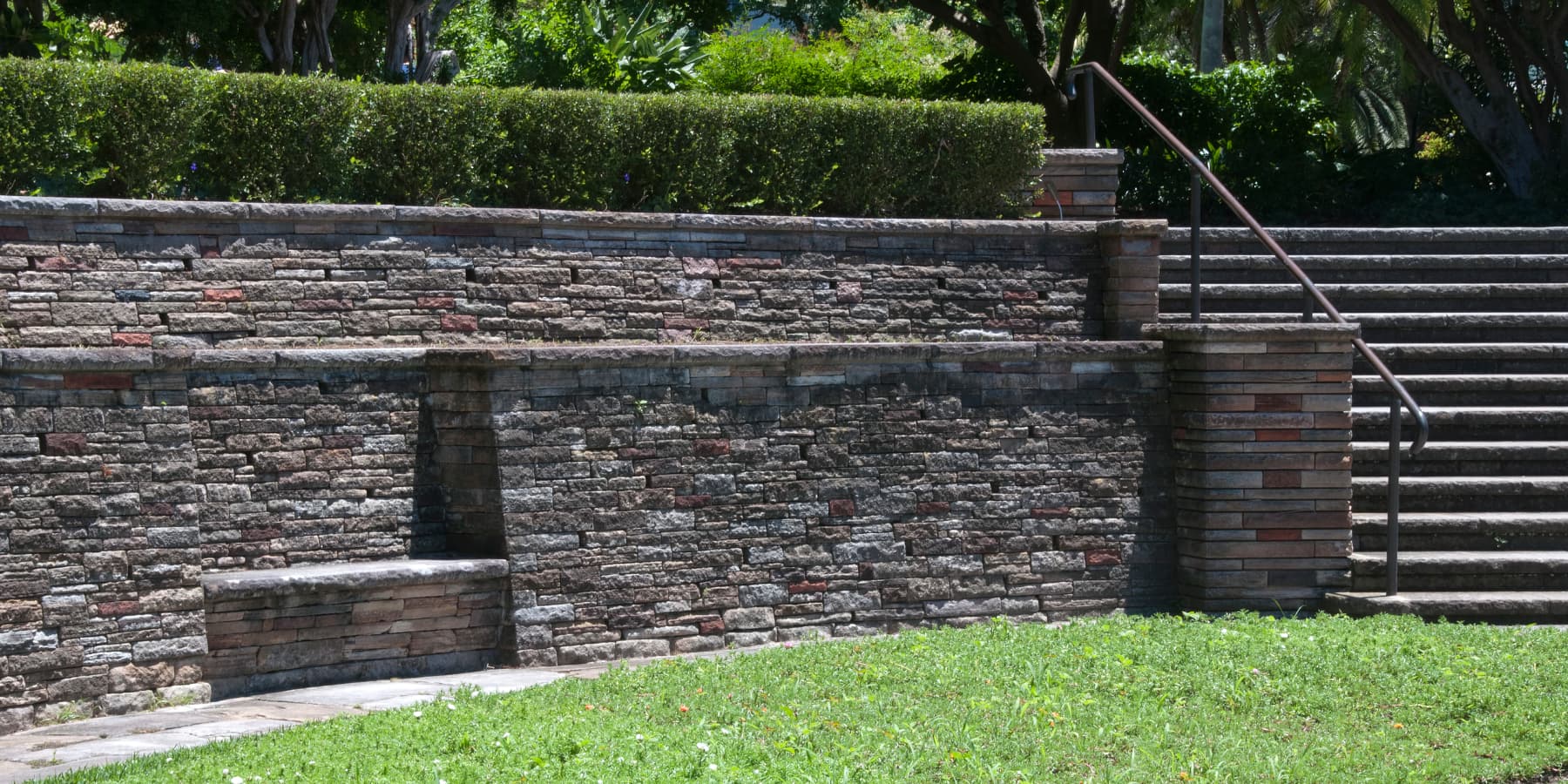

image courtesy of iStock

a breakdown of retaining wall types

As the name suggests, gravity retaining walls rely on their own weight to resist the soil pressure. Typically made from concrete, stone (gabion baskets), or brick, these walls are ideal for low-height walls where there’s plenty of space due to the significant footprint, they require to ensure stability. This kind of retaining wall is usually easy to construct, though it’s worth noting that gravity retaining walls don’t provide an economical solution for the stability needed for taller, steeper situations. With a reinforced concrete base and stem for extra stability, reinforced retaining walls are great for holding back soil for medium to high retaining applications up to six meters in height. Made from reinforced or concrete hollow blocks, they require careful engineering design for retaining wall stability to prevent sliding and overturning under pressure. This makes reinforced retaining walls popular in commercial, domestic, and infrastructure projects where greater stability is required without excessive material use.

Anchored walls have piles driven deep into the ground to provide additional reinforcement and strength. These retaining walls are great for heavy soil situations and deep excavations where space is limited, such as urban construction sites and areas with steep slopes, allowing for higher retaining wall structures while keeping the material use efficient. With such a complex installation process this option requires specialised design engineering. Made from steel or timber sleepers, the interlocking sheets of Sheet Pile or King Posts, are driven into the ground and are most used in waterfront, soft soil conditions, where space is confined. These retaining walls offer a temporary or permanent retaining wall solution and sometimes require additional lateral support for deeper installations. You’ll see this type of wall in places like ports, river beds, and excavation sites, as designed by a qualified structural engineer.

innovation in materials and techniques

Innovation is constantly designing new ways to design retaining walls and reinforced soil walls are one of them. They integrate geosynthetics or other kinds of reinforcement materials to stabilize the soil through compaction, giving better flexibility, durability, and value for money, which is why they are becoming the preferred choice for highways, railways, and embankments. Reinforced soil walls are lightweight and allow greater design adaptability, as well as being more environmentally friendly compared to other options.

Some projects also require a combination of a few elements from the different types of retaining walls to create a hybrid solution. This is most likely to happen in more specialist infrastructure projects such as underground stations and bridges, using latest materials and construction techniques to improve performance, sustainability, and cost-efficiency. Advances in engineering mean there are also new composite retaining wall systems that offer the same great strength and flexibility to suit a range of environmental conditions.

from drainage to durability: designing for stability & longevity

These are the main things you need to think about when planning your retaining wall. First is load-bearing capacity. Walls must be able to handle soil pressure and environmental forces such as weather, water, and what the soil is supporting at higher levels. Proper drainage must also be in place to prevent pressure buildup which could lead to the retaining wall being overloaded. Further, there are material options. These include concrete, stone, timber, or geosynthetics — your choice will depend on type of retaining wall, budget, durability, and environmental conditions. A retaining wall can also be an attractive feature of the landscape, or it might just need to do its job and offer structural stability. And, like all structural components, your retaining wall must meet all applicable building and safety standards. Some materials are more durable than others making them more suited to extreme weather conditions with minimal maintenance.

project info:

name: Planning your retaining wall
author: DSA Group
