archi tectonics: 497 greenwich building, new york city

‘497 greenwich building’ by archi-tectonics, new york, united statesimage © floto + warnerall images courtesy of archi-tectonics

located on the edge of soho, nyc, a former six-story warehouse was renovated by new york city-based practice archi-tectonics, with a new 11 story ‘smart loft’ building wrapping up and over it. the once dilapidated urban condition of abandoned warehouses is reinvigorated with the insertion of art galleries, retail and modern living. an amazing view over the river is facilitated through the introduction of the folded glass skin of the new structure.

the integration of the existing building with the new steel & glass structure instigates a mediation between past and present. in the narrow crease rising between the two structures a set of cantilevering balconies juxtapose and differentiate between the past and present, the urban and the private, thus inserting an interactive space into an otherwise neutral streetscape. the ‘497 greenwich building’ has as its main feature a fully custom and innovative glass curtain wall covering an area of 10,000 square feet, a light suspended waterfall of insulated bent vitrous panels, the first of its kind. the nyc building code is here re-interpreted; the horizontal plane of the traditional urban fabric is questioned by the insertion of a diagonal surface that bifurcates the facade plane. it integrates the strict building setback codes into the new folded vertical landscape of the glass facade. the crease as mediation and the glass inflections as spatialdevice allow for slippage between interior urbanism and urban privacy. the crystalline facets of the façade allow for the façade to move away from a separative 2D membrane into a 3D zone to be occupied, inhabited.

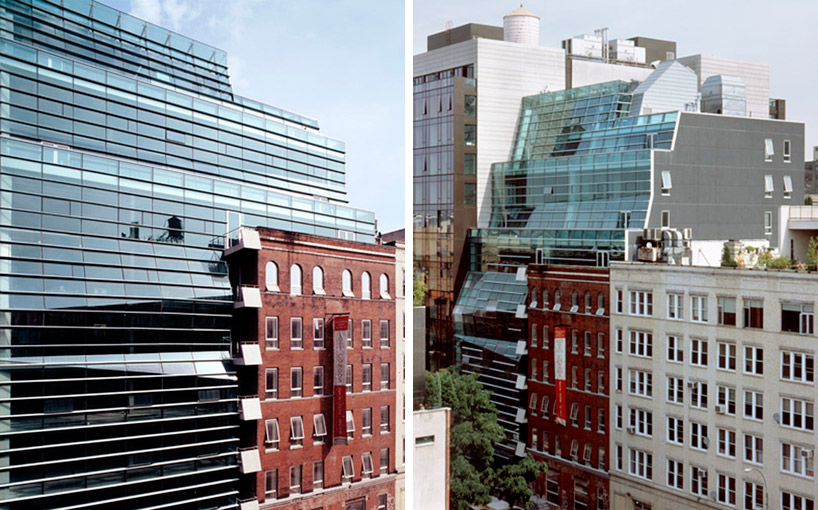

(left) front elevation(right) in contextimage © floto + warner

a central core provides the structure’s stiffness and contains vertical transportation and utilities, tying together the hybrid structure in an efficient manner. the building’s new structure is a light steel frame with cantilevering concrete floors, allowing for the curtain wall to ‘float’ off the structures as a curtain. the exterior walls, other than the glass wall, are shot-blast gray concrete block walls with insulated norwegian windows, a hybrid composition of aluminum and hardwood. all walls and floors are doubly insulated to create a comfortable living environment with low energy-use and perfect acoustics.

the building’s 23 loft apartments offer an open loft plan with integrated amenities but no interior divisions. each loft has been wired for electronic communication, satellite tv and a variation of heating and cooling systems. the large modern open-plan lofts offer an abundance of exterior spaces, balconies and roof terraces are situated on both west and east facades. residents can thus enjoy sunsets over the hudson river from the comfort of their living space.

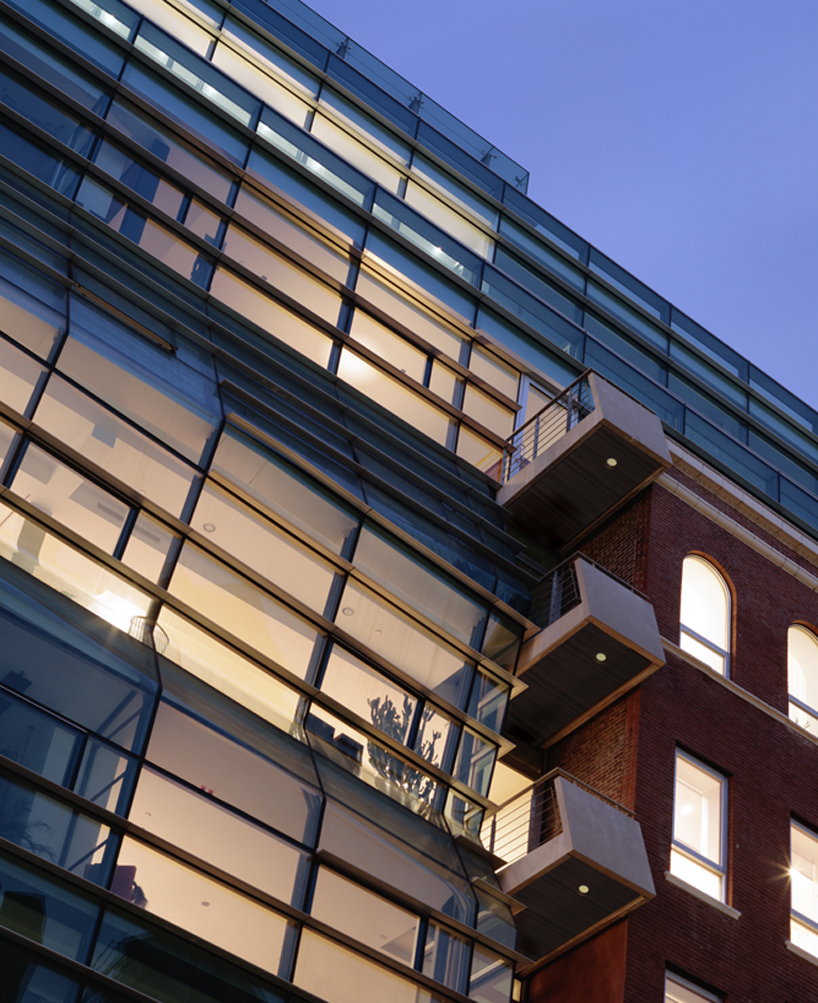

cantilevering balconies create a datum between the new and old constructionsimage © floto + warner

at the ground floor the glass facade folds out to form a structurally glazed ‘wing’ over the entry; here the delicate curtain wall meets a concrete structure of ramps, stairs, and platforms folding up away from the street surface. the main lobby and art gallery and retail spaces are all accessible by this concrete structure finished with a recently developed form of concrete terrazzo. this elongated entry zone fosters a filter to a more re-active streetscape, which eases the transition of the former industrial area into an integrated residential neighborhood.

inside the curtain wallimage © floto + warner

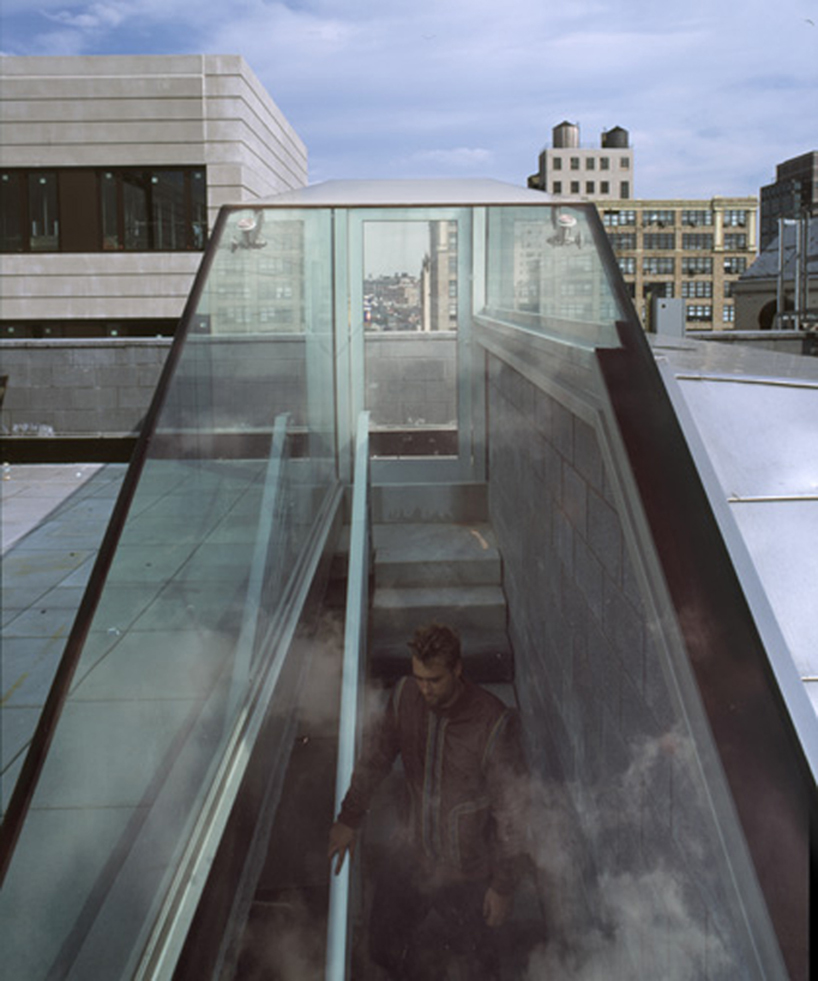

roof accessimage © floto + warner

image © floto + warner

fabrication:

the following performance-based study suggested the differentiation between the facade’s structural [steel] components and the waterproofing [aluminum] industrial design intelligent components, thus maximizing the facade’s performance and minimizing costs and effort. elegant small steel spacers separate thin steel verticals from a suspended structure of insulated glass planes and horizontal aluminum fins, floating, folding horizontal bands replace the static grid. the further digital analysis of the facade’s structure led to the decision to actually bend the glass panels to minimize forces and create completely transparent seams. the result was that the glass was folded in barcelona, spain, the aluminum mullions custom-extruded in hong kong to match the facade’s angles, and finally all was assembled in brooklyn. installation was then a simple action of suspending the glass panels off the steel structure on site. the [electronic] communication was simply through digitally transmitted 3D computer drawings between barcelona, hong-kong and brooklyn, the 2D drawings were no longer made by the architect, but the manufacturers made all 2D documents, thus minimizing mistakes, and facilitating a fast manufacturing process. the installation was no longer based on vif [verify in field], but on vic [verify in computer]. site installation now moves away from a site oriented construction method to a construction method which is based on the digital data of abstract computer drawings, the site had to adjust to that abstract model.

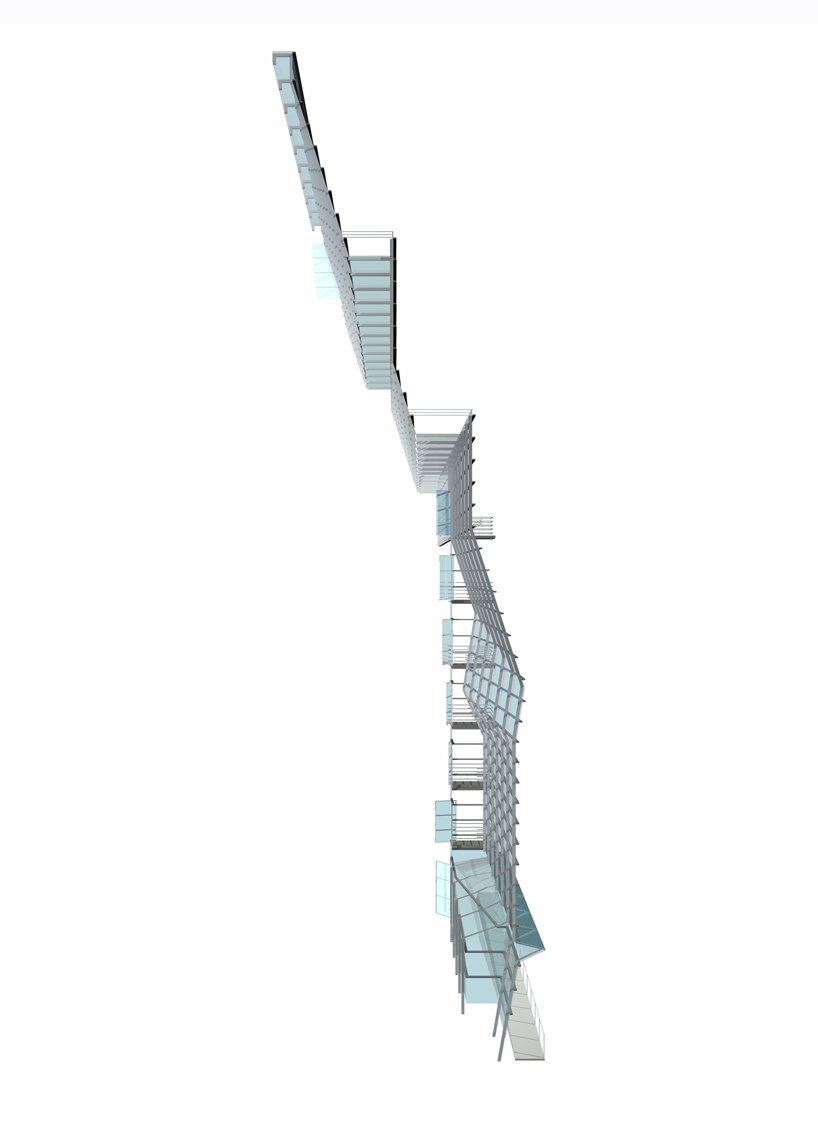

curtain wall section

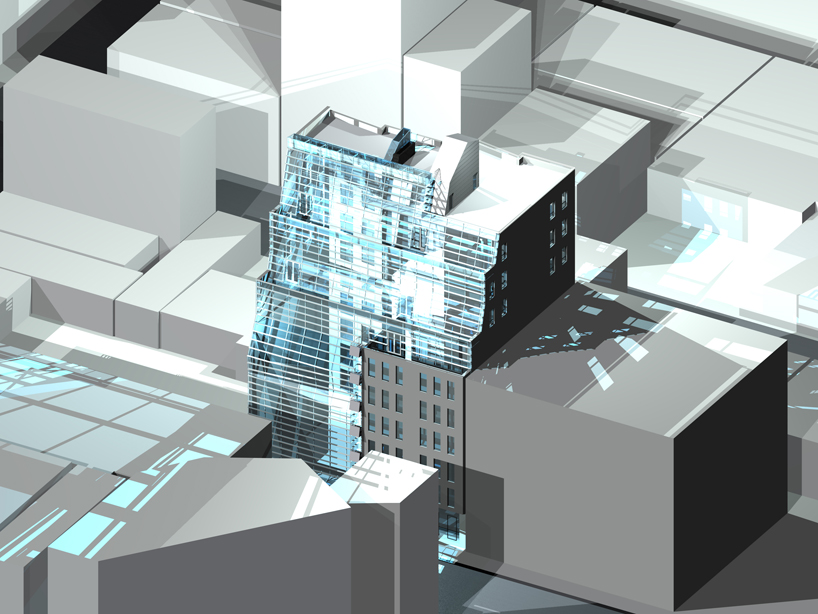

axonometrix of site

exploded perspective
