day birdview from hong kong

HKSARG and SMPG jointly planed to create a new boundary control point passenger at liantang / heung yuen wai in the north-eastern new territories of hong kong and luohu in shenzhen to serve the cross-boundary goods vehicles and passengers traveling between HK and SZ east.

symbolization: a complementary and mutual beneficial partnership, hong kong and shenzhen will join the globalization as an integrated image and get benefit. with intimate collaboration, hong kong-shenzhen boundary control point will be a symbolization of close communication. the scheme concept comes from ‘link’: many single units can be twisted into a solid and integrated form. this scheme, a twisted link, indicates multi-level and deep cooperation between hong kong and shenzhen on the economical , cultural and more levels.

twisted link: based on a basis shape—a cuboid, a dynamic building shape will be created from twisting one end 90 degrees clockwise. this building shape can weaken the boundary between building envelopment. after deformation, the roof turns into wall, or wall into floor. this deformation also indicates the multi-level combination as life-style and political formation between hong kong and shenzhen. it also brings a new experience about building internal space.

separate-location, same schema: on the traditional clearance schema, the exit and entry halls are located on the same floor which causes dull and vapid spatial behavior. moreover, the exit hall from hong kong and the exit hall from shenzhen are located on different floors which can make some cross-boundary passengers confused. taking ‘people-oriented’ principle, the building shape is adjusted according to human’s need, two clearance streamlines are combined into one, two departure halls are both set on the 2nd floor.

a low-scope path leads passengers to the arrival hall and avoid too much dependence on vertical transportation. meanwhile, the people from different directions can have a visual intersection and get a full of abundance and enrichment image of passenger terminal building. a simple action ‘twist’ can handle the streamline, structure and building design reasonable and provide building user with a new space experience.

environmental friendliness: the middle part of building shape will be compressed to achieve the internal space need of new streamline and optimized the landscape superiority of shenzhen river, avoid compressive feeling and a city vision separation from huge building volume.

twisted llnk by liantang+heung yuen sunrise view from PTB podium of LT

twisted llnk by liantang+heung yuen sunset view from luosha road

twisted llnk by liantang+heung yuen view of within pedestrian link to departure hall of HYW

twisted llnk by liantang+heung yuen master plan

twisted llnk by liantang+heung yuen conception

twisted llnk by liantang+heung yuen circulation diagram

twisted llnk by liantang+heung yuen podium plan

twisted llnk by liantang+heung yuen plans

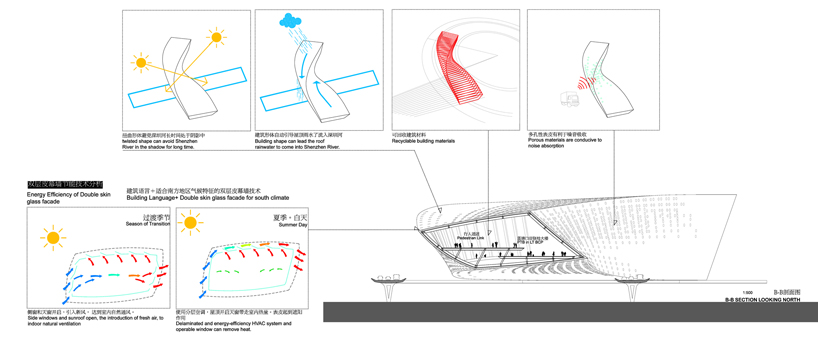

twisted llnk by liantang+heung yuen green design
