a twisted table fully interlocked

this is the prototype of the twistable, an interlocking table-design. first of it’s kind, this prototype is set out to be the example for numerous future variations in size, height, number of legs, fullness, curvesize, materials, and so on. this prototype is watercut out of high quality birchpanels. Many materials can be used such as 100% recycled pvc, full wood panels, concrete top, pmma, ecoboard top, etc. the legs, arms and top were designed to make full use of the panel when cutting, with a minimal loss of material. parts are sharing contours when cutting, thus reducing cuttinglenght up to +40%. also; having two parts share one cuttingline reduces waste to allmost zero.

the whole construction is designed to interlock in such way that the weight of the table itself locks the different parts and levels the top. the two ‘gear-alike’ sliding locks in the heart of the twisted frame are designed to be able to slide in one leg sideways, using the 2D character of the sheet while transposing it to 3D appearance. the twistable is available in numerous sizes and variations.

volken de vlas designs and produces furniture and interiour objects using durable and recycled materials. in our designs, natural and recycled materials are paramount. we search for inventive and logical solutions for joining, finishing, production and use of sources and materials. in our studio we work on unique pieces and small to medium series with great eye for detail and finish.

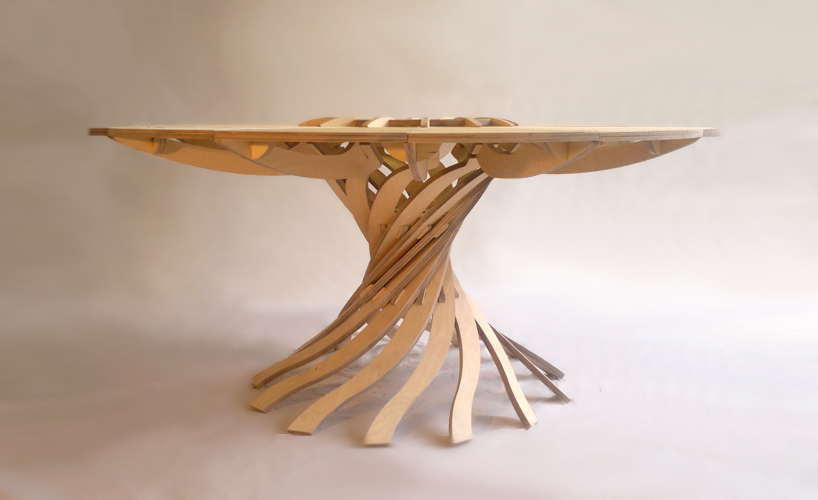

volken de vlas designed the twistable, an interlocking design concept pure 2d watercutted parts transposed to 3d appearence

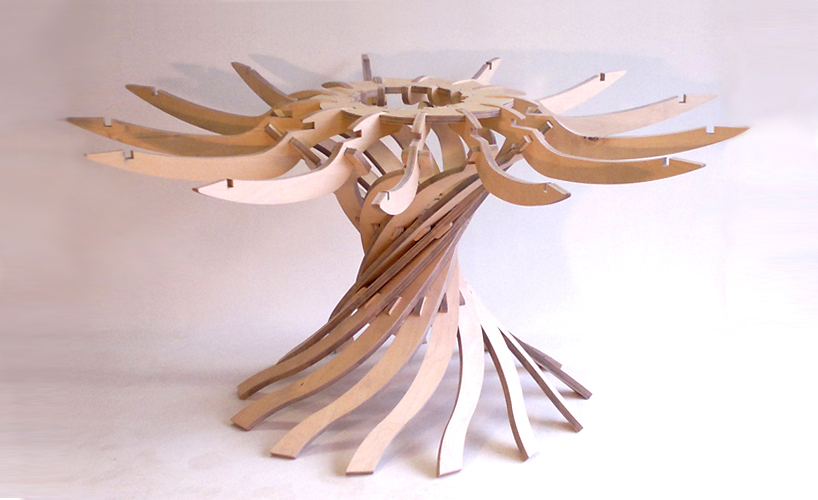

volken de vlas designed the twistable, an interlocking design concept all parts interlock by the table it’s own weight

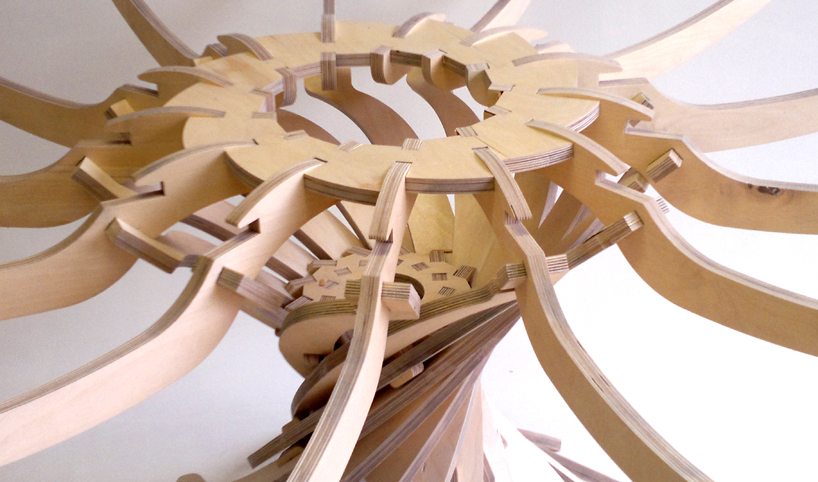

volken de vlas designed the twistable, an interlocking design concept the center ring levels the arms and top

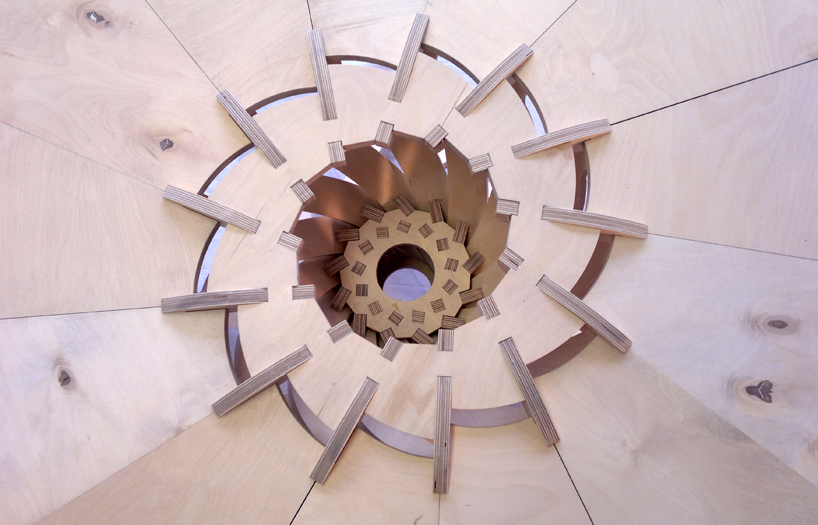

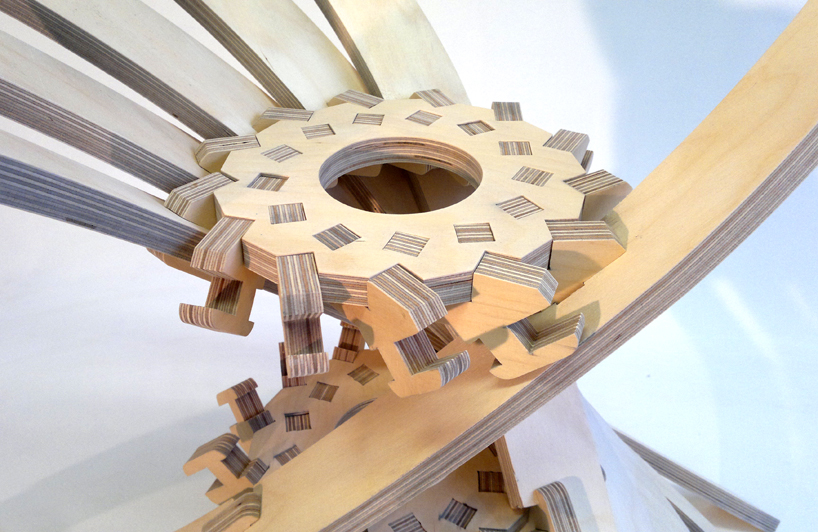

volken de vlas designed the twistable, an interlocking design concept close up of the watercutted construction

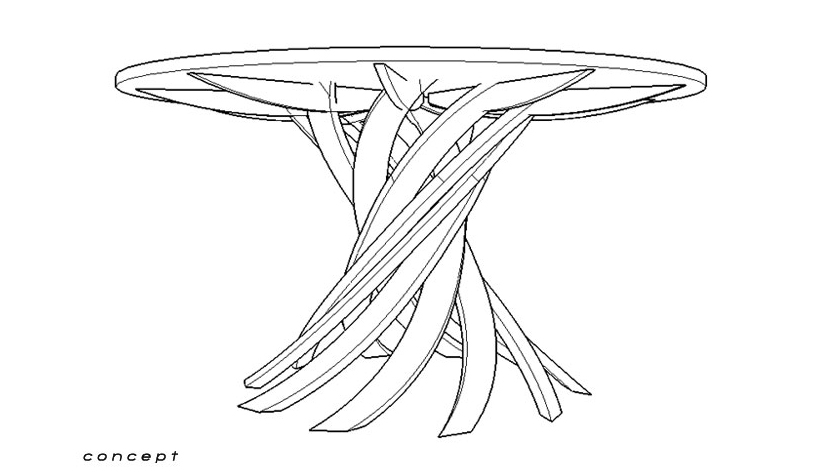

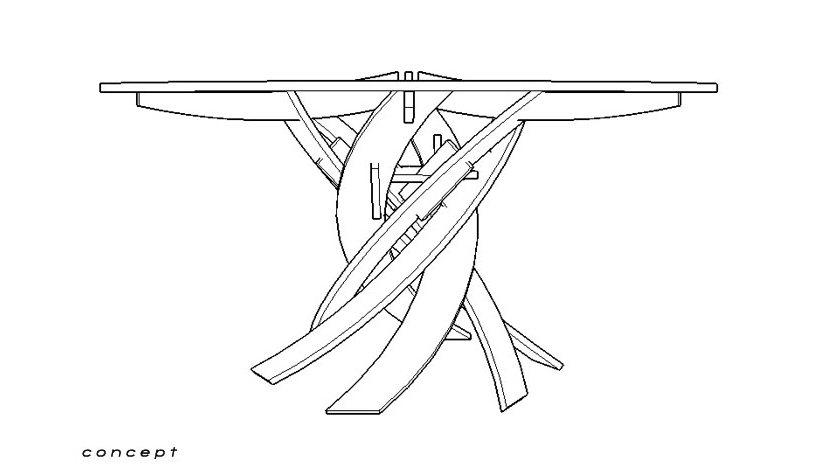

volken de vlas designed the twistable, an interlocking design concept the tree shaped concept can be translated into numerous variations

volken de vlas designed the twistable, an interlocking design concept the center is designed to be able to have the legs slide in sideways using their 2d character

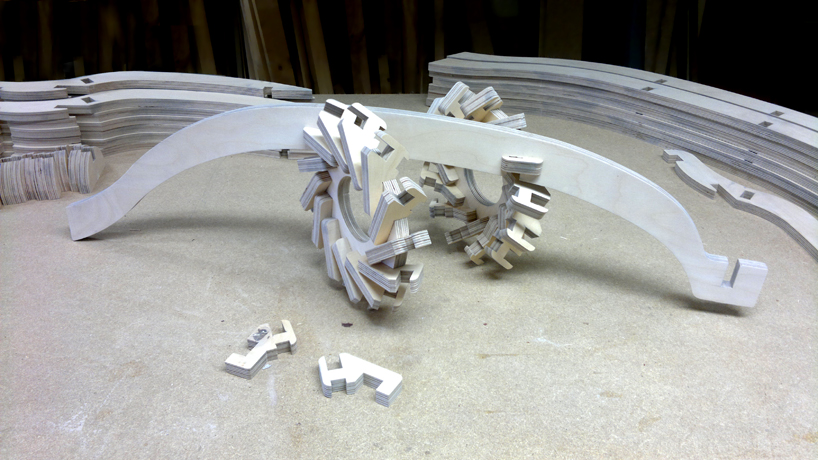

volken de vlas designed the twistable, an interlocking design concept first assembly in the workshop

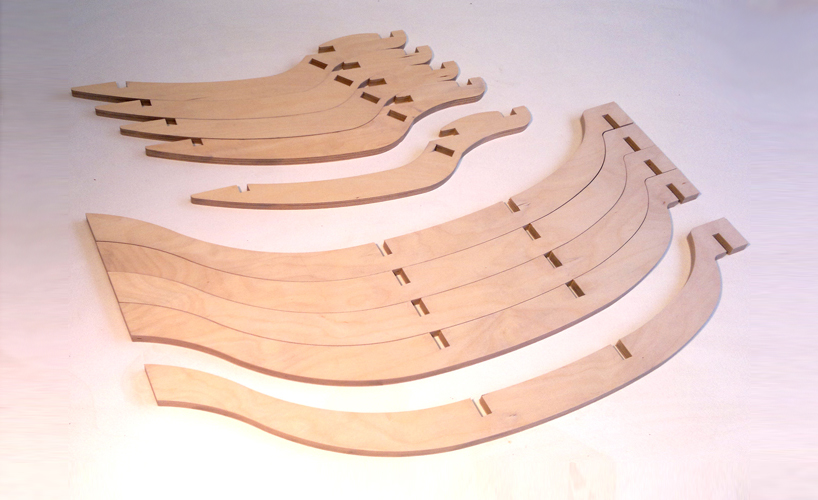

volken de vlas designed the twistable, an interlocking design concept the different parts were designed to share cuttinglines thus reducing waste and cutting-time

volken de vlas designed the twistable, an interlocking design concept concept of a 6-legged varation

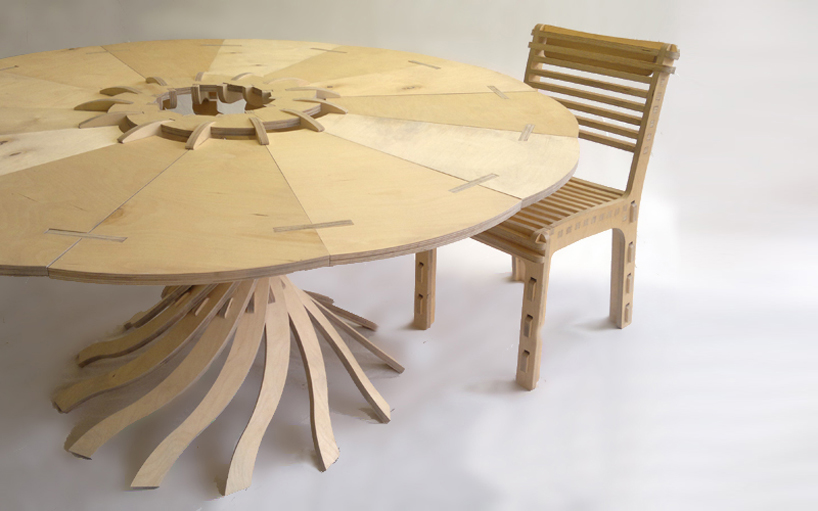

volken de vlas designed the twistable, an interlocking design concept numerous variations are possible

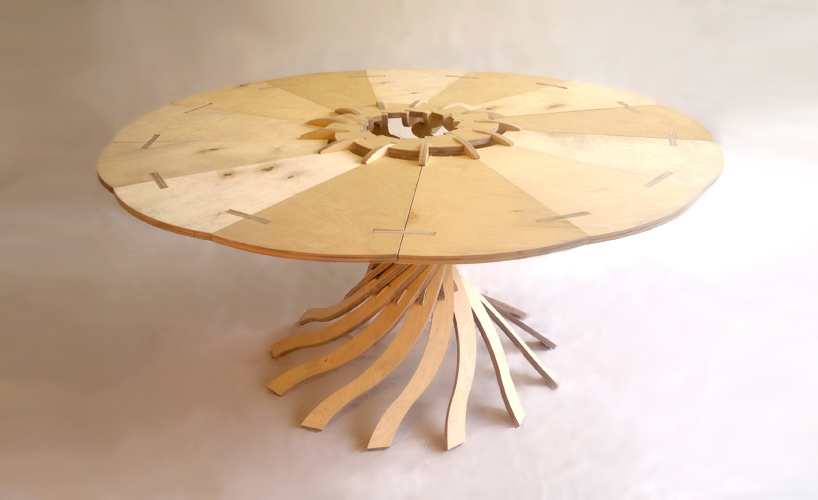

volken de vlas designed the twistable, an interlocking design concept for the prototype we used birch panels though many kinds of sheet material can be used
