watch this 3D-printed robotic gripper pick up, hold and release objects without electronics

Flexible and soft robot with built-in gravity and touch sensors



A group of roboticists at the University of California San Diego, in collaboration with researchers at the BASF Forward AM, has produced a 3D-printed robotic gripper embedded with fluidic control circuits that works well enough not to need the use of electronics. By using built-in gravity and touch sensors, the flexible 3D-printed robotic gripper can pick up, hold, and release objects. The research team says that no such gripper existed before this work, at least without employing the help of electronics to make it work.

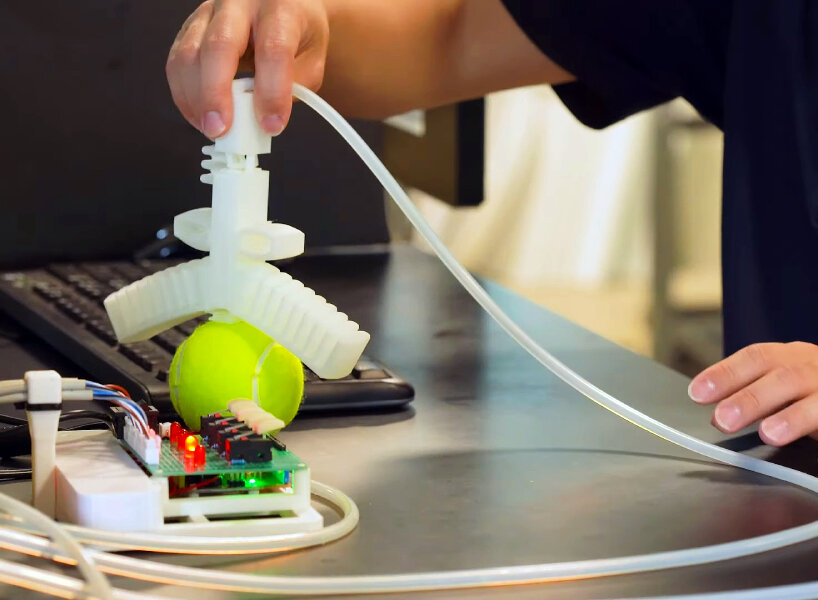

The 3D-printed robotic gripper has two claws that can both grip and release objects. It functions through a series of valves resembling tiny doors that open and close. When the user turns the gripper horizontally, the airflow inside the valves changes, and this triggers the two fingers of the gripper to release whatever they are holding. So whenever the user needs to pick up something, they just need to press the 3D-printed robotic gripper onto the object until the valves get triggered and the claws close up. If they want to let go of the item, they just turn the gripper sideways, and it will automatically release it.

3d printed robotic gripper
video stills by University of California San Diego via Youtube





3D-printed soft robotic gripper with pneumatic valves



Soft robots are made from flexible materials that are often powered by air. Traditionally, making them was a complex and manual process, but researchers found a way to make them using 3D printing, specifically a method called Fused Filament Fabrication (FFF). The 3D printing technique allows them to create more intricate and complex structures with less manual work. But there were challenges with this 3D printing method for soft robots since the printed robots were often too stiff and had leaks.



To solve this problem, the roboticists and researchers of the University of California San Diego and BASF Forward AM came up with a design that allowed them to print soft and airtight robotic devices with embedded fluid control components (actuators and valves) all in one go. They successfully printed actuators (parts that move) that were much softer than previous attempts and could bend into a complete circle. They also printed pneumatic valves (parts that control airflow) that could handle high pressure with low control pressure.



By combining these soft actuators and valves, they created a fully 3D-printed gripper that works without any electronics. The gripper then – a research product by Yichen Zhai, Albert de Boer, Martin Faber, Rohini Gupta, and Michael T. Tolley – can maintain its softness and airtightness while being made in a single 3D printing process that takes about 16 hours and 19 minutes. There is also no need for additional manual work or fixing defects after printing, making the process repeatable and accessible to others.

3d printed robotic gripper

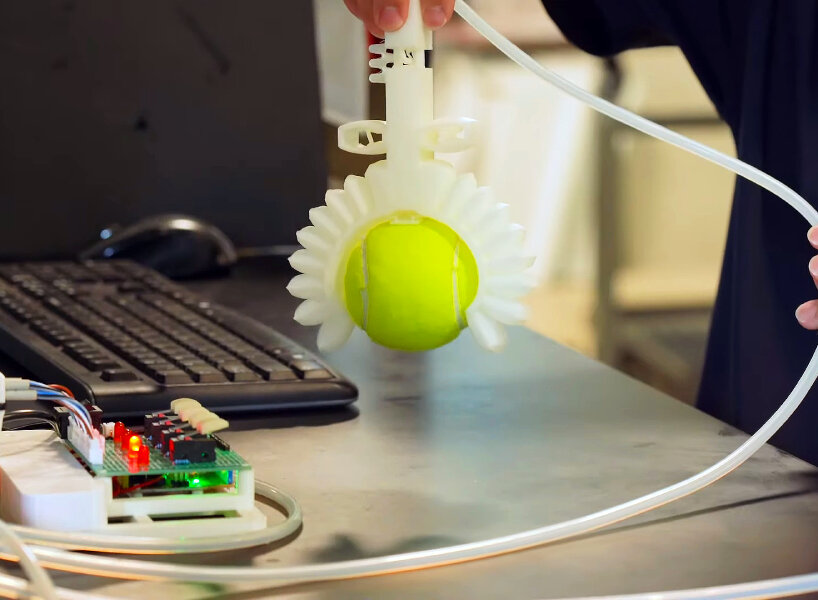

the 3D-printed robotic gripper is embedded with fluidic control circuits that help it pick up and let go of objects

3d printed robotic gripper
just by turning it sideways, it drops the object it is holding

3d printed robotic gripper
close-up of the valve that triggers the hold

3d printed robotic gripper
the 3d printed robotic gripper is also flexible thanks to the method called Fused Filament Fabrication

3D-printed-robotic-gripper-without-electronics-UC-san-diego-basf-designboom-ban

University of California San Diego and BASF Forward AM develop the 3D-printed robotic gripper
