at the EMPA and EAWAG NEST building in dübendorf, eight ETH zurich professors are collaborating on a three-storey DFAB HOUSE made using predominantly digital processes. built using a two-meter high construction robot, the machine works by moving autonomously on caterpillar tracks.
ETH zurich build DFAB HOUSE robots 3D printers designboom 01





a steel wire mesh fabricated by the robot serves both as formwork and as reinforcement for the concrete. thanks to the dense structure of the steel wire mesh and the special composition of the concrete mix, the concrete stays inside the grid and does not pour out. the result is a double-curved, load-bearing wall that will characterize the architecture of the open-plan living and working area on the ground floor. a smart slab will then be installed – a statically optimized and functionally integrated ceiling slab, the formwork of which was manufactured using a large-scale 3D sand printer.

ETH zurich build DFAB HOUSE robots 3D printers designboom 02





smart dynamic casting technology is being used for the façade on the ground floor: the automated robotic slip-forming process can produce bespoke concrete façade mullions. the two upper floors, with individual rooms, are being prefabricated at ETH zurich’s robotic fabrication laboratory using spatial timber assemblies; cooperating robots will assemble the timber construction elements.

ETH zurich build DFAB HOUSE robots 3D printers designboom 03





the DFAB HOUSE is distinctive in that it was not only digitally designed and planned but is also built using predominantly digital processes. with this pilot project, the ETH professors want to examine how digital technologies can make construction more sustainable and efficient, and increase the design potential. the design and planning of individual components were digitally coordinated, and these are now manufactured directly on site according to this data. as a result, the conventional planning phase is no longer needed. as of summer 2018, the three-storey building, with a floor space of 200 m2, will serve as a residential and working space for EMPA and EAWAG guest researchers and partners of NEST.

ETH zurich build DFAB HOUSE robots 3D printers designboom 04

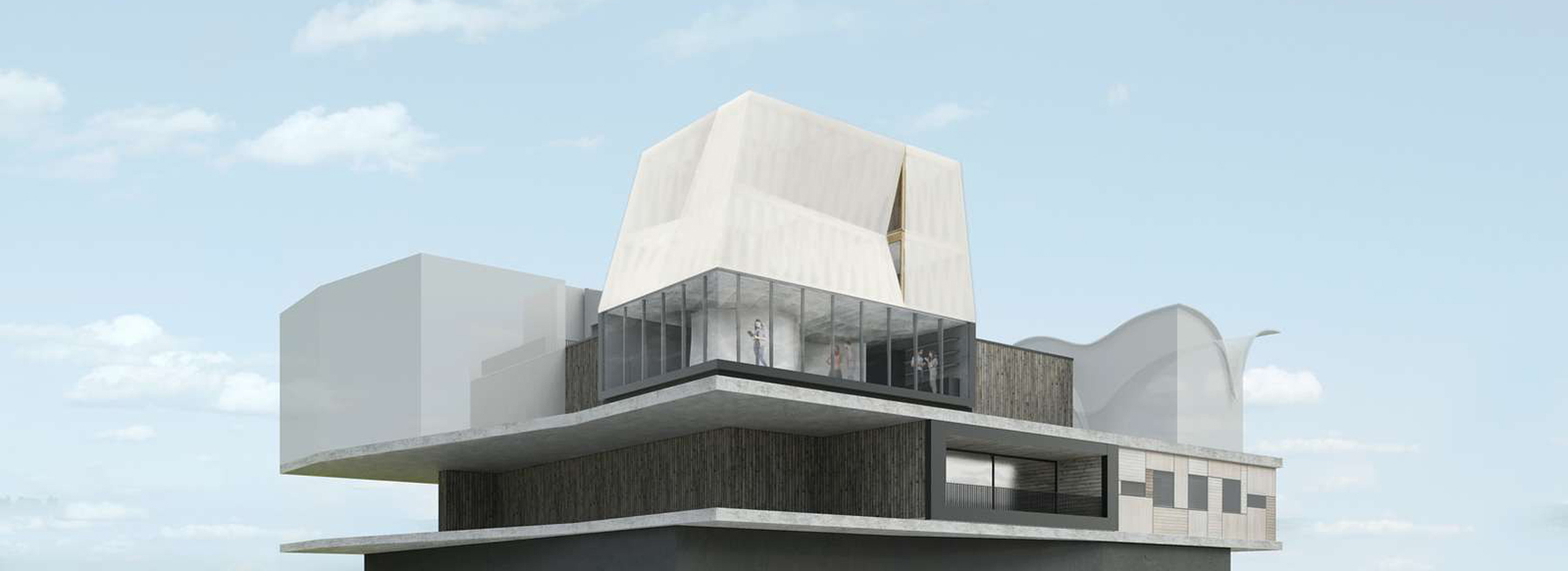

computer generated visualisation of the DFAB HOUSE
