created by german designer jakob kilian, ‘unfolding space’ is a wearable sensory substitution device for the visually impaired. built into a glove, the prototype allows users to ‘see’ where they are walking by a map of vibrations. this is achieved using a depth camera that generates a 3D picture of the wearer’s surroundings and 9 motors that haptically project the generated image onto the back of the user’s hand as a pattern of vibrations.

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

all images courtesy of jakob kilian (also main video)





the main idea behind the project is to afford a greater level of autonomy to those with visual impairments or total blindness. furthermore, kilian intends that the device will eventually replace the traditional white cane. with ‘unfolding space’, the wearer can interactively explore their surroundings with this new depth perception to locate and avoid obstacles and navigate themselves in unfamiliar environments. the location of a vibration conveys an object’s relative position in space, while the strength of the vibration represents its distance.

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

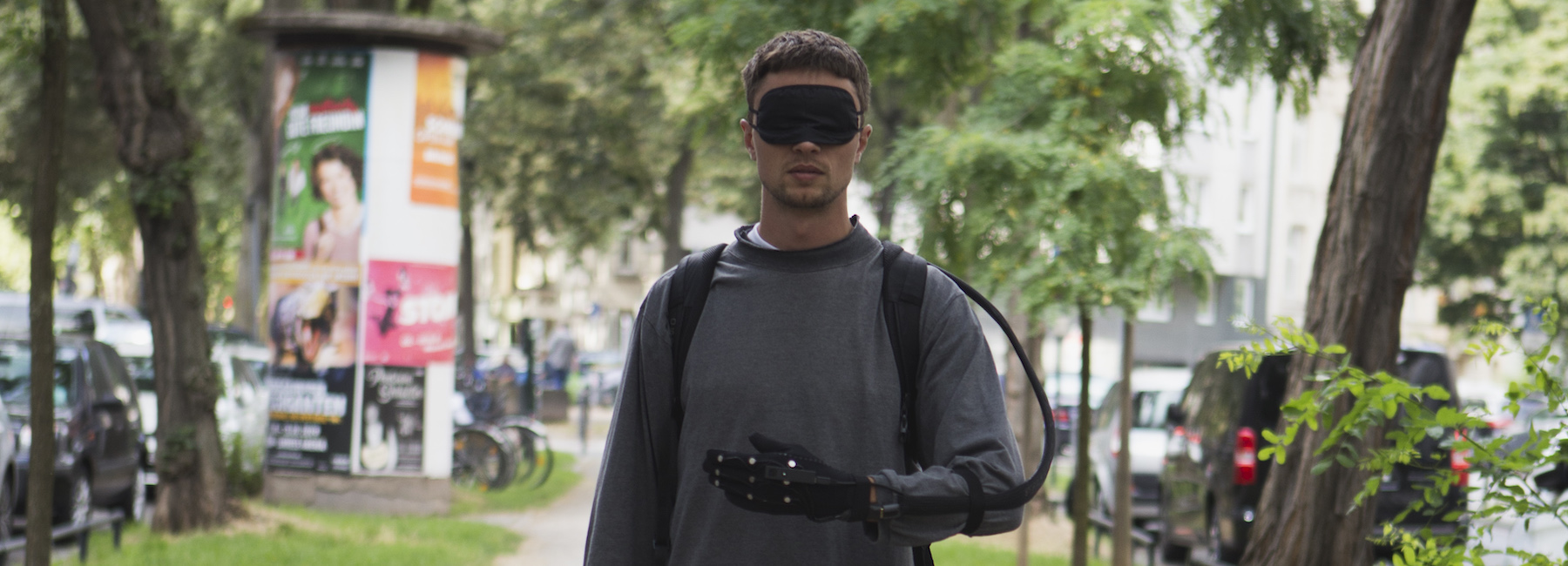

a blindfolded person testing the device





kilian’s technology is based on his bachelor’s thesis research into sensory substitution: a phenomenon by which the function of one missing or dysfunctional sense is replaced – or substituted – by stimulating another. he wrote the theoretical paper whilst studying integrated design at köln international school of design in germany and the whole project is available open source to designers and commercial developers.

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

the device intends to offer greater autonomy to those with visual impairments





through a rapid prototyping approach, kilian has been able to develop and manufacture the device for less than €500, which is more affordable than most sensory substitution devices currently available. ‘unfolding space’ won the toby e. rodes award at the kölner design preis in 2018, and earned special recognition at the lucky strike junior designer award 2018. it also won the golden pin concept design award 2019 design mark and could win a share of the $39,000 best design prize in december 2019.

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

the user uses the vibrations to cross the tracks

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

kilian has been able to develop and manufacture the device for less than €500

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

close up view of the wearable device

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

the vibration motors are positioned over the glove

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

the prototype worn by a user

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

users can ‘see’ their surroundings

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

the vibrations are mapped onto the back of the wearer’s hand

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

the 3D depth camera

unfolding space by jakob kilian lets the visually impaired see with their hands designboom

an early version of the working prototype





project info:



project name: ‘unfolding space’

design: jakob kilian



designboom has received this project from our ‘DIY submissions‘ feature, where we welcome our readers to submit their own work for publication. see more project submissions from our readers here.



edited by: lynne myers | designboom

  • I am guessing other areas of the human’s body would be also responsive to tactile stimulation. For example – head, neck area would be suitable and more natural position for such a device. This would free the arm (hand) for other uses. Otherwise the concept is very usable, and based on my prior experiences with tactile stimulation for sound/speech recognition, very effective.

    Tad Jurkiewicz says:
  • Hey Tad,
    thanks for your words and feedback. In fact I did several prototypes for the neck, head, forehead and torso… I chose the hand because you can move it in all dimensions and rotate it on all axis. This speeds up the learning process – as science believes one can only learn sensory input by feedback loops of actions and sensory input, see e.g. enactivism. Furthermore it would be quite demanding and sometimes degrading, to shake and move head or torso to get new input…

    And jeah, it is a super exciting field of research!
