designed by pierpaolo lazzarini from italian company jet capsule, the I.F.O or ‘identified flying object’ is a proposed two seater drone/copter vehicle. the chassis, composed of a main central capsule cockpit, measures two meters in diameter and is surrounded by a carbon fiber disk with an overall dimension of 4.70 meters.

jet capsule identified flying object designboom
the I.F.O. carbon body structure





jet capsule‘s I.F.O. is fuelled by eight electric engines, able to push the flying object to an estimated top speed of about 120 mph. different energy resources are provided from various batteries located in the disk and with an additional battery pack placed at the center of the capsule body, the estimated flight autonomy ranges between sixty and seventy minutes. for a smooth landing, the vehicle has six folding and extending suspensions — which makes it possible to access the I.F.O through an elevator, generated from the lower sub-spherical body. otherwise, the capsule can be access by two removable bridges, available on any specific landing station.

jet capsule identified flying object designboom
doors of the cockpit opening up

jet capsule identified flying object designboom
the central shell measures two meters in diameter





I.F.O
video © jet capsule

jet capsule identified flying object designboom
I.F.O. can be accessed by two removable bridges

jet capsule identified flying object designboom
the vehicle is fuelled by eight electric engines

jet capsule identified flying object designboom
the estimated flight autonomy ranges between sixty and seventy minutes.

jet capsule identified flying object designboom
the I.F.O in different colors

jet capsule identified flying object designboom

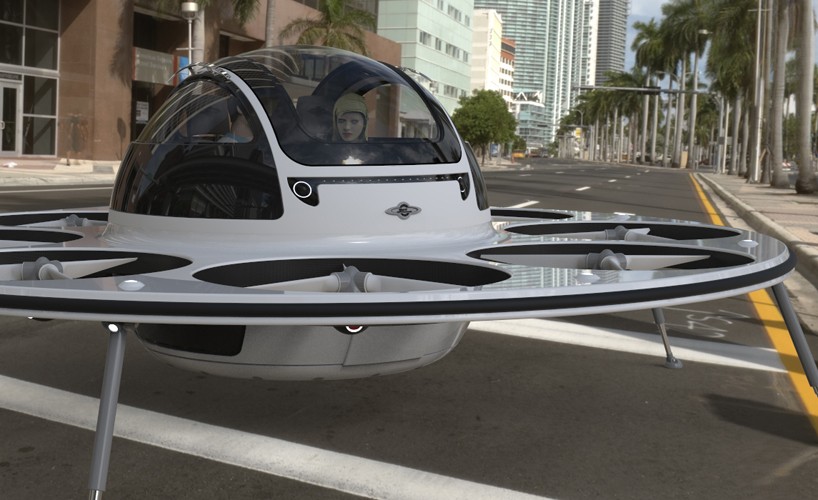

landing on the streets

jet capsule identified flying object designboom
the I.F.O can be accessed via an elevator

jet capsule identified flying object designboom
in case of an emergency, a parachute is released

jet capsule identified flying object designboom
measurements for jet capsule identified flying object





designboom has received this project from our ‘DIY submissions‘ feature, where we welcome our readers to submit their own work for publication. see more project submissions from our readers here.



edited by: lea zeitoun | designboom
