panasonic has previewed their unique ultra-wide angle camera system (UWCS) that stitches together the images of four 720p high definition cameras in real time to create a 64:9 panoramic image. designed for sports coaching analysis, such as football and soccer games, the unit provides a 160-degree (4 x 16:9) wide angle view. because of this high-speed optical stitch, the entire field can be captured at once, so the moves and formations of all players can become clearly visible.

the 5120 x 720 resolution system operates on visual cues so players do not need to wear tags or tracking devices for it to work. it functions by visually tracking players means that coaches can effectively analyze games as well as practice matches, consequently increasing the actual amount of ‘coaching time’ for clubs. the automatic PTZ (pan/tilt/zoom) adjustment function for the four camera angles means the system is ready to use within minutes of positioning and connection.

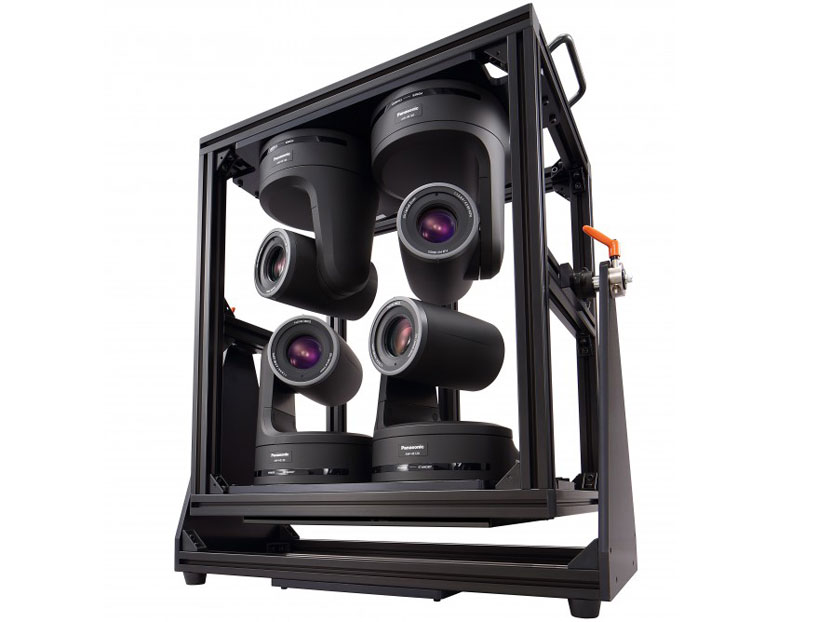

the system stitches together the images of four 720p high definition cameras in real time to create a 64:9 panoramic image

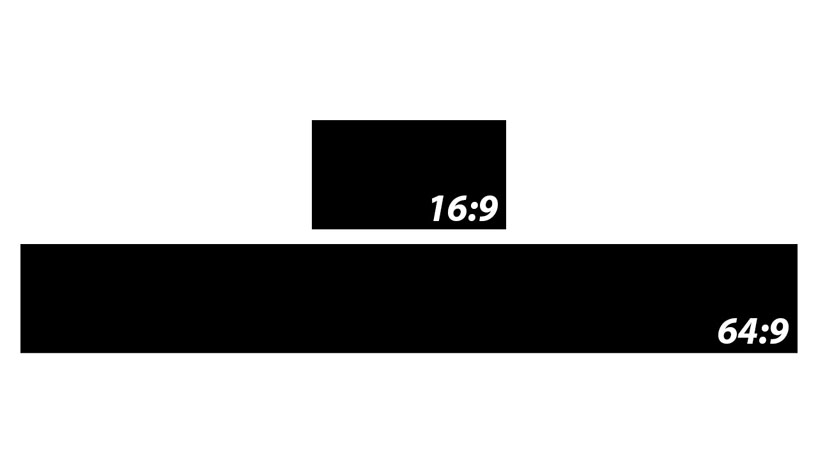

16:9 ratio vs 64:9 ratio

project specifications:

cameras: AW-HEW 120 x 4


viewing angle: 160-degrees (horizontal)


ND filter: 1/4, 1/6, 1/64


output: HD SDI x 4


power consumption: 95 w


operating temperature: 0-40 degrees c


operating humidity: 5% to 80% (no condensation)


dimensions: 70cm x 60cm x 36cm


weight: around 40kg
