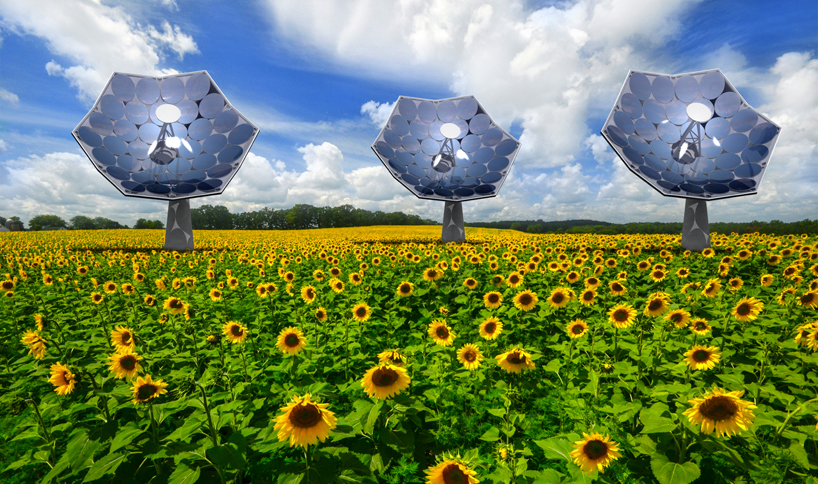

sunflower solar panels provide electricity & heat to remote locations
images courtesy of IBM research and airlight energy







airlight energy and IBM research have announced plans to bring affordable sunflower-shaped solar panels that provide remote locations with electricity and heat, to the market by 2017. as a branch of airlight, dsolar’s ‘high concentration photovoltaic thermal’ (HCPVT) system concentrates the sun’s radiation 2,000 times and converts 80% of it into useful resources. the 12 kilowatts of electrical power and 20kw of heat generated is enough to supply several average homes which makes it ideal for those in isolated areas.

sunflower-solar-panels-designboom02







the ‘HCPVT’ resembles a 10-meter-high sunflower and uses a 40 square-meter parabolic dish made of patented fiber-based concrete that sits on a sun-tracking device. this unit is covered with 36 elliptic mirrors made of thin recyclable silver coated plastic foil, that are curved using a vacuum. the reflective surface area focuses radiation onto several micro-channel liquid-cooled receivers that are populated with a dense array of 1x1cm squared photovoltaic chips.

sunflower-solar-panels-designboom03
the structure can power several homes in remote locations







the dishes are encased with a large inflated transparent plastic enclosure to protect them from both rain and dust, as well preventing birds from getting in harm’s way. the photovoltaic chips are mounted on micro-structured layers that pipe water within fractions of them in order to absorb the warmth. this method ensures the microprocessors remain at an operational temperature and is 10 times more effective than passive air cooling systems. scientists estimate that the working lifetime for the ‘HCPVT’ structure is up 60 years with proper maintenance.




electrical and heat energy provided by the HCPVT
video courtesy of IBM research







‘the direct cooling technology with very small pumping power used to cool the photovoltaic chips with water is inspired by the hierarchical branched blood supply system of the human body,’ said dr. bruno michel, manager, advanced thermal packaging at IBM research.

sunflower-solar-panels-designboom04
capable of generating 12 kilowatts of electrical power and 20kw of heat







‘with the HCPVT we are ushering in a new generation of solar energy technology,’ said dr. gianluca ambrosetti, head of research, airlight energy with responsibilities for building the new spinoff. ‘not only is the system affordable, but it will create jobs where it is installed because many of the materials will be sourced locally. we expect to partner with firms around the world to bring a commercial version to market by 2017.’

sunflower-solar-panels-designboom05
the dishes are curved by a vacuum

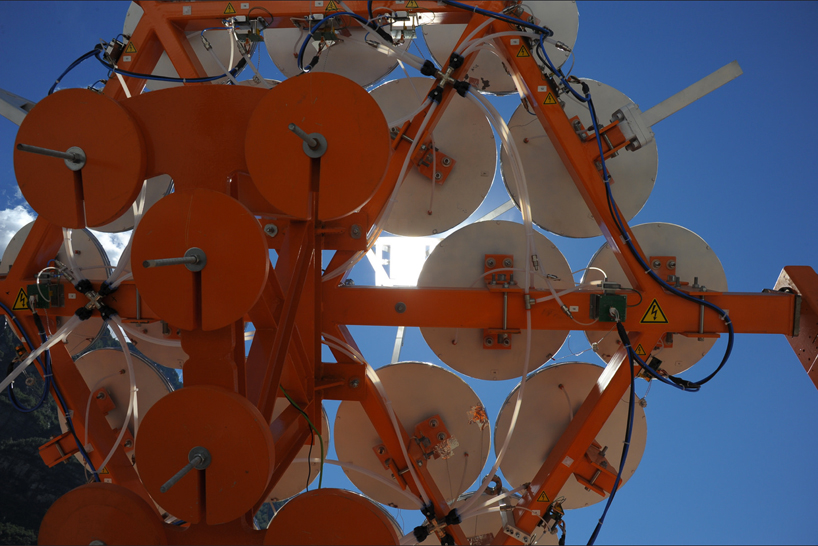

sunflower-solar-panels-designboom06



sunflower-solar-panels-designboom07
the mirrored dishes concentrates the sun radiation 2,000 times more than usual
