volvo V60’s pure tension: a portable solar-powered pavilion
a tensile membrane structure embedded with solar panels folds to fit into the new hybrid electric diesel car.
volvo V60’s pure tension: a portable solar-powered pavilion
all images courtesy synthesis design + architecture
los angeles-based synthesis design + architecture has designed a collapsible tensile membrane structure in form of ‘PURE tension’ for the new volvo V60. the pavilion was commissioned by volvo car italia and brought together the likes of buro happold and fabric images in the creation of an ultra-lightweight, rapidly deployable shelter and charger for the hybrid electric diesel car. in keeping with environmentally-minded measures and a dynamic dialogue between designers, engineers and fabricators, the experimental structure will be composed of recyclable high-density polyethylene and embedded with a pattern of photovoltaic panels that harness sunlight to charge the V60 model. the car is meant to ‘plug’ into the pavilion and co-opt the energy collected that day, in effect reframing the stagnation of the typical trade show shelter into a more integral part of the car’s sustainable features. the flexible membrane is informed by the frei otto’s pioneering fabric constructions and manifests a structural skin as a sequence of hyperbolic curves held in tension by the a carbon fiber tube ring that allows the structure to perfectly fit in the trunk of the car upon disassembly. both the car and pavilion will premier in rome in september 2013.

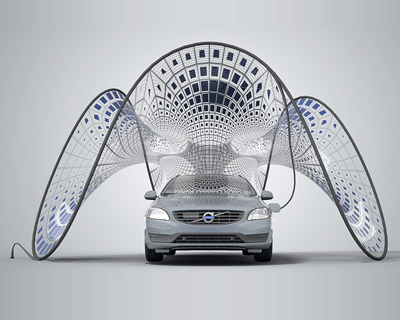

the tensile membrane is embedded with photovoltaic panels in a graphic pattern
elevation view of the pavilion
longitudinal section of the flexible, high-performing membrane
elevation shows a skin embedded with solar-harnessing technology
exploded axon of the set up
construction, joinery, and disassembly process
rendered plan
project info:
program: pavilion
location: rome, italy
client: volvo car italia
year: 2013
status: 1st place 2013 switch to pure volvo pavilion design competition, completion in september 2013
design team: alvin huang, filipa valente, chia-ching yang, behnaz farahi, yueming zhou, joseph sarafian
structural engineering: buro happold los angeles (greg otto, stephen lewis, ron elad)
fabrication: fabric images (jason gilette, leo boczar, sam lugiano)
