japanese practice naf architecture and design was commissioned to complete an interior renovation of a 4-story, 17 year old home in a dense neighborhood of tokyo. the layout of the existing rooms made little sense, especially considering that the new house was to serve a family of three with a chiropractic clinic. in order to consolidate the bedrooms, entertainment rooms and businesses in one pre-existing form, a timber box, dubbed a ‘switch box’, was installed in the very center of the building acting as a spatial intersection for all functions. accepting visitors at the front door, the switch box acts as a waiting room to the chiropractor’s office, the vertical circulation to the living room, bedrooms, and karaoke room in the basement.


ground level
image © toshiyuki yano







the remainder of the structure by contrast is rendered in a stark white color, including walls, ceilings and structural elements. the box, made of deck wood, serves an important role in circulation but also interacts with every other space. the roof is peeled back, allowing natural light from the skylights to reach the ground levels. the top of the box reaches high enough to serve as a desktop for the living room area, and smaller areas off to the sides of the box allow for noise transmittance while blocking visual connections- allowing for privacy.


(left) inside the timber switch box
(right) view from above
image © toshiyuki yano






image © toshiyuki yano






top level – top of box serves as a desk
image © toshiyuki yano






entrance into the box
image © toshiyuki yano






office space
image © toshiyuki yano

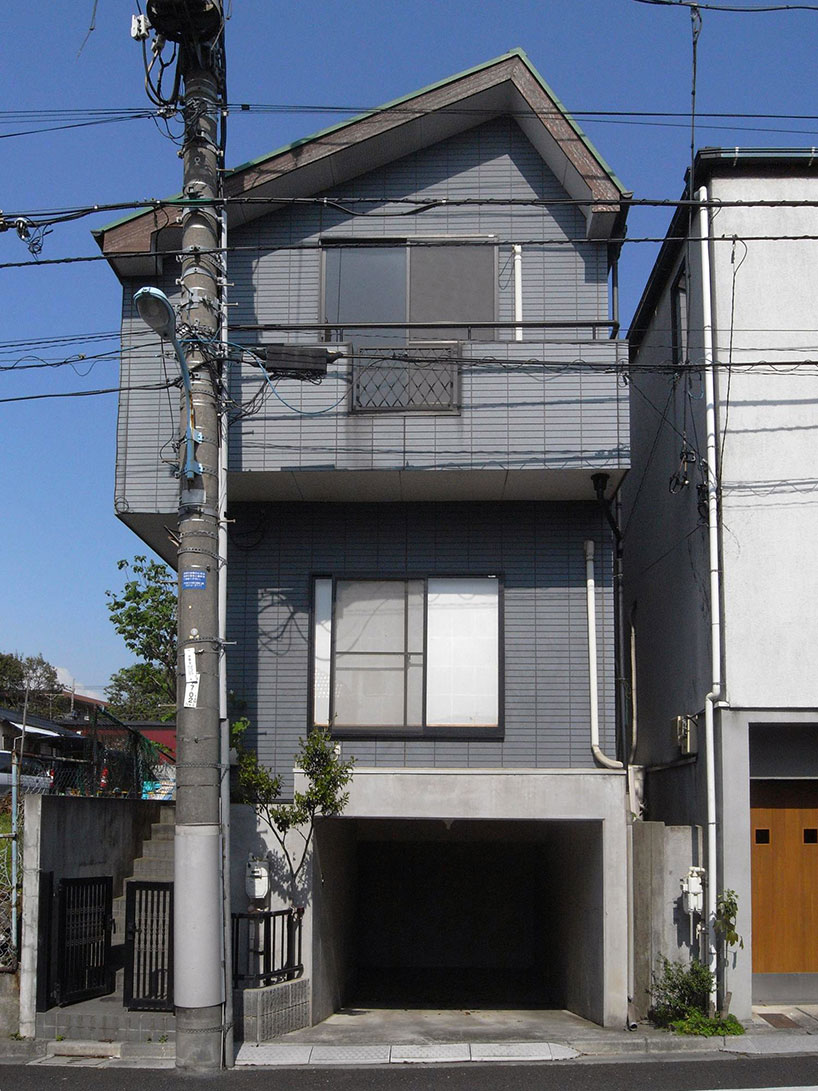

original house
image © toshiyuki yano






original house
image © toshiyuki yano






diagrammatic concept






section







project info:





name of the project: switch box in house
location: suginami ward, tokyo
category: detached house
structure: wood construction
maximum height: 8.859m
frontal road: 5.54m on the west
site area: 71.51m2
total floor area: 127.99m2
completion: desember 25, 2012
architect: akio nakasa(director) ,daisuke aoki
photographer : toshiyuki yano
